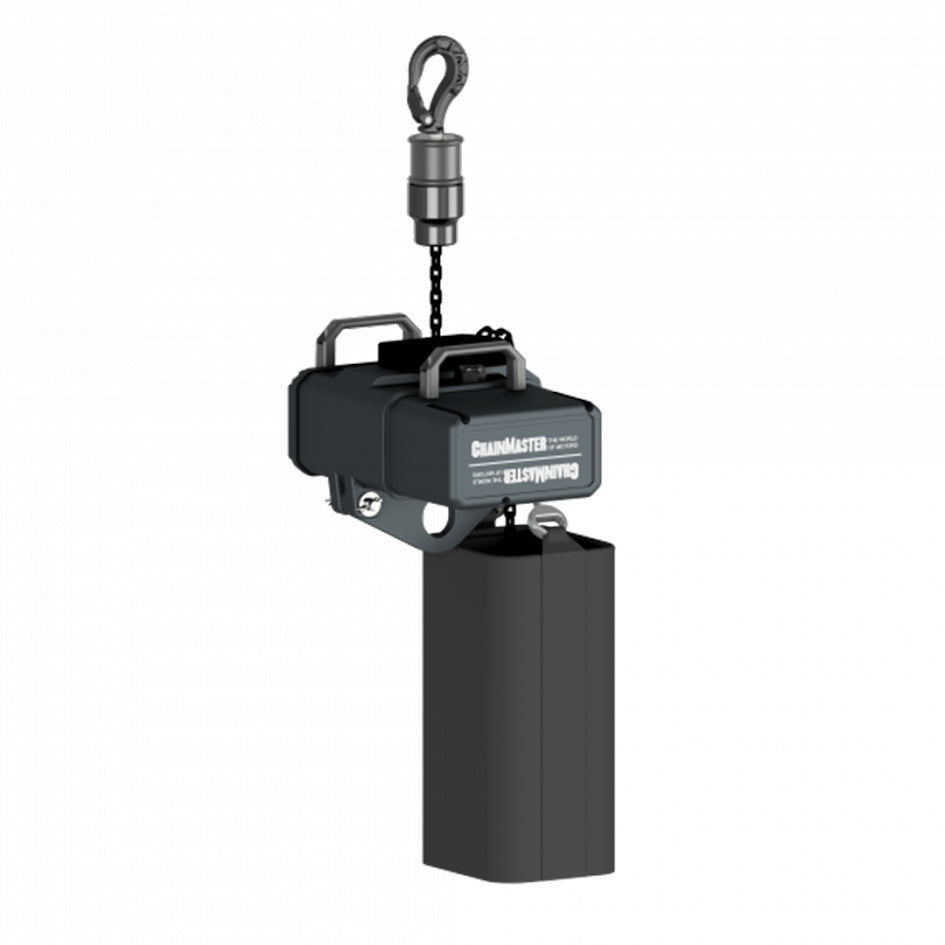

D8 – Compact Electric Chain Hoists - 320 KG Load

Name: D8 – Compact Electric Chain Hoists - 320 KG Load
Brand: ChainMaster
SKU: CM-910321
Price: 6592.00 AED
Availability: InStock

Brand: ChainMaster

SKU: CM-910321

The compact form, robust aluminium casing and low unladen weight of CHAINMASTER rigging lifts guarantee optimal handling in day-to-day use. An extensive selection of optional fittings and accessories allow worldwide use in line with the widest range of requirement criteria. In combination with CHAINMASTER control systems, we can offer all users – even for special applications – an all-in-one solution that leaves nothing to be desired.

Product variants

Low stock, only 4 items left.

Need Help:

Pairs well with

D8 – Compact Electric Chain Hoists - 320 KG Load

Dhs.6,592.00

Technical Specifications

Description

Product Features:

Climbing- or Standard Suspension
Direct- or Contactor Control
Light and compact Housing
Precise Chain Guide
5‑Pocket Chain Wheel
Textile Chain Bag
DC Brake
Patented Friction Clutch
Colour black RAL 9005

Available in chain length of:

D8 1000 Kg - 18.75 m
D8 1000 Kg - 25 m
D8 500 Kg - 18.75 m

D8 Description:

Direct Control 400V, 3ph, 50Hz
Cable gland on brake side
1m Cable with CEE-16/4
Chain acc. EN 818-7-DAT (mm): 7x22
Chain acc. EN818-7 DAT
Weight of the chain (kg/m): 1,1
For lifting height (m): approx. 18,25
Black / grey phosphated
Chain bag 5,2/25 SK - 7/19
Dimensions: 120x190x450mm
Dynamic safety factor for chain: min. 5:1
Precise chain guide with 5-pocket chain wheel
Patented friction clutch for overload protection,
Friction clutch is not in the load path
Chain falls: 1
Load hook: 1-fall / turnable
Suspension: suspension plate
Mounting position: climbing & stationary
Handles (2 pcs) mounted - 100 mm
UL listed plastic handle
Protection level: IP 55
Weight without chain (kg): approx. 30,5
Motor power (kW) : ca. 0,75
Current consumption (A): ca. 2,97
Mechanism class / FEM9.511: 1BM / 25% ED
Color: black, RAL 9005
