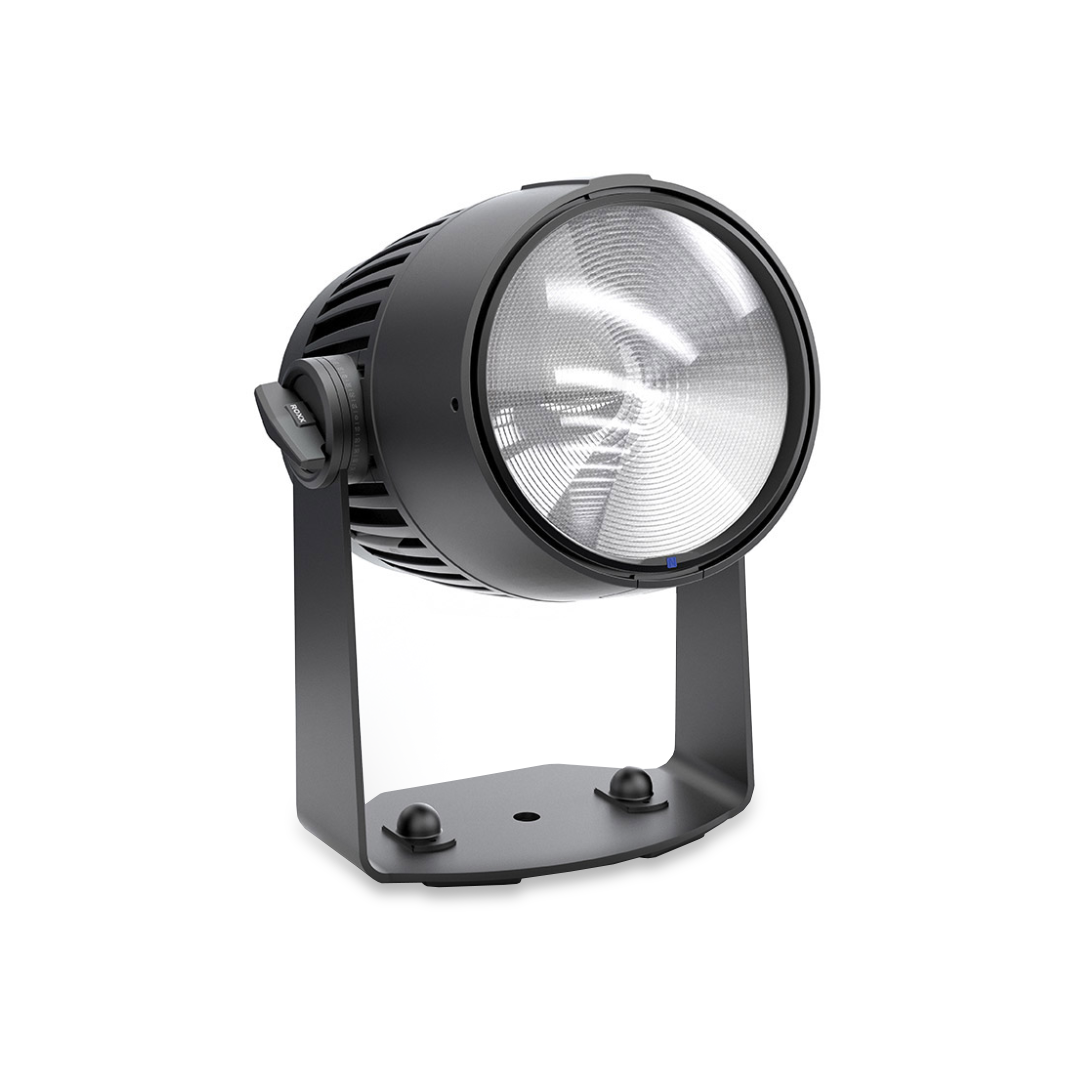

E Show TW+ Entertainment LED PAR Tunable White +Colors

Name: E Show TW+ Entertainment LED PAR Tunable White +Colors
Brand: ROXX
SKU: 11202001
Price: 7114.11 AED
Availability: InStock

Brand: ROXX

Categories: Theatrical LED Pars

SKU: 11202001

The E. SHOW TW+ (Tunable White Plus) convinces in every sort of application with excellent white tones and a wide color range due to its 6 color LED engine. The addition of Amber, Lime and Cyan extends the color spectrum by 15%, which immensely increases the light quality and color variety of the fixture. To ensure consistent colors throughout all fixtures and excellent whites as defined by the black body curve, ROXX® Color Calibration performs color matching across the entire range. Thanks to the specially developed ROXX® R.LOK technology, the lenses can be changed easily and without any tools. This allows the beam angle to be conveniently adjusted, whether from 19°, 36°, 59° or elliptical 17°x24° and19°x57°.

Product variants

Available

Need Help:

Pairs well with

E Show TW+ Entertainment LED PAR Tunable White +Colors

Dhs.7,114.11

Technical Specifications

Description

Photometrics

LED expected lifetime: 50,000 hours
Lightsource: 1x200W RGBALC
Type of optical system: reflector + interchangeable lens plates
LED PWM Frequency: selectable 800Hz, 1200Hz, 2000Hz, 3600Hz, 12kHz, 25kHz
Beam angles (50%): 19° (with narrow lens) 36° (with medium lens) 59° (with wide lens) 17°x24° (with elliptical narrow lens) 19°x57° (with elliptical wide lens)
Maximum Field angles (10%): 36° (with narrow lens) 72° (with medium lens) 88° (with wide lens) 35°x46° (with elliptical-narrow lens) 43°x81° (with elliptical-wide lens)
Color temperature range: 2.000K – 10.000K
Efficancy (max): 49.8 lm/W
CRI/RA: 97
TLCI: 98
TM-30-15: Rf 96 / Rg 103
Luminous flux: 9049 lm
Illuminance Lux @ 5m (narrow lens): 1690 lx
Illuminance Lux @ 5m (medium lens): 471 lx
Illuminance Lux @ 5m (wide lens): 251 lx
Illuminance Lux @ 5m (elliptical-narrow lens): 1191 lx
Illuminance Lux @ 5m (elliptical-wide lens) 490 lx

Thermal Characteristics

Cooling: Active, Forced Air, Temperature-regulated
Humidity (max.): 95%
Temperature range, operating: -20°C to 45°C
Temperature range, Start-up -20°C to 50°C
Temperature range, Storage -20°C to 80°C
Thermal Protection Automatic over temperature protection

Electrical Data

AC power, max.: 90 – 285V 50/60Hz
AC Power, nominal: 100 – 260V 50/60Hz
Electrical Protection: Overload protection with automatic recover
Max Inrush Current: 50A
Max power consumption: 220W
Typical power consumption: 153W
Standby power: 6.7W
Max power thru @ 100 V: 8A
Max power thru @ 230 V: 8A
Power factor: 0.92 PF (230 V) / 0.99 PF (100V)
Power Supply Unit: Inbuilt auto-ranging electronic switch-mode
Power Linking: 4 units @ 120 V; 8 units @ 230 V

Operator & Controller

DMX channels: 3/10CH HSI, 3CH CCT, 3/6/9/11/14CH RGB, 6/12/13/20CH DIRECT DMX modes 12
Protocol: CRMX, W-DMX™ G2, W-DMX™ G3, W-DMX™ G4, W-DMX™ G4SUSITT DMX512A RDM ANSI E1.20 Bluetooth (Low Energy)

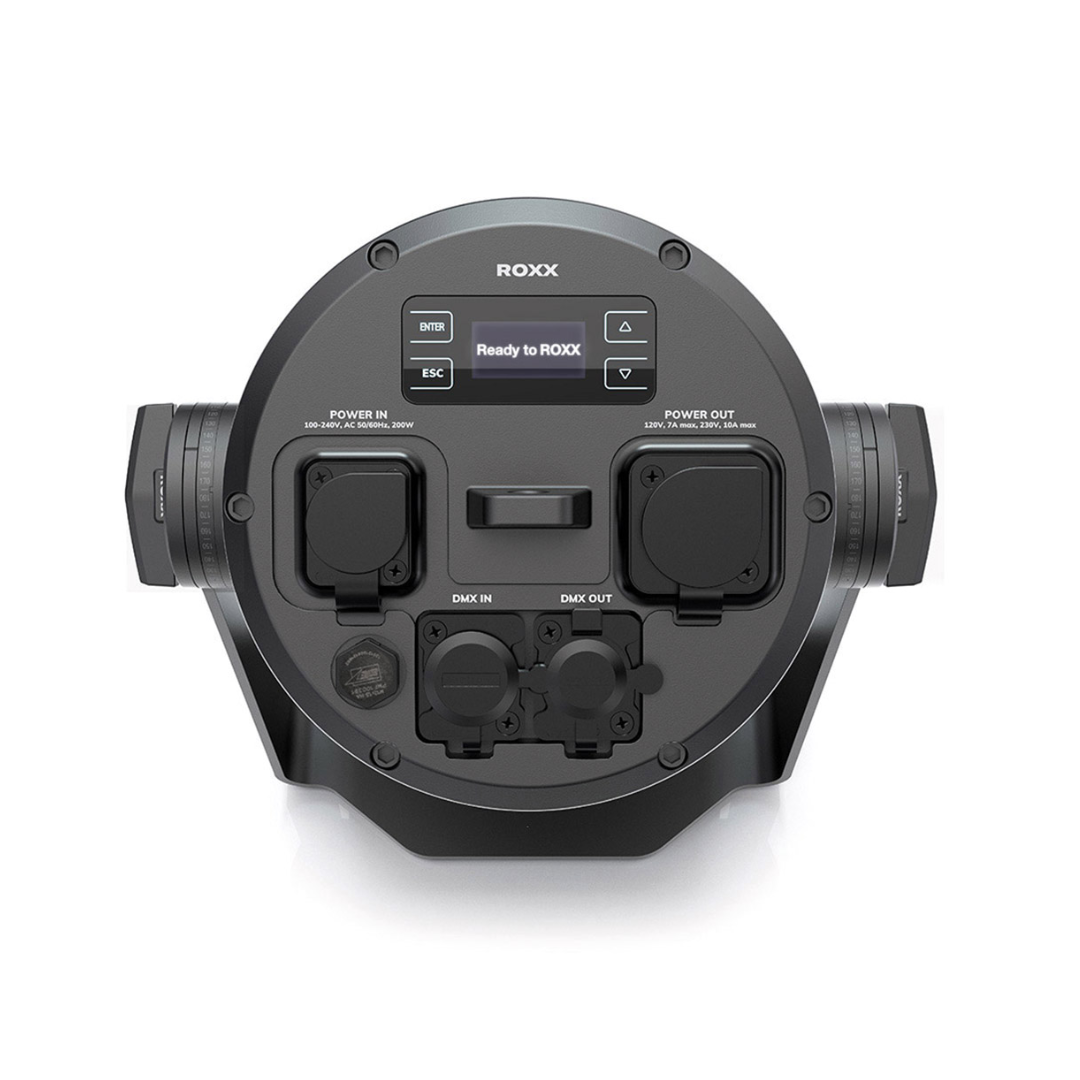

Setting and addressing: OLED graphical display / 4 controls RDM ANSI E1.20
Standalone mode: Auto Program, Editor, Color Macro, Quick Color, Tunable White, User Color, Timer
Wireless DMX: Lumen Radio with RDM (CRMX)
Indicator: OLED graphical display
Controls: 4 touch sensitive, backlighted controls
Strobe: 0-20Hz
DMX I/O: IP65 XLR 5-pin male/female
Power I/O: TRUE1 compatible input & link-thru sockets

Dimensions & Weight

IP: Class IP 65
Net Dimensions (w x h x d): 261 x 311 x 258 mm
Physical Head Straight Up Height: 339 mm
Net Dimensions inches: 10.3 x 12.2 x 10.1
Net Weight: 5.7 kg

Included / Optional

Included items: 2x radiator caps for pendant installation
2m power cable
