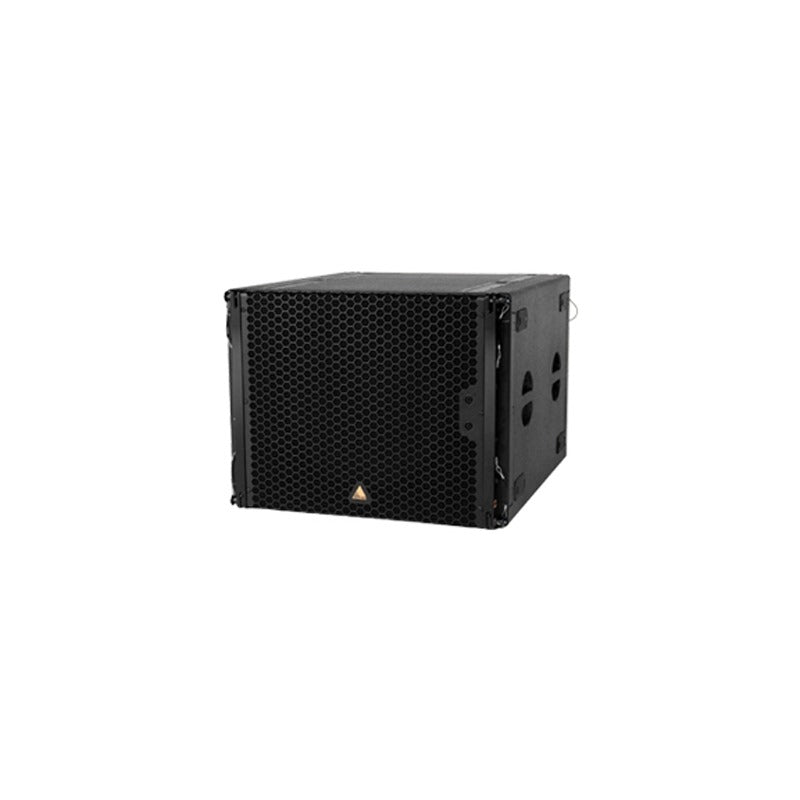

E119 - Light Weight Long Excursion 19'' Subwoofer

Name: E119 - Light Weight Long Excursion 19'' Subwoofer
Brand: Adamson
SKU: 994-0003
Price: 17523.71 AED
Availability: OutOfStock

Brand: Adamson

Categories: Passive Subwoofers

SKU: 994-0003

The E119 Subwoofer was developed to bolster the low-end of the E-Series line of products. The enclosure is loaded with a light weight, long excursion, 19” SD19 Kevlar^®Neodymium driver utilizing Adamson’s Advanced Cone Architecture and Symmetrical Drive Technology. The driver employs a dual 5” voice coil for exceptional power handling, with a dual-spider suspension system for extra stability even under extreme excursion. It is mounted in an ultra-efficient front-loaded enclosure, designed to reproduce clean, musical low frequency information. Users will appreciate the lower fundamental notes of this design.

Product variants

On Demand

Need Help:

Pairs well with

Technical Specifications

Description

The cabinet construction uses marine grade birch plywood as well as aircraft grade steel and aluminum, and is equipped with four Speakon™ NL4 connectors, two parallel In/Out rear plugs and two dedicated cardioid input connecters in the front. The integrated rigging system allows for either 0° or 3° splay between adjacent cabinets. The E119 can travel on installed casters, or on a 3-high covered dolly.

Specifications:

Frequency Range (+/-3 dB): 30 Hz - 100 Hz
Maximum Peak SPL**: 138
Components LF: SD19 19" Kevlar® Neodymium Driver
Nominal Impedance LF: 8Ω
Power Handling (AES / Peak) LF: 1600 / 6400 W
Rigging: Integrated Rigging System
Connection: 4x Speakon™ NL4: 2x Rear Parallel (Pins 1 +/-) and 2x Front
Cardioid Input (Pin 2 to 1)
Height Front (mm / in): 572 / 22.5
Width (mm / in): 749 / 29.5
Depth (mm / in): 889 / 35
Weight (kg / lbs): 66.5 / 146.5
Supported Processing: Lake

**12 dB crest factor pink noise at 1m, half space, using specified processing and amplification

Downloads

E119_Datasheet.pdf
