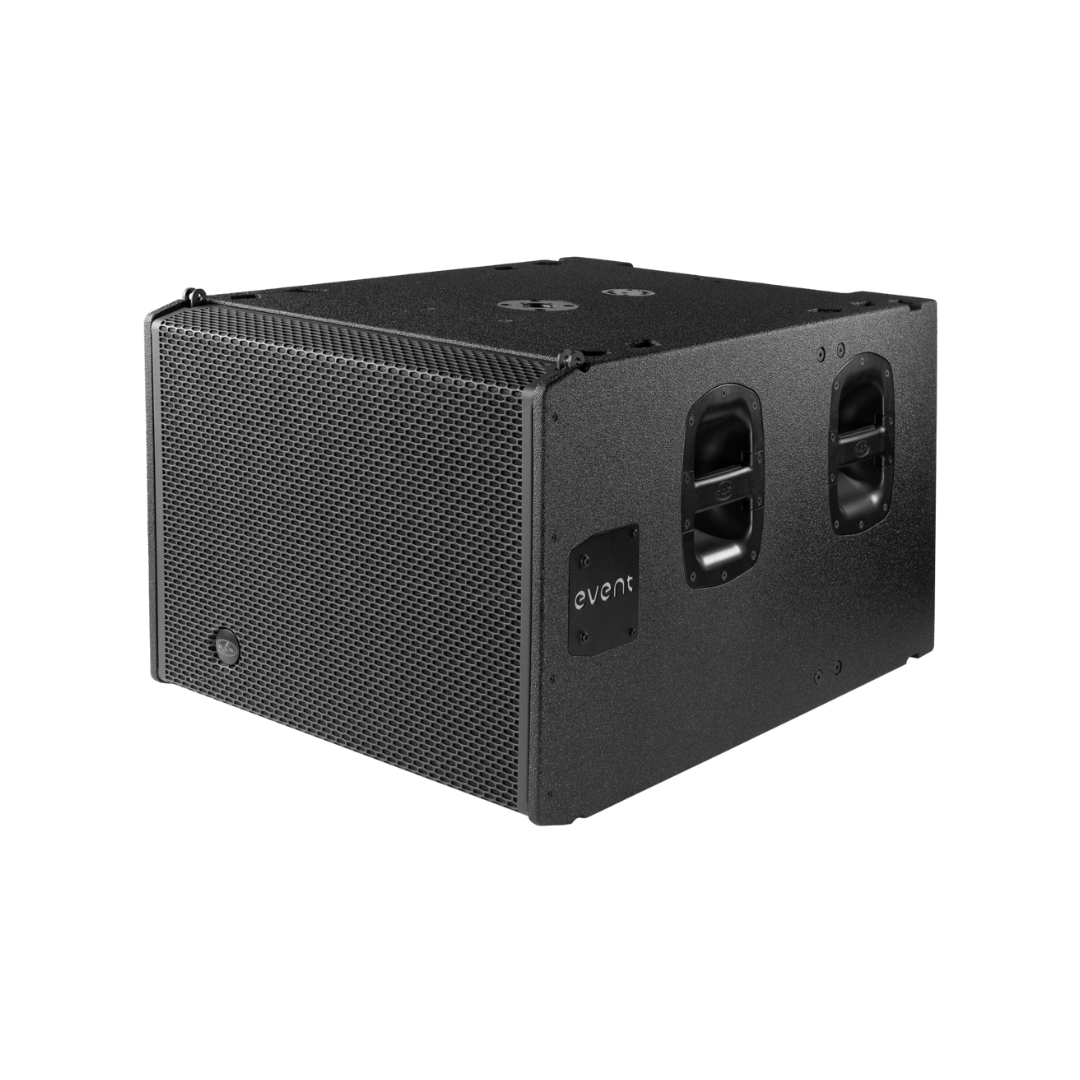

Technical Specifications

Description

Performance

  • Frequency Range (-10 dB) 35 Hz – 125 Hz
  • Maximum Peak SPL at 1 m: 134 dB

Electronics and Connectors

  • Nominal Amplifier Power (continuous): 1000 W
  • Nominal Amplifier Power (peak): 2000 W
  • Input Type: Balanced
  • Input Impeadance: 20 kohms
  • Input Sensitivity: 1.95 V (+8 dBu)
  • Audio Signal Input Connector: 2 x Female XLR
  • Audio Signal Loop Thru Connector: 2 x Male XLR
  • Control: DAScontrol™
  • AC Output Connector: powerCON NAC3MPB
  • Current Draw: 230 V / 115 V 2.1 A/4.2 A

Enclosure

  • Enclosure Construction: Birch Plywood
  • Enclosure Geometry: Rectangular
  • Rigging: Captive Rigging System
  • Finish: ISO-flex Paint
  • Color: Black
  • Dimensions ( H x W x D ): 510 x 635 x 840 mm20,0 x 25,0 x 33,0 in
  • Net Weight: 43,0 kg ( 94,8 lb )

Components

  • LF Driver: 18FWN

Shipping

  • Carton Dimensions ( H x W x D ): 560 x 690 x 920 mm22,0 x 27,2 x 36,2 in
  • Shipping Weight: 49,0 kg ( 108,0 lb )
