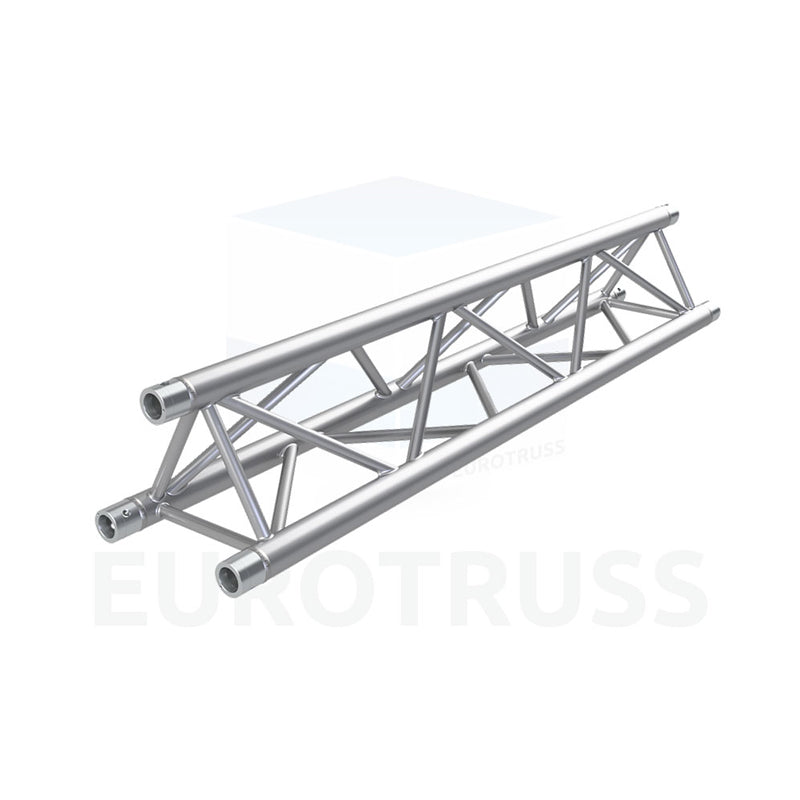

FD33 straight elements lend themselves to use as span exposed to bending stress, resistant span suitable for bracing widths of up to 12m at medium loads. These truss may also be employed as vertical supports. Combined with FD34, they possess a broad range of applications. These elements allow constructions in up to three levels, thus permitting almost limitless possibilities for the technical realization of creative ideas. Made with the fast connection system and tested according to the Din 4113/VBG 70 specifications by the TuV.

Featured products

• Triangular Truss with equilateral profile geometry for small and medium loads
• Tolerance free connection with conical connector
• High Stability aluminium alloy
• Compatible with FD34
• Optimum manufacturing quality
• TuV Tested
• Available in any non-standard length and shape
• FD33
• Height: 258
• Width:290
• Weight:~4.5kg/m
• Main tube:50x2 mm
• Braces:20x2 mm
• Material:AlMgSi 1 F31/EN AW 6082 T6
• Connection System:Eurotruss FD
