Technical Specifications

Description

Source

  • Light source: 88 x 20 watts, RGBW LEDs
  • LED life expectancy: 50,000 Hrs.
  • CRI <80

Optical System

  • Beam angle: 20°

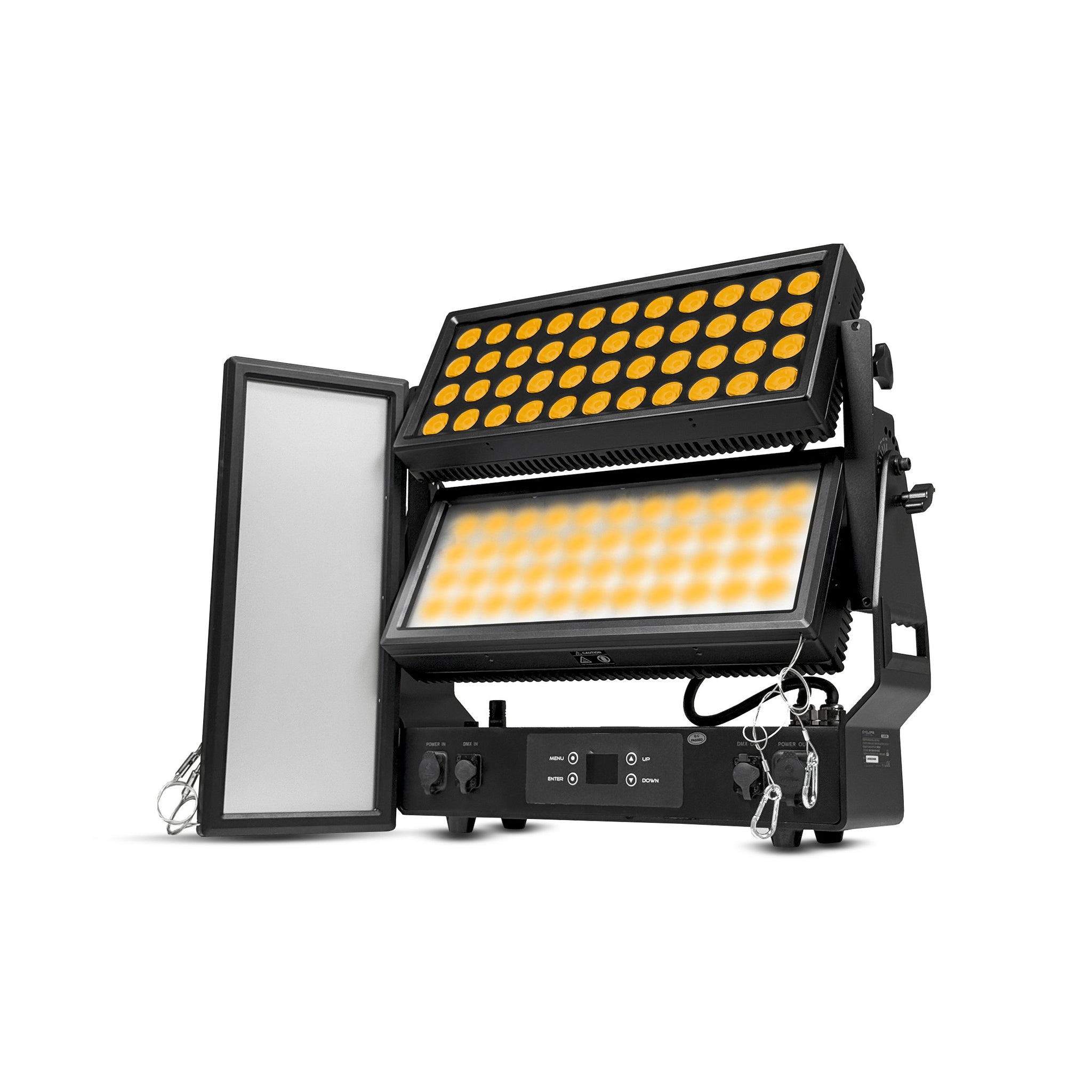

  • 40° with a magnetic diffuser filter
  • Light output: 146000 Lux @ 2m @ 20°
  • Individual angle rotation adjustment for each head

Dynamic Effects

  • Dimmer: 4 selectable dimming curves
  • Color mixing: RGBW
  • Strobe effect
  • Built-in effects

Control & Programming

  • Control protocols: DMX, Master-Salve, Auto Run W-DMX™ by Wireless Solution
  • Display: TFT displayer with 4 buttons
  • Control channels: 2, 3, 4, 9, 12 CHs

Electrical

  • Input voltage: 190-264V/50-60Hz
  • Power consumption: 1600 watts
  • Power supply: Auto-ranging electronic switch-mode

Connections

  • DMX connections: 3 pin XLR In/Out male and female
  • Power connections: IP Power In/Out cable

Physical

  • Dimensions: 602 x 430 x 437mm
  • Net weight: 23.5 Kg
  • Color: Black
  • Painting: Anti-salt and Anti-UV
  • Housing: Die-cast Aluminum
  • IP rating: 65
  • Operating temperature: -40°C/45°C
