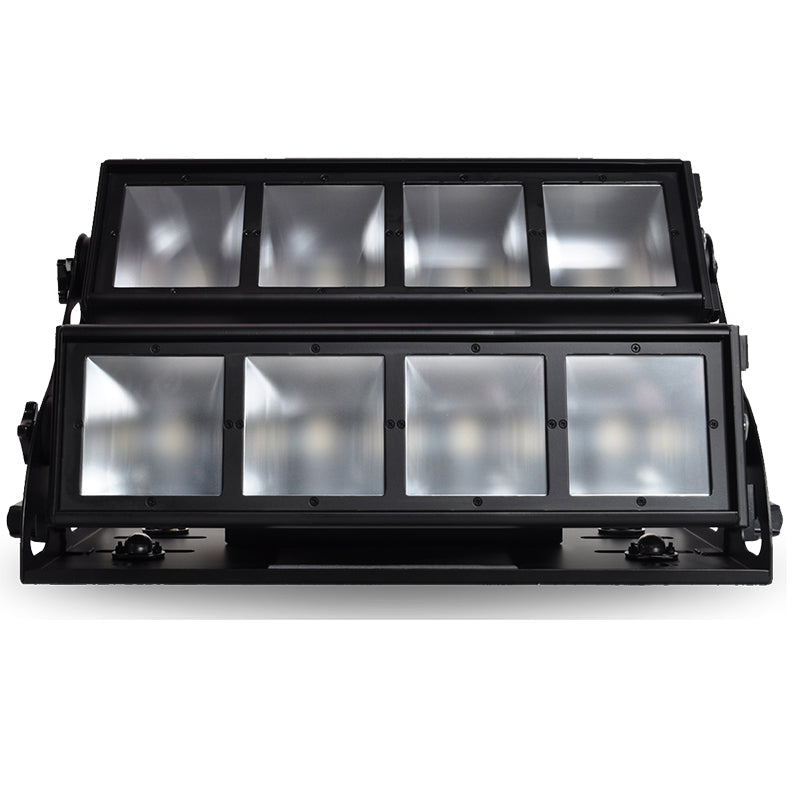

FLASH 8 is powerful rugged LED fixture designed as one of the most powerful cyclorama fixtures with RGBWA color mixing. It delivers a homogeneous color mixed wash output with additional amber LEDs to achieve any color temperature or tint required. With a beam angle of 58°, it can cover large and high areas in a smooth even wash.

SOURCE

• Light source: 32 x 2.34 watts Green, 32 x 2.34 watts Blue, 16 x 2.34 watts White, 16 x 2.34 watts Amber
• LED life expectancy: 50,000 Hrs.

OPTICAL SYSTEM

• Beam angle: 58°
• Light output: 1800 Lux @ 2m @ 58°
• Peak Intensity: 8400 cd

DYNAMIC EFFECTS

• Color mixing: RGB
• Strobe: 0-20Hz
• Built-in color and dynamic macros

CONTROL & PROGRAMMING

• Control protocols: DMX

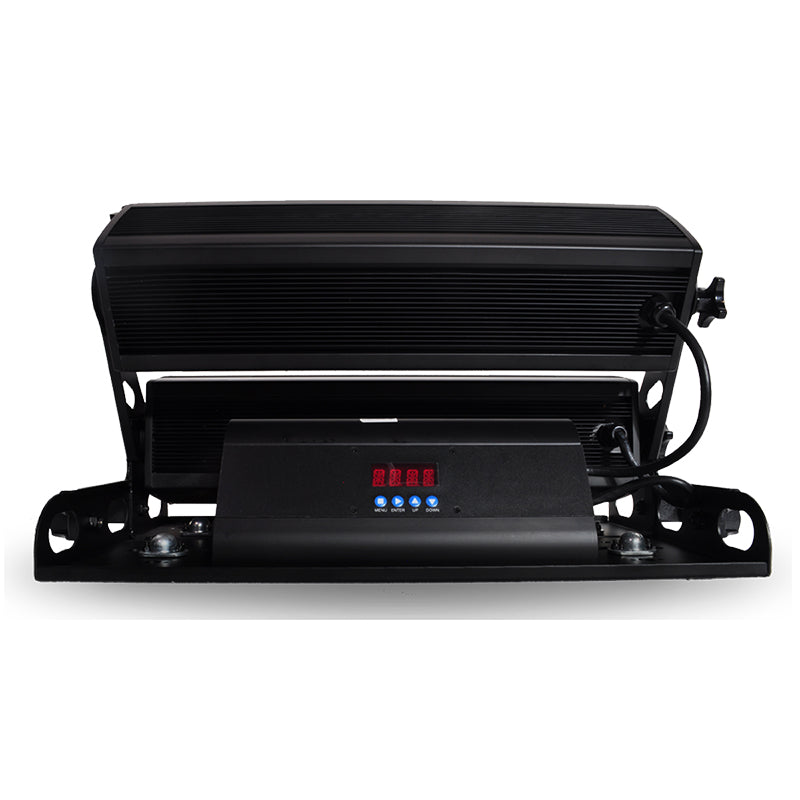

• Display: for Auto, Static color and custom control
• Control Channels: TOUR, TR16, ARC1, ARC1.D, ARC.2, ARC.3,AR3.D, AR3.S,HSV, PIX.1, PIX.3 CHs

 ELECTRICAL

• Input voltage: 100-240V/50-60Hz
• Power consumption: 310 watts

CONNECTIONS

• DMX Connections: 3 pin XLR In/Out Male and Female
• Power Connections: PowerCon In/Out

PHYSICAL

• Dimensions: 622 x 310 x 327.5mm
• Net weight: 15 Kg
• Color: Black
• Housing: Aluminum
• Operating temperature: -20°C/45°C
