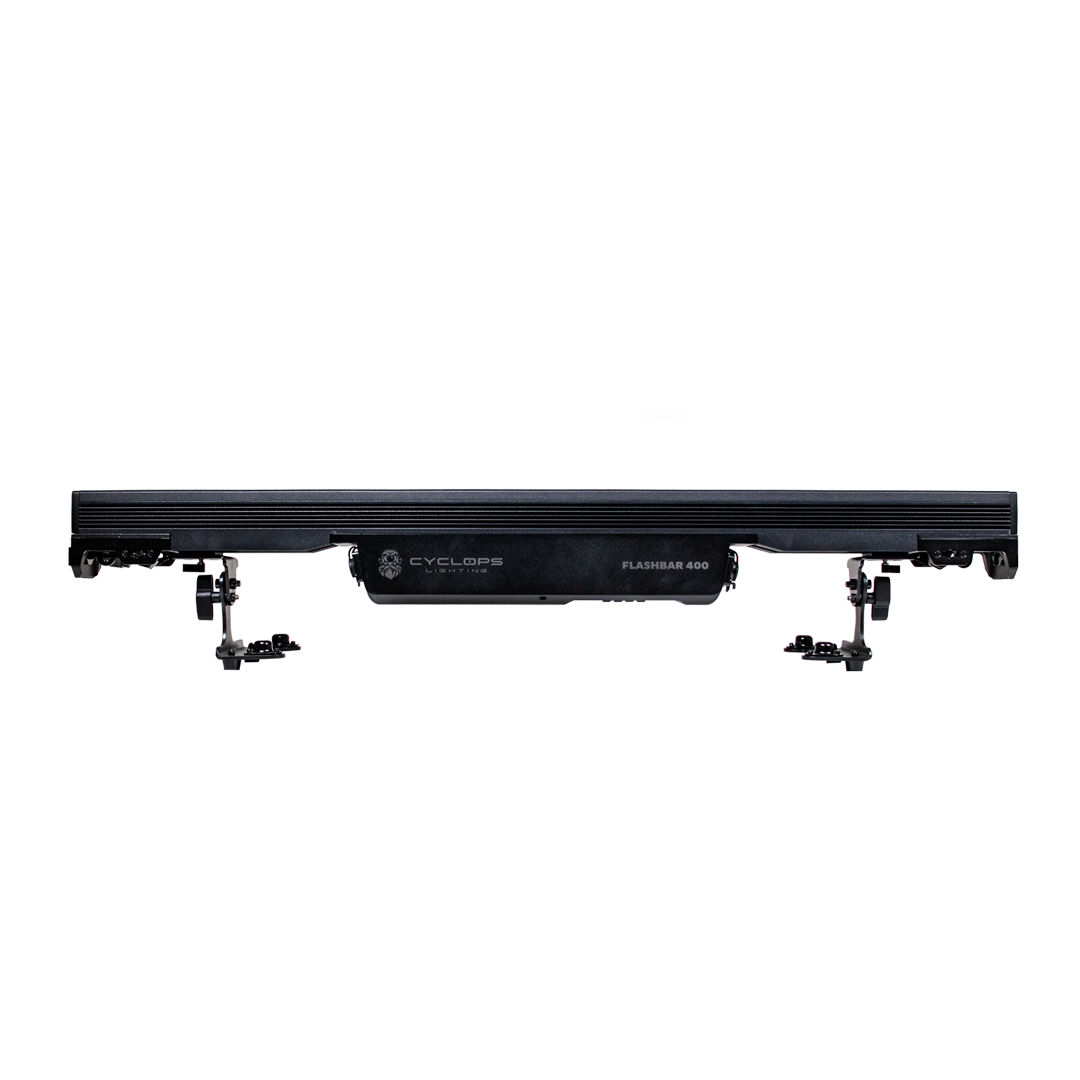

FLASHBAR 400 - IP65 16x20W RGBL Wash, FX & Pixel Mapping Bar

FLASHBAR 400 - IP65 16x20W RGBL Wash, FX & Pixel Mapping Bar

Name: FLASHBAR 400 - IP65 16x20W RGBL Wash, FX & Pixel Mapping Bar
Brand: Cyclops Lighting
SKU: FLASHBAR400
Price: 3394.64 AED
Availability: InStock

Brand: Cyclops Lighting

Categories: LED Bars, Strobes

SKU: FLASHBAR400

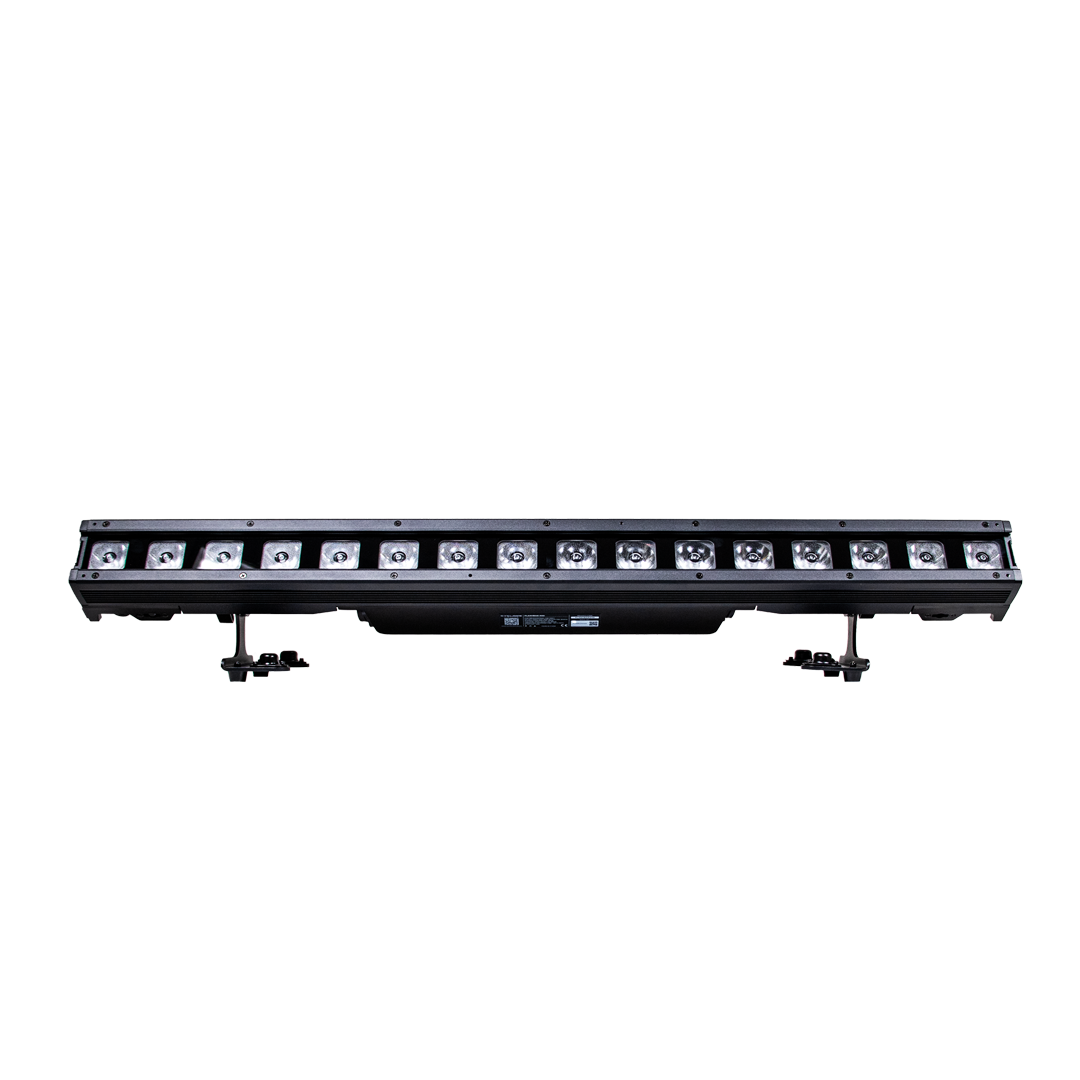

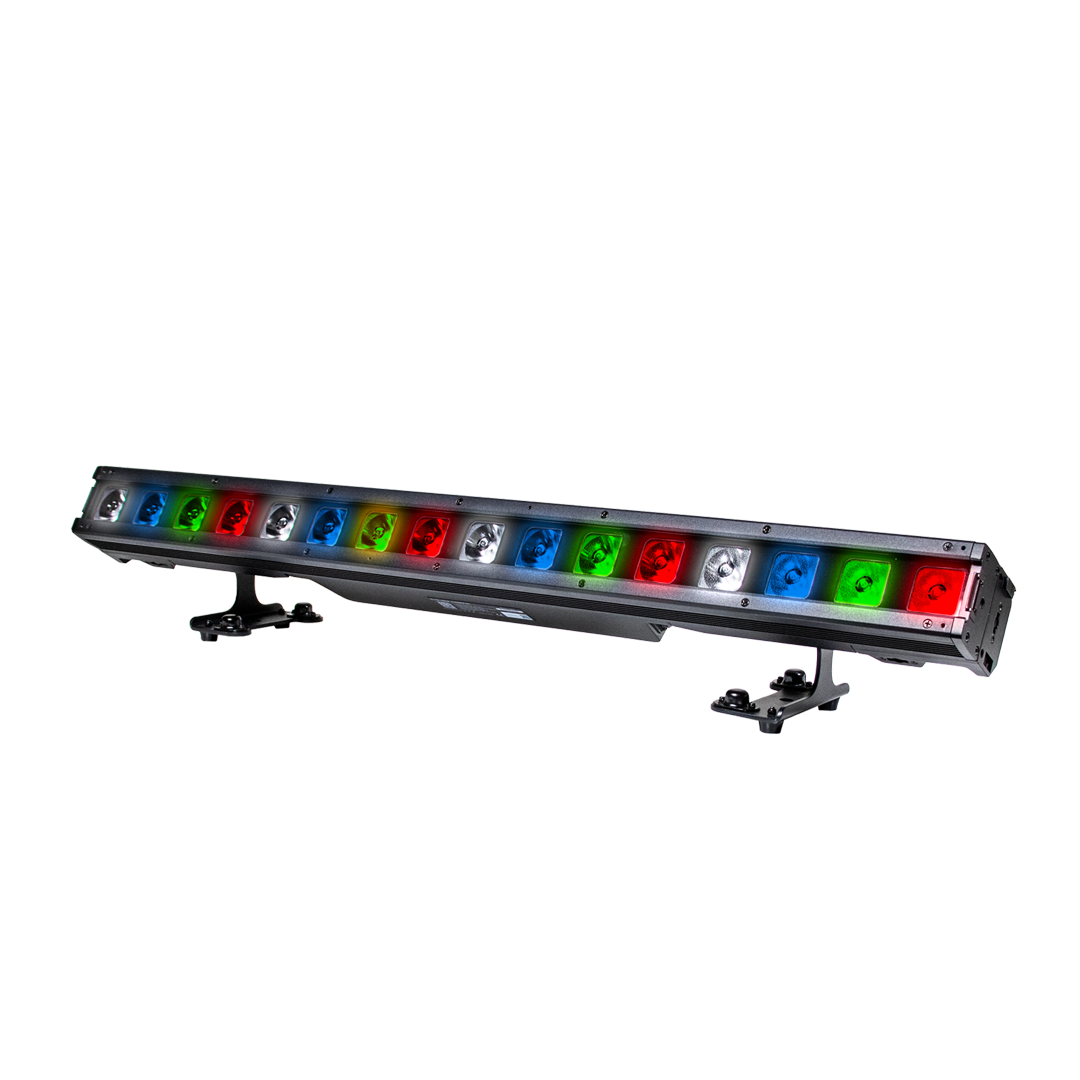

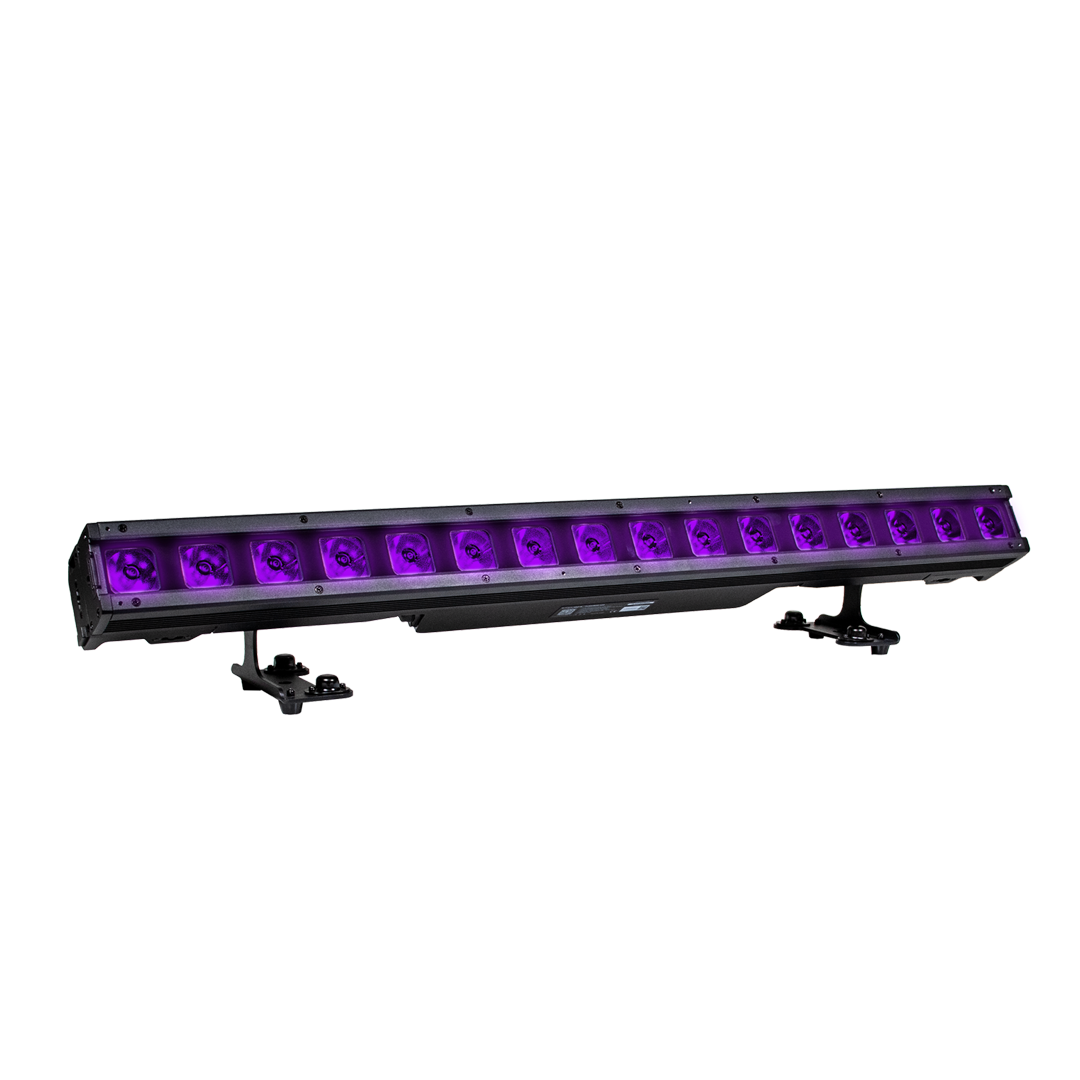

FLASHBAR 400 is a versatile, rugged, and high-output LED wash bar designed for the most demanding professional environments. Featuring 16 powerful 20W RGBL LEDs, this fixture goes beyond standard RGBW mixing to deliver a superior color spectrum, exceptionally rich ambers, and high-quality white tones ranging from 2700K to 8000K.

Built for both indoor and outdoor excellence, its IP65-rated aluminum housing ensures reliable performance in any weather condition, making it the ideal choice for architectural highlights, large-scale festivals, and touring stages. The precision-engineered 12° beam angle provides punchy, long-throw beams, while its advanced pixel-mapping capabilities allow for intricate, dynamic visual effects and seamless light-art installations.

Product variants

Need Help:

Pairs well with

FLASHBAR 400 - IP65 16x20W RGBL Wash, FX & Pixel Mapping Bar

Dhs.3,394.64

Technical Specifications

Description

SOURCE

Light Source: 16x20W RGBL 4-in-1 LED
Illuminance: 22,000 lux @ 2m / 5,000 lux @ 5m
Color Temperature: 2700K – 8000K
CRI: 75

OPTICAL SYSTEM

Beam Angle: 12°
Lens Spacing: Splicing error should be within 2mm

COLOR

Color Mixing: RGBL
Color Macro: 51 different kinds of colors
White Balance: Adjustable Red, Green, Blue and White (127 to 255)

DYNAMIC EFFECTS

Strobe Effect: 000–255 adjustable mode
Dimer: 16-bit
Dimmer Speed: 4 selectable speeds

CONTROL & PROGRAMMING

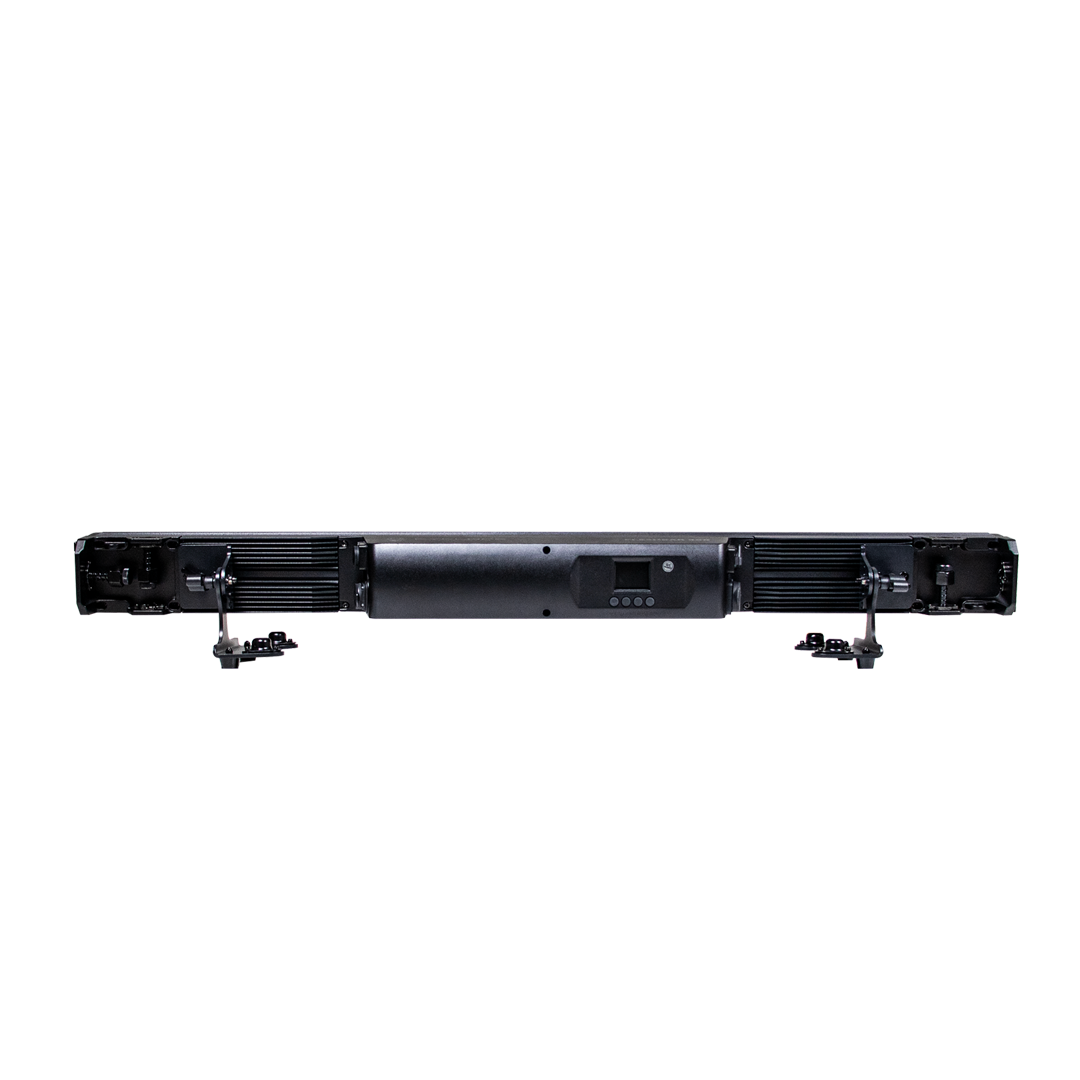

Display: Backlit TFT display
DMX Channels: 2, 8, 13, 18, 27, 32, 64, 73 CHs
Control Protocols: USITT DMX512/1990, RDM (ANSI/ESTA E.120), Optional WDMX
Dimming Curves: 4 selectable curves (Linear, Square Law, Inv. Squ. Law, S-Curve)
LED Frequency: Selectable PWM (600Hz to 18,000Hz)
Pixel Mapping: Supports pixel orientation settings for clear imaging/photography
Auto Mode: 22 built-in programs with adjustable speed (01–22)

CONNECTIONS

Power Connections: Seetronic PowerCon True One (In & Out)
DMX Connections: Seetronic DMX 5-pin (In & Out)

ELECTRICAL

Input Voltage: 100 – 240V / 50 – 60Hz
Power Consumption: 330W (at 230V nominal)
Standby Power: 11W
Typical Current: 1.17A (at 230V)

PHYSICAL

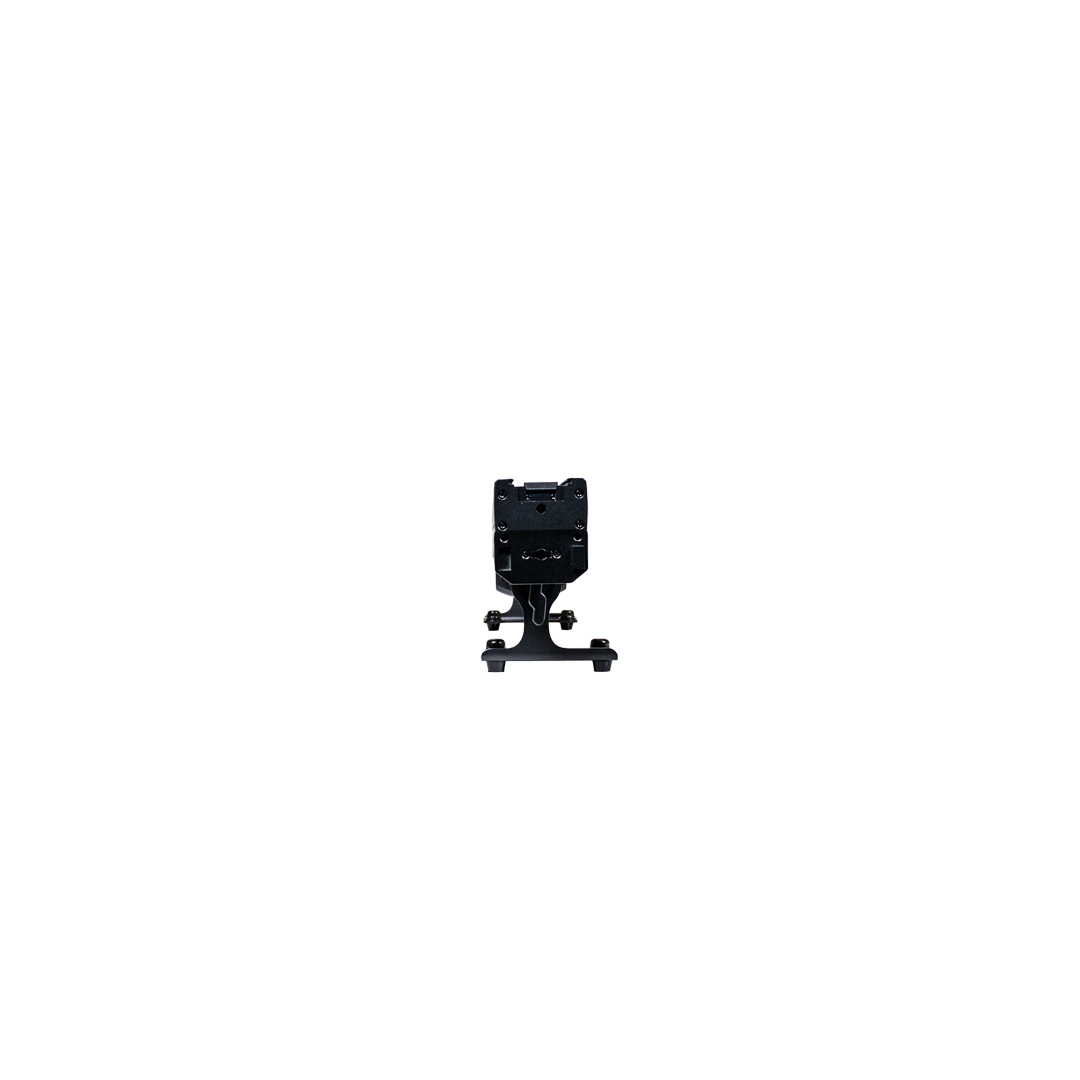

Dimensions: 1017mm x 105mm (Width Fixture) / 140mm (Width Bracket) x 169mm
Net Weight: 9.15 kg
Housing Color: Black
Operating Temperature: -40°C / 45°C
IP Rating: IP65

Downloads

DataSheet_FLASHBAR_400.pdf
