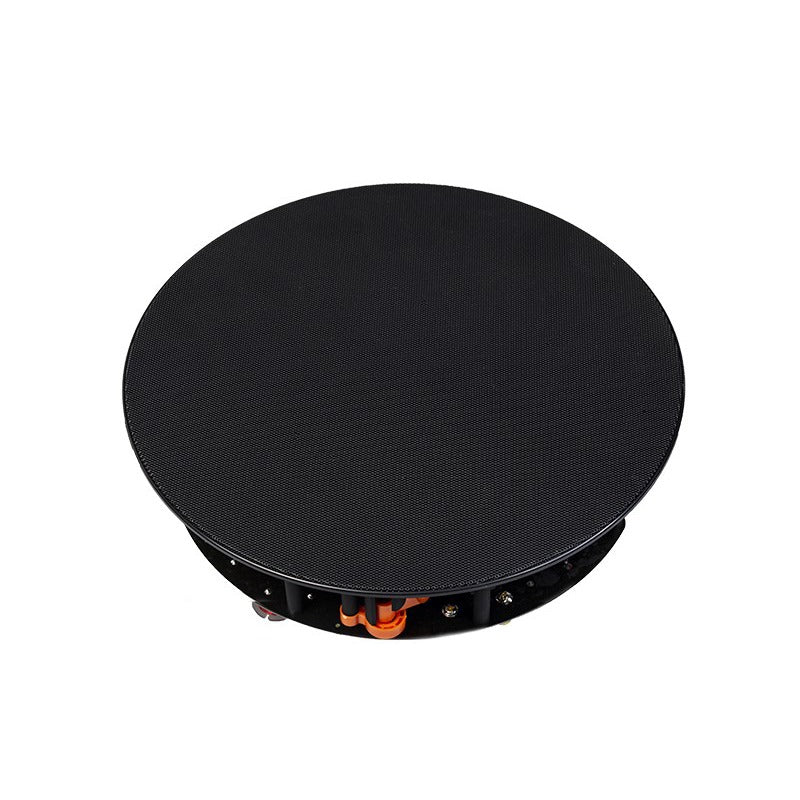

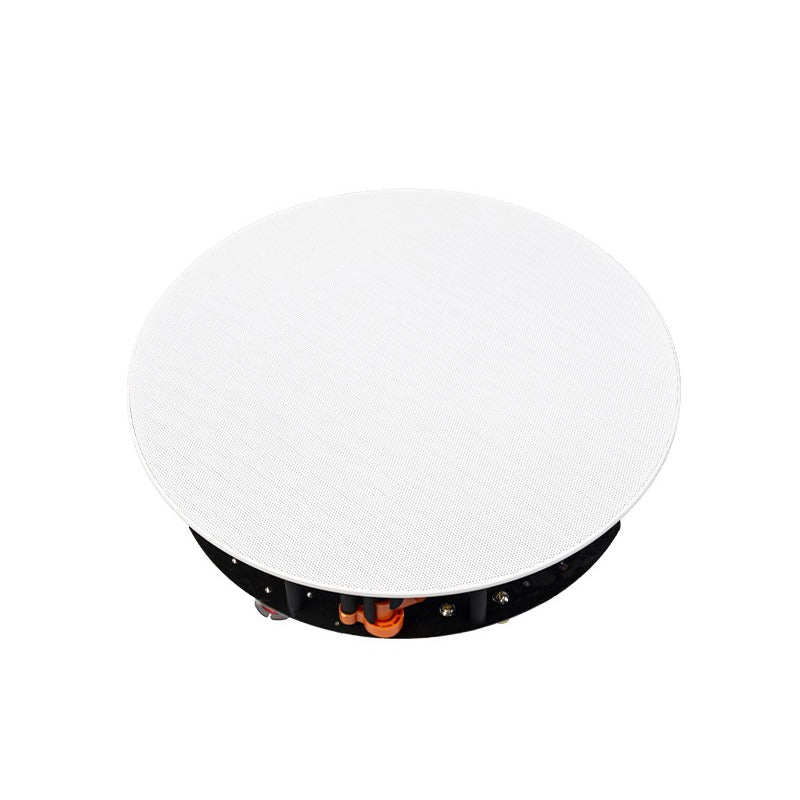

GCF8 - 8" In-Ceiling Round Speaker

SKU: GCF8

2-way full range passive speaker for ceiling and in-wall installation. Thanks to its 8" woofer, GCF8 delivers more bass and SPL than its 6" brother, making it the perfect choice for higher SPL sound distribution both in residential and commercial applications such as apartments, villas, home theaters, hotels, hospitals, bars and restaurants, corporate buildings.

Color: Black

Black
White

Version: GCF8 (80W 8 Ω)

GCF8 (80W 8 Ω)
GCF8T (70/100 V)

Product variants

Low stock, only 2 items left.

Need Help:

Pairs well with

GCF8 - 8" In-Ceiling Round Speaker

Black / GCF8 (80W 8 Ω)

Dhs.694.84

Technical Specifications

Description

GCF8 comes with a circular, frameless design grille, an orientable tweeter and is available in 8 ohm for small to medium-sized, hi-fi applications as well as in 70/100V version (GCF8T) for large scale distributed sound installations where a very high number of speakers is required.For best performance, depending on power/quantity needs, this speaker can be combined with any KGEAR amplifier (GA201, GA41/41L, GA43/43L, GA46/46L) and subwoofer (GS6, GCF8S, GWF8S).Available in black or white colour, the frameless magnetic grille can also be painted to match any environment.

GENERAL

Rated Power (@8Ω): 80WPeak power (@8Ω): 160WNominalPower (@100V):Impedance: 8ΩFrequency Range: 50Hz – 20KHz (-3dB average)Maximum SPL(1): 112dB (peak)Continuos SPL: 100dBCoverage:130° conical

TRANSDUCERS

1" titanium dome tweeter

AUDIO I/O

Gold plated push terminals

PHYSICAL OVERVIEW

Depth: 105 mm (4.1 in)Weight: 2.04 kg (4.5 lb)Material: ABSColors: White, Black
