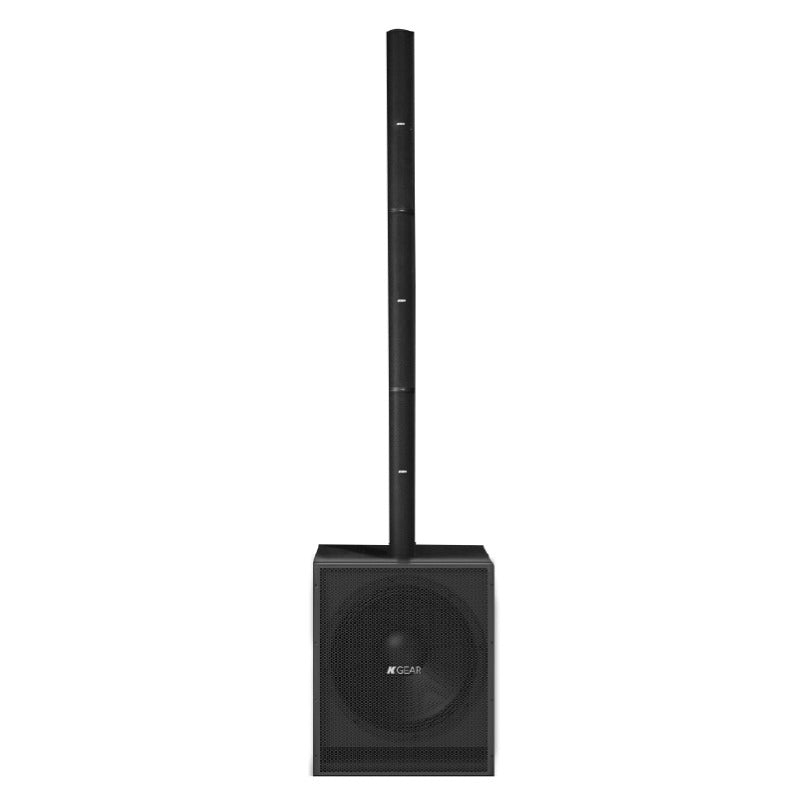

GP18A - Subwoofer + Column System (Active)

Name: GP18A - Subwoofer + Column System (Active)
Brand: KGEAR
SKU: GP18A
Price: 11559.32 AED
Availability: InStock

Dhs.11,559.32

Brand: KGEAR

Categories: Portable Speaker Systems

SKU: GP18A

Heavy duty 18” powered subwoofer combined with 3 modular 8x2” transducer array elements featuring PAT® K-array™ technology. It can drive up to 3 GP18 passive system in a stereo configuration. It features Powersoft™ DSP and power module with ethernet remote control and Armonia™ control software.

Designed for high performance outdoor/indoor applications both for rental and permanent installations for touring, live bands, auditorium, and clubs.

High performance to size/weight ratio featuring easy and fast setup possibility.

User Tip: optimize the cost and combine the system with the passive model whether it is for stereo configurations or if you prefer to extend the cluster

Product variants

Available

Delivers within 1-2 days

Free delivery above 200 AED

Cash on delivery

14 days returnable

Courier return with a fee

Need Help:

Pairs well with

GP18A - Subwoofer + Column System (Active)

Dhs.11,559.32

Technical Specifications

Description

GENERAL Power Handling: 750W subwoofer + 700W satellitePeak Power: 1500W subwoofer + 1400W satelliteImpedance: 8Ω subwoofer + 16Ω each segmentFrequency Range: 45Hz – 20KHz (-6dB average)Maximum SPL(1): 125dB peak *measured at 8m and then scaled at 1m (peak)Continuos SPL: 113 dBCoverage: V.20° - H.140°

TRANSDUCERS Subwoofer: 18” ferrite magnetMid High Frequency: 3 modules with 8x2” ferrite magnet

AUDIO I/O Analog balanced I: 2 x Combo jack-XLR female lineAnalog power O: 1 x Speakon to drive a GP18 Passive System in a stereo configuration

AUDIO CONTROLS Volume potentiometer | RJ45 connector | DSP can be remotely controlled via an Ethernet connection through Powersoft ArmoniaPlus Software

AMPLIFIER Type: 4-channel Class-D audio amplifierPower: 4x 1500W @4ohmAC input: 100-240V AC @50-60HzMax power consumption: 500W Rated Load (1/8 Max Power)Protections: Thermal Protections (Power limiting - Thermal Shutdown), Short-circuit/overload output protections, stationary high frequency protection, peak limiter, RMS limiter, frequency dependent RMS limiter, Clip limiter.

PHYSICAL OVERVIEW

SUBWOOFER Width: 545mm (21,46in)Height: 610mm (24,02in)Depth: 600mm (23,6in)Weight: 35,4kg (76,37lbs)Material: woodRating: IP41

SATELLITE Width: 85mm (3,34in)Height: 1610mm (63,38in)Depth: 105mm (4,13in)Weight: 6kg (13,22lbs)Material: ABSRating: IP54
