Key Features

• Extends HDMI and VGA / Audio up to a distance of 100m over single CAT cable
• Auto signal sensing switches between HDMI and VGA / audio inputs, will display last input signal connected
• Manual switching between inputs using toggle button or RS-232 control on either transmitter or receiver
• Supports 4K UHD video up to 70m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
• Supports industry standard video resolutions from 480i-4K and most industry standard VGA resolutions (check manual for full list of supported VGA resolutions)
• Supports full 3D signal display
• Supports CEC bypass (Consumer Electronics Control) - HDMI only
• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
• Supports bi-directional RS-232 pass-through
• Supports bi-directional IR from all input and output locations
• Supplied with Blustream IR receiver and emitters
• Supports bi-directional PoC (Power over Cable) to power extenders from either transmitter or receiver end
• HDCP 1.4 compliant

Specifications

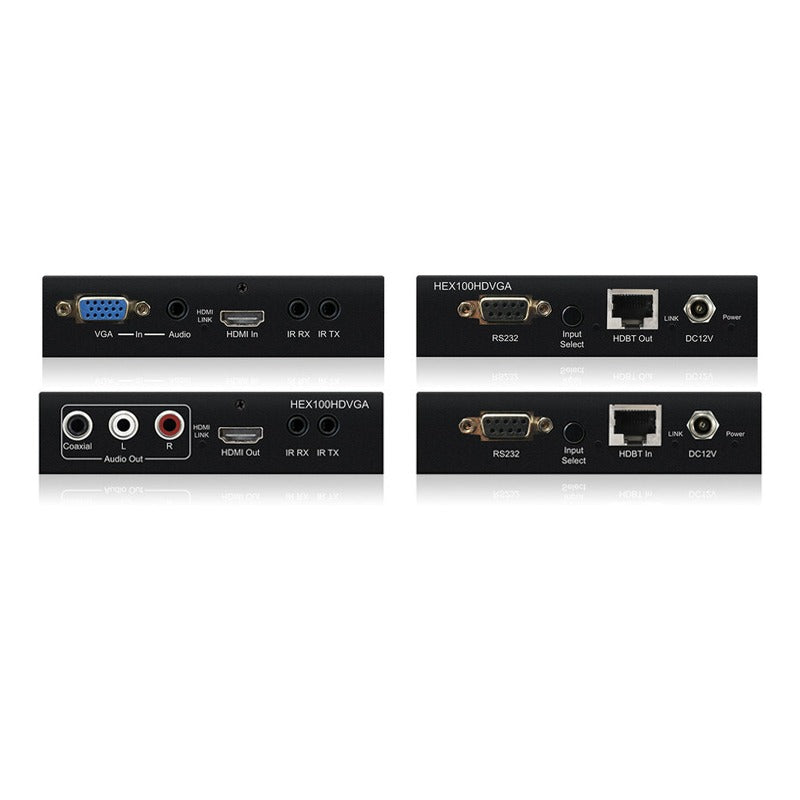

HEX100HDVGA-TX:

• Audio Input Connectors: 1 x Analogue Left / Right 3.5mm stereo jack
• Video Input Connectors: 1 x HDMI Type A & 1x VGA (DB-15)
• Video Output Connectors: 1 x HDBaseT™ RJ45 connector
• IR Input Ports: 1 x 3.5mm stereo jack
• IR Output Ports: 1 x 3.5mm mono jack
• RS-232 Serial Port: 1 x DB9, female
• Mounting Brackets Included

HEX100HDVGA-RX:

• Audio Output Connectors: 2 x Analogue RCA Left / Right & Coaxial digital
• Video Input Connectors: 1 x HDBaseT™ RJ45 connector
• Video Output Connectors: 1 x HDMI Type A
• IR Input Ports: 1 x 3.5mm stereo jack
• IR Output Ports: 1 x 3.5mm mono jack
• RS-232 Serial Port: 1 x DB9, female
• Mounting Brackets Included

• Balun Dimensions (W x D x H): 115mm x 135mm x 30mm (with connections)
• Balun Dimensions (W x D x H): 115mm x 125mm x 30mm (without connections)
• Ind. Balun Weight: 0.35kg (excluding accessories)
• Carton / Box Dimensions (W x D x H): 300mm x 155mm x 90mm
• Shipping Weight: 1.2kg
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature: -4°F to 140°F (-20°C to 60°C)
• Power Supply: 12V/2A DC, screw type connector

Box Contents

• 1 x HEX100HDVGA-TX
• 1 x HEX100HDVGA-RX
• 1 x 12V/2A DC Power Supply
• 1 x IR Receiver
• 1 x IR Emitter
• 2 x Mounting Brackets
• 1 x User Manual
