Key Features

• Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
• Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
• Extends HDMI at 1080p up to a distance of 70m
• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission
• Supports 12V-48V PoC from compatible Blustream HDBaseT™ receiver / matrix products *
• Bi-directional RS-232 pass-through
• Supports IR pass-through to HDBaseT™ receiver / matrix device
• Compatible with all Blustream HDBaseT™ receiver / matrix products **
• Magnetic faceplate surround allowing both UK & EU backbox compatibility
• HDCP 2.2 support

* When powering the HEX11WP-TX locally, PoC is not passed to a connected HDBaseT™ receiver device

**Technical performance is subject to the features supported on the connected HDBaseT™ device

Specifications

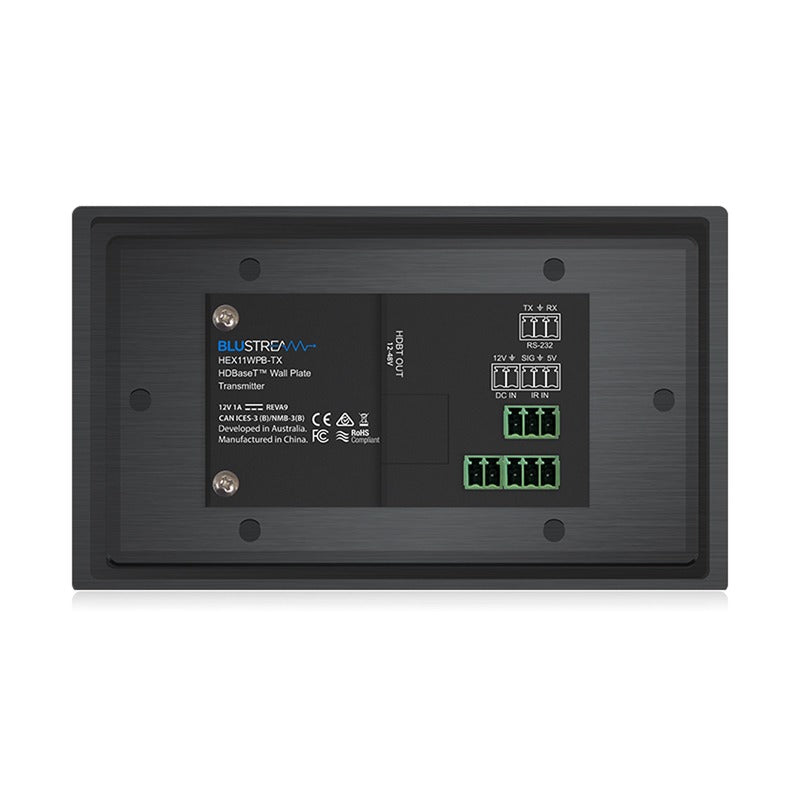

• Video Input Connectors: 1 x HDMI Type A, 19-pin, female
• Video Output Connectors: 1 x HDBaseT™ RJ45 connector
• RS-232 Serial Port: 1 x 3-Pin Phoenix connector
• IR Input Port: 1 x 3-Pin Phoenix connector
• Local Power Input: 1 x 2-Pin Phoenix connector
• Casing Dimensions (W x H x D): 136mm x 76mm x 44mm (without faceplate)
• Casing Dimensions (W x H x D): 146mm x 86mm x 44mm (with faceplate)
• Faceplate Dimensions (W x H x D): 146mm x 86mm x 6mm
• Backbox House Unit Dimensions (W x H x D): 78mm x 49mm x 39mm (part of unit housed inside backbox)
• UK / EU Backbox Mounting Depth: 40mm (minimum) – backbox not supplied
• Shipping Weight: 2.1kg
• Operating Temperature: 32°F to 104°F (-5°C to +55°C)
• Storage Temperature: -4°F to 140°F (-25°C to +70°C)
• Power Supply: 12V/1A DC

Box Contents

• 1 x HEX11WP-TX
• 1 x 12V/1A DC Power Supply
• 1 x Magnetic Faceplate surround
• 1 x Quick Reference Guide
