Key Features

• Advanced HDBaseT™ technology offering uncompressed video and audio with zero latency
• Extends HDMI 1080p up to a distance of 70m over a single CAT cable
• Supports 4K UHD video up to 40m (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• Supports ARC (Audio Return Channel) from connected display via HDMI ARC or optical digital input
• Features 1 x HDMI loop-out on HEX70ARC-TX for integrating local displays or cascading to multiple devices
• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Atmos, Dolby Digital Plus and DTS-HD Master Audio transmission (TX to RX)
• Bi-directional IR pass-through
• Supplied with Blustream IR receiver and emitter
• Supports bi-directional PoC (Power over Cable) to power extenders from either transmitter or receiver end
• HDCP 2.2 compliant with smart EDID management

Advanced Audio Return Channel (ARC) Functionality

• The three modes for Audio Return and CEC are controlled using the switch located on the Receiver unit. The switch positions are HDMI, PASS or OPT. See below for explanation:
• HDMI– HDMI ARC in to the Receiver from the display, to Optical Out and L/R Out on the Transmitter. CEC communication over HDBaseT™ is blocked.
• PASS– HDMI ARC in to the Receiver from the display to HDMI ARC, Optical Out and L/R Out on the Transmitter. CEC communication is passed through the HDBaseT™ link.
• OPT– Optical audio in to the Receiver from the display, to Optical Out and L/R Out on the Transmitter. CEC communication over HDBaseT™ is blocked.

Specifications

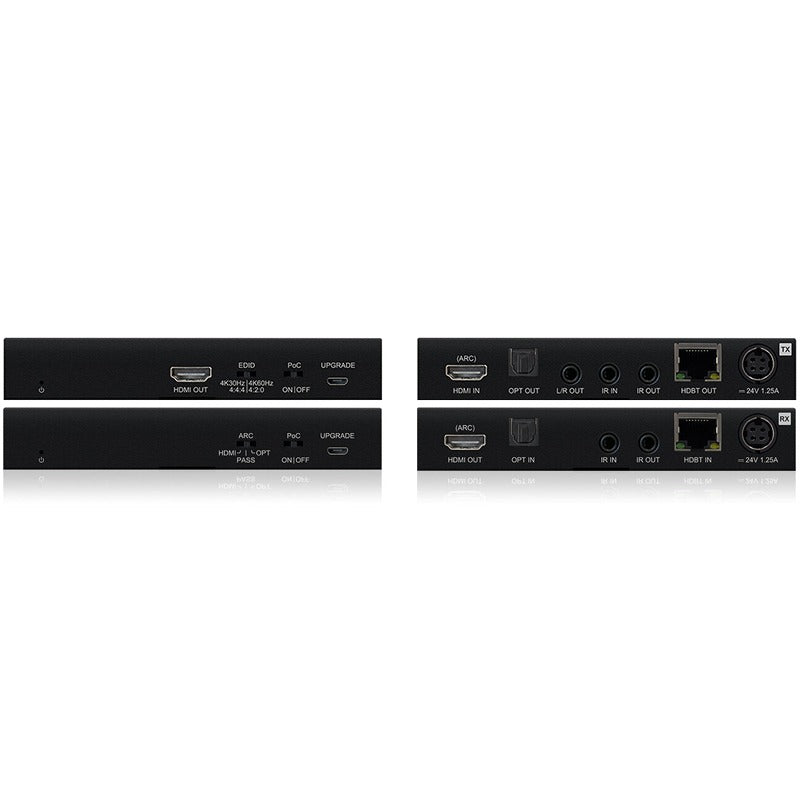

HEX70ARC-TX:

• Video Input Connectors: 1 x HDMI Type A, female
• Video Output Connectors: 1 x HDBaseT™ RJ45 connector, 1 x HDMI Type A, female
• Audio Output Ports: 1 x Optical (S/PDIF), 1 x 3.5mm L/R analogue audio
• IR Input Port: 1 x 3.5mm stereo jack
• IR Output Port: 1 x 3.5mm mono jack
• Product Upgrade: 1 x Micro-USB, female
• Casing Dimensions (W x D x H): 135 x 84 x 21mm

HEX70ARC-RX:

• Video Input Connectors: 1 x HDBaseT™ RJ45 connector
• Video Output Connectors: 1 x HDMI Type A, female
• Audio Input Port: 1 x Optical (S/PDIF)
• IR Input Port: 1 x 3.5mm stereo jack
• IR Output Port: 1 x 3.5mm mono jack
• Product Upgrade: 1 x Micro-USB, female
• Casing Dimensions (W x D x H): 135 x 84 x 21mm
• Power Supply: 1 x 24V/1.25A DC, 4-pin DIN connector
• Box Dimensions (W x D x H): 248 x 151 x 103mm
• Shipping Weight: 1kg
• Operating Temperature: 32°F to 104°F (-5°C to +55°C)
• Storage Temperature: -4°F to 140°F (-25°C to +70°C)

Box Contents

• 1 x HEX70ARC-TX
• 1 x HEX70ARC-RX
• 1 x 24V/1.25A DC Power Supply
• 1 x IR Emitter
• 1 x IR Receiver
• 2 x Mounting Bracket Sets
• 1 x Quick Reference Guide
