Key Features

• Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
• Advanced Colour Space Conversion (CSC)
• Supports HDMI 2.0 18Gbps specification including HDR
• Supports 4K 60Hz 4:4:4 UHD video up to 40m
• Extends HDMI 1080p video up to 70m
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission
• Features 1 x HDMI loop-out on HEX70CS-TX for integrating local displays or cascading to multiple devices
• Supports bi-directional RS-232 pass-through
• Supports bi-directional IR pass-through
• Supports bi-directional IR pass-through with switchable
• 5V/12V IR hardware support
• HDCP 2.2 support

Specifications

• Video Input Connectors: 1 x HDMI Type A, female
• Video Output Connectors: 1 x HDBaseT™ RJ45 connector, 1 x HDMI Type A female
• RS-232 Serial Port: 1 x DB-9 female
• IR Input Ports: 1 x 3.5mm stereo jack
• IR Output Ports: 1 x 3.5mm mono jack
• EDID DIP Switch: 4-pin
• Power Supply: 12V/2A DC, screw type connector
• Power Consumption: 12.7W
• Transmitter Dimensions (W x D x H): 143 x 134 x 22mm (without connections)
• Transmitter Dimensions (W x D x H): 143 x 141 x 22mm (with connections)
• Ind. Extender Weight: 0.35kg (excluding accessories)
• Shipping Weight: 1.4kg
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature: -4°F to 140°F (-20°C to 60°C)
• Mounting Kit Included

Box Contents

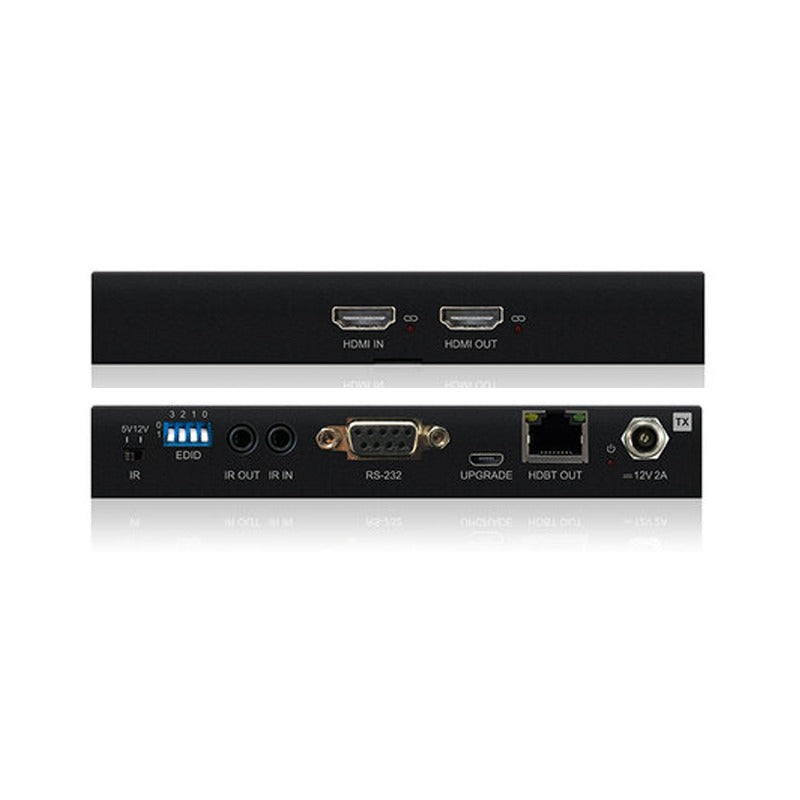

• 1 x HEX70CS-TX
• 1 x Mounting Kit
