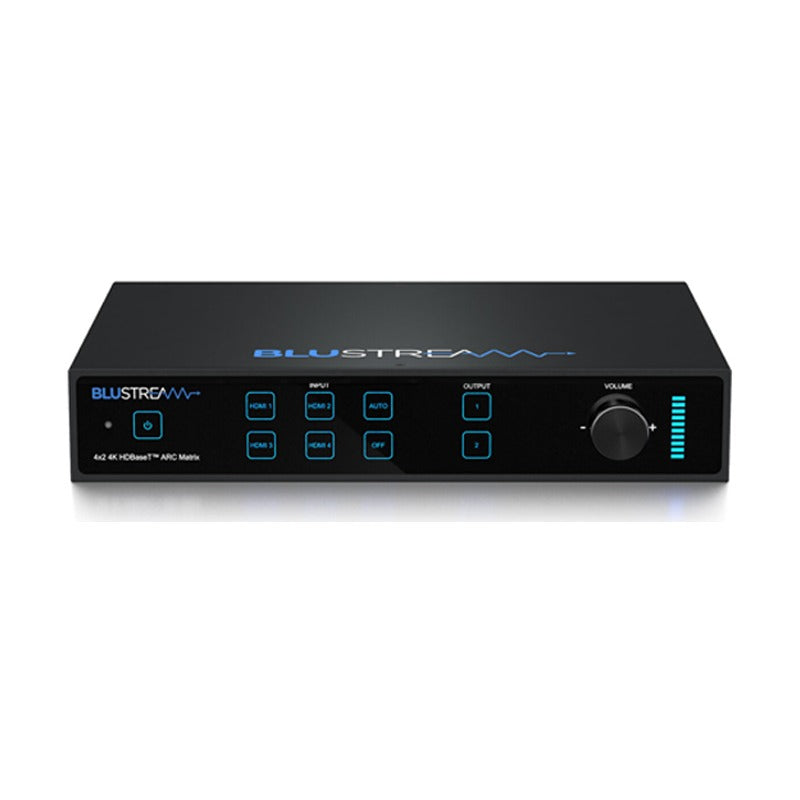

Key Features

• Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable
• Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR • Features 4 x HDMI inputs which can be independently routed to 2 x HDBaseT™ outputs
• Output 1 features simultaneous HDMI and HDBaseT™ output
• Video Smart Scaling on HDBaseT™ outputs allowing a display only capable of supporting lower video resolutions (4K 60Hz 4:2:0 or 1080p) to receive 4K 60Hz 4:4:4 video content while still showing maximum original 4K UHD resolution on remaining video outputs
• Supports 4K 60Hz 4:4:4 UHD video up to 40m
• Extends HDMI 1080p video up to 70m
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K
• Supports all known digital HDMI audio formats including Dolby TrueHD, Atmos; DTS-HD Master Audio and DTS:X transmissions
• 8 x 2 audio matrix that is independently controllable from video.
• Audio source inputs include: - 4 x audio breakout from HDMI source - 2 x audio breakout from zone outputs - 2 x ARC from zone outputs
• Audio breakout to analogue L/R audio and optical digital (S/PDIF) outputs concurrently with line level volume control on analogue outputs
• Audio breakout features selectable source from zone audio breakout or ARC from zone outputs via HDMI ARC or optical ARC
• Web interface module for control and configuration of matrix
• Supports bi-directional IR on all HDBaseT™ outputs
• Supports PoC (Power over Cable) to power supplied RX70CS HDBaseT™ receivers
• 3rd Party drivers available for all major control brands
• Advanced EDID management
• HDCP 2.2 compliant
• Supplied with 2 x RX70CS HDBaseT™ receivers

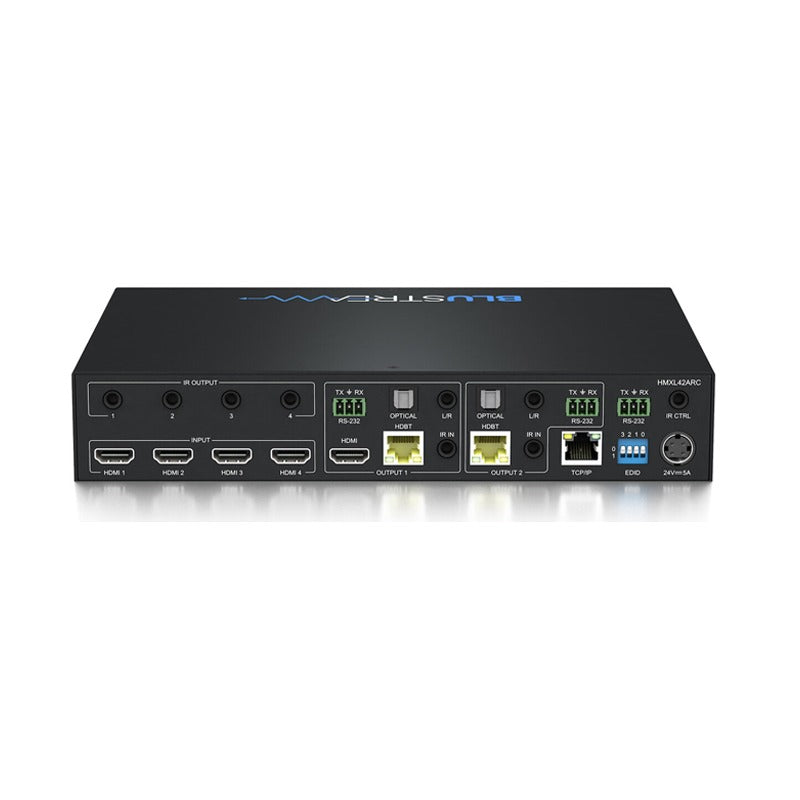

Specifications

• Video Input Connectors: 4x HDMI Type A, 19-pin, female
• Video Output Connectors: 1x HDMI Type A, 19-pin, female, 2x HDBaseT™ RJ45 connector
• Audio Input Connectors: 2x Analogue audio L/R (3.5mm stereo Jack), 2x Optical (SPDIF)
• RS-232 Serial Ports: 1x 3-pin Phoenix connector
• TCP/IP Control: 1x RJ45, female
• IR Input Ports: 3x 3.5mm stereo jack
• IR Output Ports: 4x 3.5mm mono jack
• Rack Mountable: 1U rack height, rack ears included
• Casing Dimensions (WxDxH): 220mm x 235mm x 44mm (without feet)
• Shipping Weight: 4.5kg
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature: -4°F to 140°F (-20°C to 60°C)
• Power Supply: 1x 24V/5A DC

Box Contents

• 1 x HMXL42ARC
• 2 x RX70CS
• 1 x 19" Rack mounting kit for HMXL42ARC
• 1 x Surface mount kit for HMXL42ARC
• 2 x Mounting kit for RX70CS
• 1 x Remote control
• 4 x IRE1 emitters
• 3 x IRR receivers
• 1 x Serial Cable - DB9 to 3-pin Phoenix connector
• 1 x IR Control Cable - 3.5mm-3.5mm Cable
• 1 x 24V/5A power supply
• 1 x Quick Reference Guide
