Key Features

• Advanced UHD video over 1Gb Managed Network
• Operates as a stand-alone system, or together with existing IP200UHD products
• Virtually unlimited system size
• Extends HDMI and Dante up to a distance of 100m over a single CAT cable
• Dual RJ45 network ports configurable for independent or combined HDMI and Dante signal distribution
• SFP port for independent or combined HDMI and Dante signal distribution over a single fibre cable
• Supports up to 4K HDR UHD video sources (3840 x 2160 @30Hz 4:4:4, 4096 x 2160 @24Hz 4:4:4, and 4K @60Hz 4:2:0)
• Supports HDR input @ 4K 30/25/24Hz
• Features 1 x HDMI loop-out for integrating local displays or cascading to multiple devices
• In-built 2ch Dante transmitter for breakout of audio from HDMI source or local analogue audio input
• In-built 2ch Dante receiver for embedding of audio onto the HDMI signal or breakout to local analogue audio output
• Analogue L/R audio embedding
• Analogue L/R audio outputs support both balanced and unbalanced audio signals
• Supports all known HDMI audio formats including Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio transmission
• Advanced signal management for independent routing of IR, RS-232, USB/KVM, audio and video
• OLED front panel display for advanced system information and manual configuration
• PoE (Power over Ethernet) to power Blustream Multicast products from PoE switch
• HDCP 2.2 compliant with advanced EDID management
• Local 24V 1A power supply should Ethernet switch not support PoE (not included)
• Features 4 operational modes:

- Matrix distribution (requires 1Gb network switch)

- Video wall (requires 1Gb network switch)

- One-to-one HDMI extender (no network switch required)

- One-to-many HDMI extender (no network switch required)

Specifications

• Video input: 1 x HDMI Type A, female
• Video output: 1 x LAN RJ45 connector, 1x HDMI Type A, female
• Audio input:1 x 5-pin Phoenix connector
• Audio Output Connectors: 1 x 5-pin Phoenix connector
• Ethernet port: 2 x LAN RJ45 connector
• Fibre Port: 1 x SFP connector (fibre module not supplied)
• RS-232 serial port: 1 x 3-pin Phoenix connector
• USB/KVM Port: 1 x USB-Type B
• IR input: 1 x 3.5mm stereo jack
• IR output: 1 x 3.5mm mono jack
• Firmware Update: 1 x Micro-USB
• Mounting kit included

Box Contents

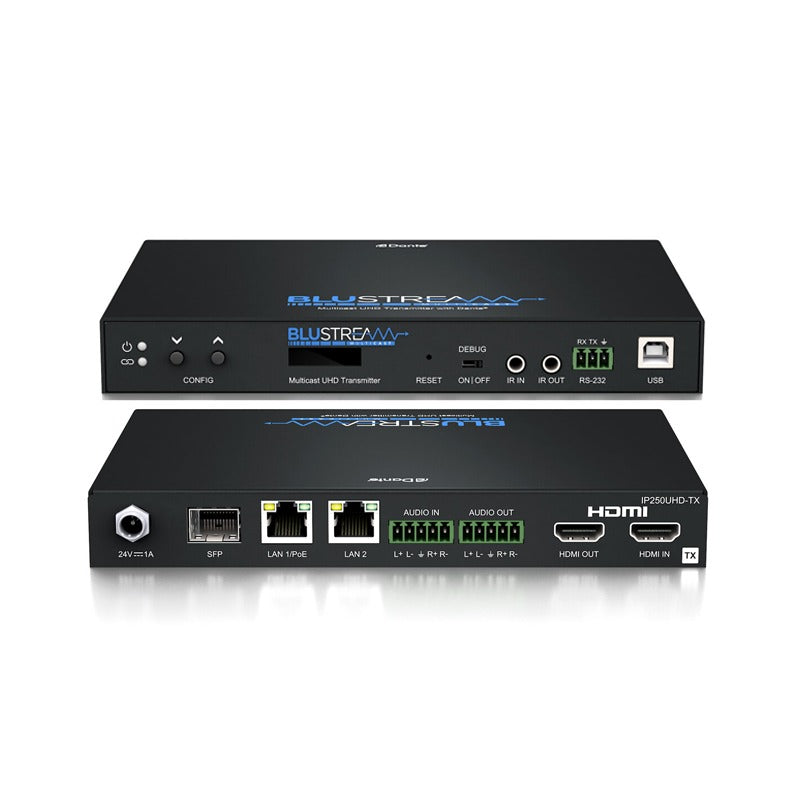

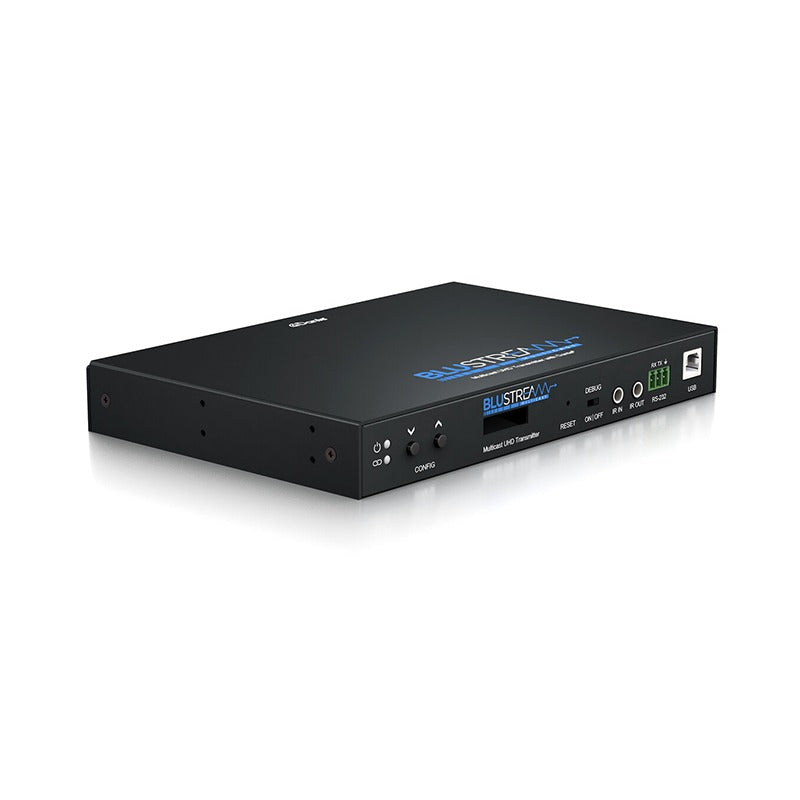

• 1 x IP250UHD-TX
• 1 x IRR IR Receiver
• 1 x IR1 IR Emitter
• 1 x Serial 3-pin Phoenix Connector
• 1 x Mounting Kit
• 1 x Quick Reference Guide
