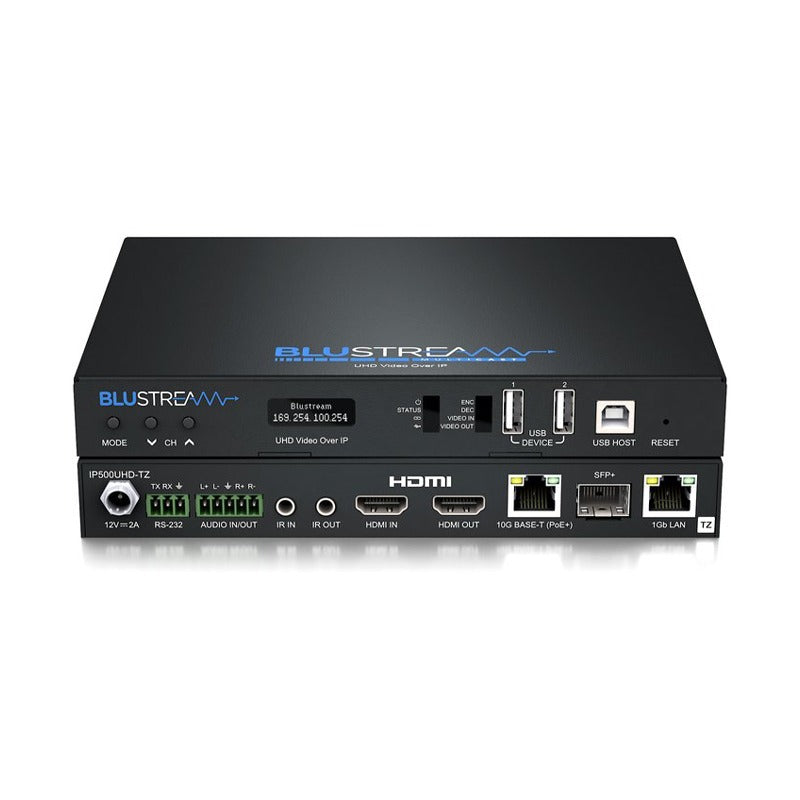

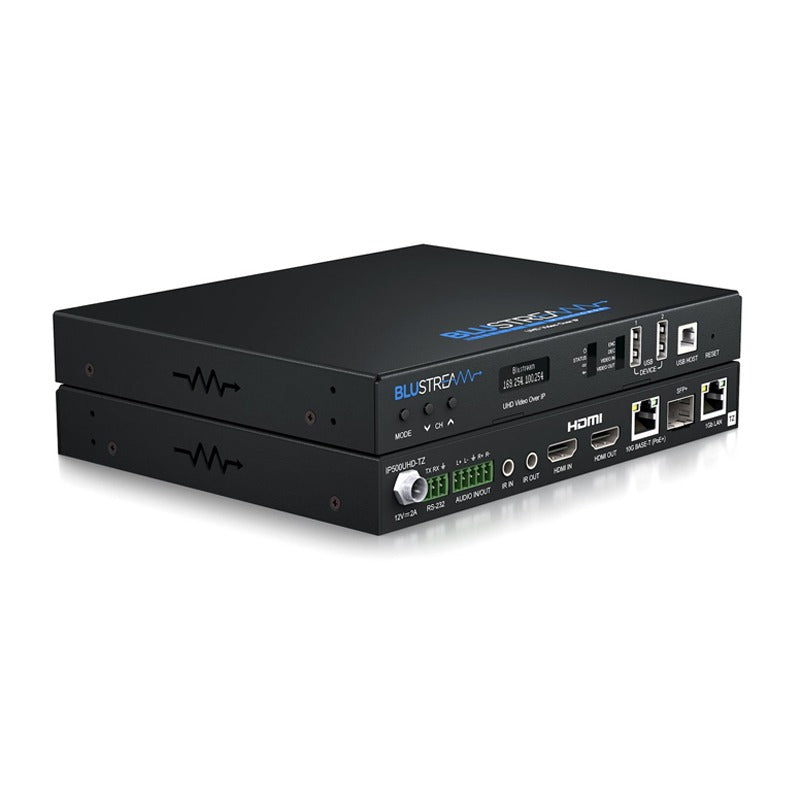

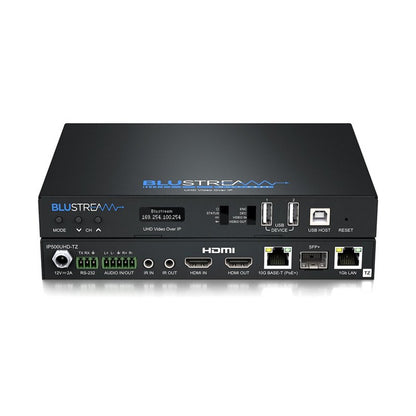

The IP500UHD-TZ provides advanced features including PoE+ and transmission of multiple control and data signals alongside audio and video, including IR, RS-232, USB (KVM) and 1Gb Ethernet.

The IP500UHD-TZ is ideal for mission-critical 18Gbps HDMI installations where multiple transceivers can be combined with one or more 10GbE copper / fibre switches to form a distributed video matrix, multi-viewer, or video wall system.

Key Features:

• Advanced 18Gbps UHD Video over 10Gb Managed Network with visually lossless compression and zero latency
• Supports HDMI 2.0 18Gbps specification with pass-through for up to 4K 60Hz 4:4:4, and with 10/12-bit HDR sources, including Dolby Vision
• Transceiver can be configured as a point of transmission or a receiver as required
• Supports video scaling and single-frame switching
• Supports all known digital HDMI audio formats including Dolby TrueHD, Atmos, DTS-HD Master Audio and DTS:X transmissions
• Support fixed signal routing function for IR, RS-232, CEC and USB
• USB end-to-end / point-to-point pass-through
• Analogue L/R audio embedding and audio breakout (balanced and unbalanced)
• Bi-directional 10/100/1000BaseT Ethernet pass-through
• Supports bi-directional 5V or 12V IR pass-through
• PoE+ (Power over Ethernet) to power Blustream Multicast products from PoE+ switch
• HDCP 2.2 compliant with advanced EDID management
• Local 12V 2.5A power input (should Ethernet switch not support PoE+, PSU sold separately)
• Features 4 operational modes:- Matrix distribution (requires 10Gb network switch)- Video wall (requires 10Gb network switch)- Multiview mode (requires 10Gb network switch)- One-to-one HDMI extender (no network switch required)

Specifications:

• Video input: 1 x HDMI Type A, female
• Video output: 1 x HDMI Type A, female
• Audio input/Output: 1 x 5-pin Phoenix connector
• Ethernet port: 1 x 10GBaseT RJ45 Video network, 1 x SFP+ module video network, 1 x 1Gb LAN RJ45 pass-through
• RS-232 serial port: 1 x 3-pin Phoenix connector
• USB/KVM Port: 1 x USB-Type B (host) , 2x USB-Type A (device)
• IR input: 1 x 3.5mm stereo jack
• IR output: 1 x 3.5mm mono jack
• PoE+ draw: 12.8W (typical), 13.5W (max load)
• Dimensions (WxDxH): 191mm x 153mm x 25mm
• Dimensions Including Connections (WxDxH): 191mm x 158mm x 25mm
• Shipping Weight: 1kg
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature : -4°F to 140°F (-20°C to 60°C)

Box Contents:

• 1 x IP500UHD-TZ
• 1 x IR Receiver
• 1 x IR Emitter
• 4 x Rubber Feet
• 1 x Mounting Kit
• 1 x Quick Reference Guide
