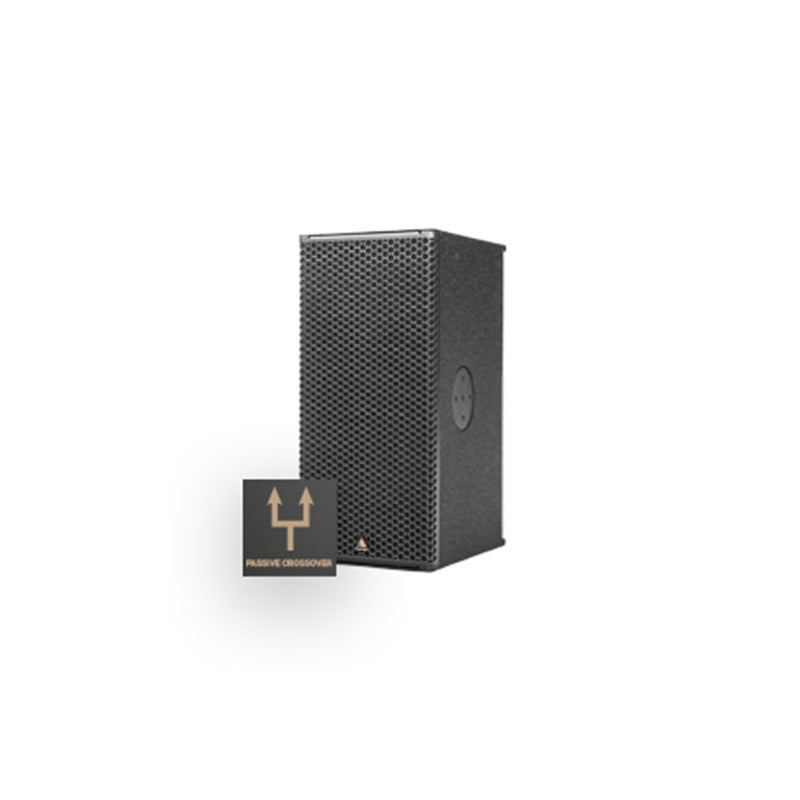

The cabinet construction uses marine grade birch plywood as well as aircraft grade aluminum and steel, and is equipped with two Speakon™ NL4 connectors (IS7px), or barrier strips (IS7pbx). A plate and screw rigging system is placed on four faces of the enclosure, with a multitude of accessories allowing the enclosure to be deployed seamlessly in a variety of applications.

The IS7px is suited to a wide variety of applications. Its full range capability (80 Hz) at reasonable levels qualifies for applications where sub is not required. The choice in dispersion pattern enables the IS7px to supplement larger systems as a fill cabinet, or to handle smaller applications on its own. Other target applications include performing arts centers, live performance venues, sports venues, conference centers and houses of worship.

Specifications:

• Frequency Range (+/-3 dB): 80 Hz - 18 kHz
• Nominal Directivity (-6 dB): H x V 70° x 40° or 100° x 50° Rotatable
• Maximum Peak SPL**: 135
• Components LF: 2 X ND7-LM16
• Components HF: Adamson NH3-8 3” Diaphragm / 1.4” Exit Compression Driver
• Nominal Impedance Passive: 6 Ω
• Power Handling (AES / Peak) Passive: 500 / 2000 W
• Rigging: Integrated Rigging System
• Connection: 2x Speakon™ NL4 or Barrier Strips / IP67 Cable Gland with Weatherized
• Height Front (mm / in): 527 / 20.75
• Width (mm / in): 251.5 / 9.9
• Depth (mm / in): 356 / 14
• Weight (kg / lbs): 15.5 / 34.2
• Supported Processing: Lake**12 dB crest factor pink noise at 1m, free field, using specified processing and amplification
