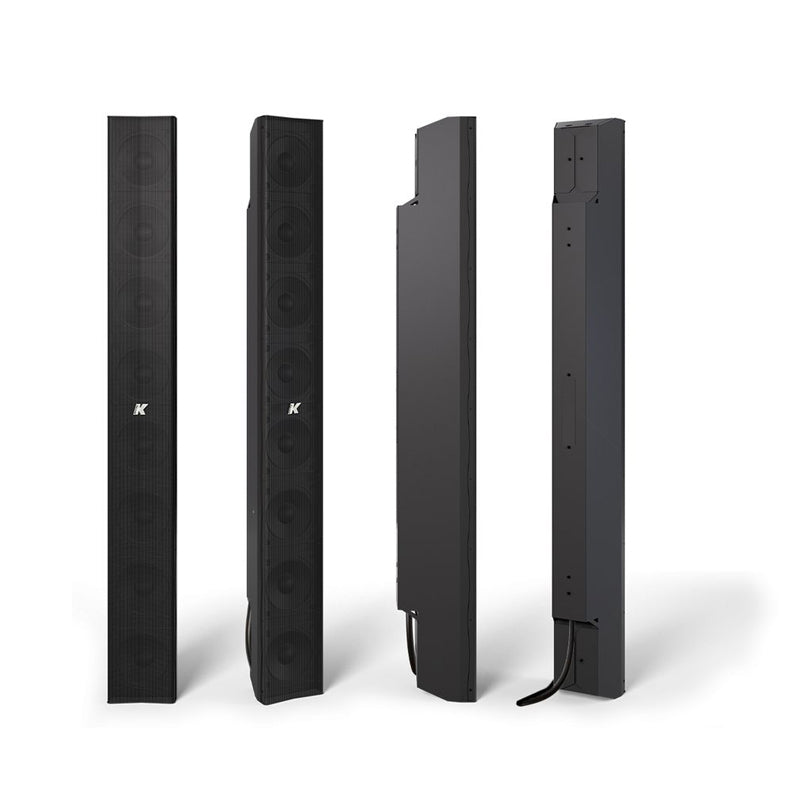

Kayman-KY102-EBS - Steerable Line Array Element

Name: Kayman-KY102-EBS - Steerable Line Array Element
Brand: K-Array
SKU: KY102-EBS
Price: 19887.29 AED
Availability: OutOfStock

Brand: K-Array

Categories: Passive Column Speakers

SKU: KY102-EBS

K-array designed KY102-EBS to expand the possibilities and provide an advanced solution to control emission and directivity in all those small and medium applications that require beam steering, with the uncompromising sound quality and features of our famous Kayman speakers! The evolution of the most powerful massive column array element. With a maximum output SPL of 138 dB and advanced Electronic Beam Steering through FIR processing on 8 independent amp channels, the KY102-EBS sets new standards in precision and power.

Product variants

On Demand

Need Help:

Pairs well with

Technical Specifications

Description

All Kayman-KY102-EBS components are designed by the K-array R&D department and are custom-made under the K-array quality control system in Italy.

GENERAL

Type: Passive steerable line array element
Transducers: 8 x 4" neodymium magnet woofers
Frequency Response: 120 Hz – 20 kHz (-6 dB)(1)
Max SPL: 138 dB (peak)(2)
Rated Power: 8x 150W
Coverage: V. digitally adjustable | H. 90°
Connectors: 16-wire multicore cable
Nominal Impedance: 8x 4Ω

HANDLING AND FINISHES

Dimensions (W x H x D): 116 x 1000 x 134 mm (4.6 x 39.4 x 5.3 in)
Weight: 14.9 kg (32.8 lb)
Material: Stainless Steel
Colors: Black, White, Custom RAL
Finishes: 24K Gold, Polished, Brushed

REGULATIONS

IP Rating: IP64(3)
