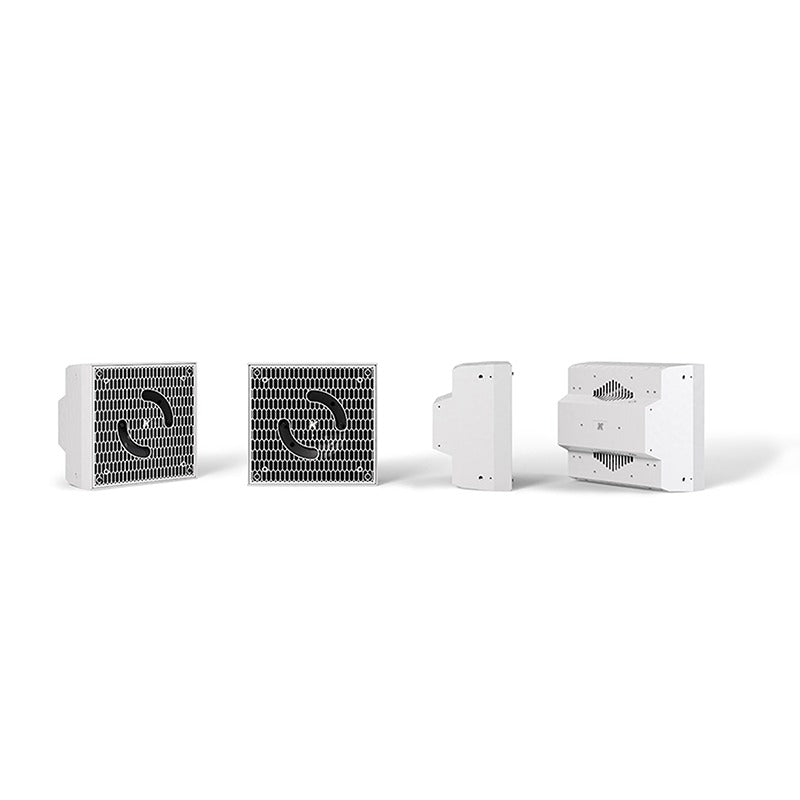

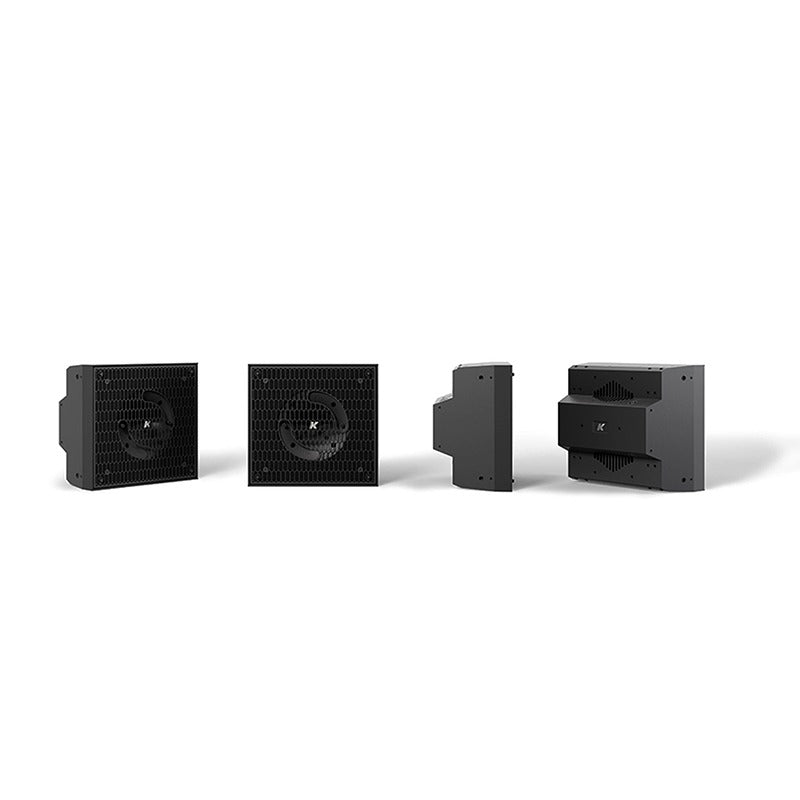

KX12 - Ultra-slim 12" Coaxial Passive Line Array

Categories: Line Arrays

SKU: KX12X

The Dragon-KX12 is a radical reinterpretation of a traditional coaxial 12” speaker. Its compact shape and different accessories allow the KX12 to perform as a powerful audio point source or as part of a line array. The speaker delivers a peak SPL of 132 dB and has a frequency range of 120 Hz to 19 kHz. Additionally, dedicated accessories assist in the set up of joining, flying and stacking the speaker. The Dragon-KX12 is compatible with all K-array Thunder subwoofers.

Color: Custom RAL

Custom RAL

Product variants

Low stock, only 4 items left.

Need Help:

Pairs well with

KX12 - Ultra-slim 12" Coaxial Passive Line Array

Custom RAL

Dhs.15,023.58

Technical Specifications

Description

GENERAL:

Type: Point source
Transducers: Coaxial 12" woofer with 2.4" compression driver
Frequency Response: 120 Hz – 19 kHz (-6 dB)
Maximum SPL: 133 dB (peak)
Rated Power: 1200 W
Coverage: User sel. V./H. 30°/100° | 100°/30°
Connectors: 2 x SpeakOn NL4 1+ 1- (signal); 2+ 2- (through)
Nominal Impedance: 8 Ω

HANDLING AND FINISHES:

Dimensions (W x H x D): 340 x 320 x 201 mm (13.4 x 12.6 x 7.9) in
Weight: 12.2 kg (26.89 lb)
Material: Stainless Steel
Color: Black, Custom RAL

REGULATIONS:

IP Rating: IP21
