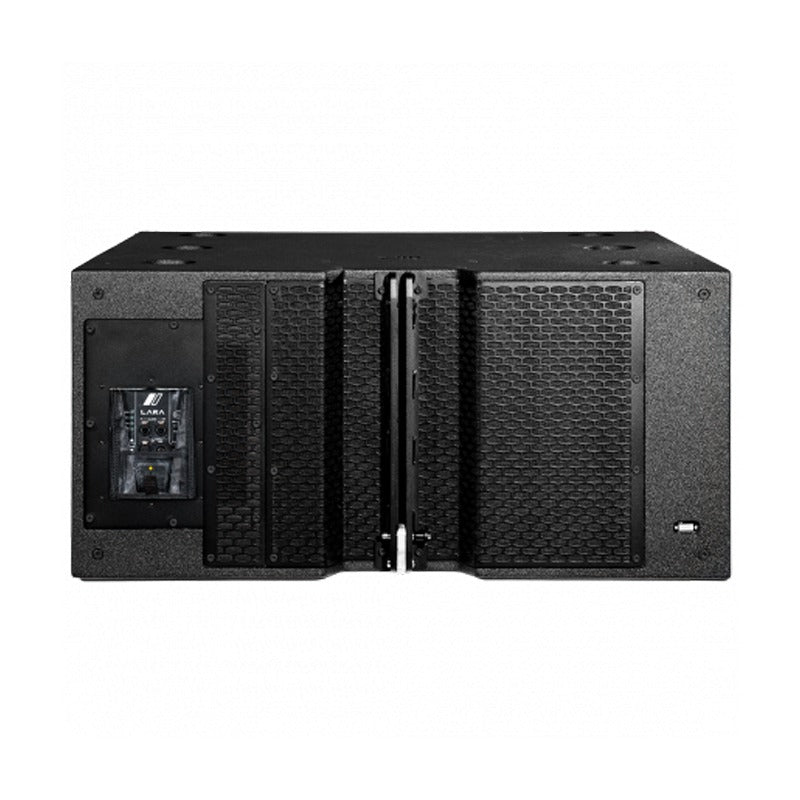

Powering the LARA SUB is a 3 channel Class D amplifier with independent channels powering each of the front-loaded low frequency transducers and the rear facing cardioid speaker. The amplifier´s regulated switch mode power supply is equipped with power factor correction reducing power consumption while enhancing reliability and consistency in all operating conditions. The onboard DSP optimizes the signal parameters for front and rear drivers to maximize the rear rejection 14 dB from 40 Hz – 80 Hz average.

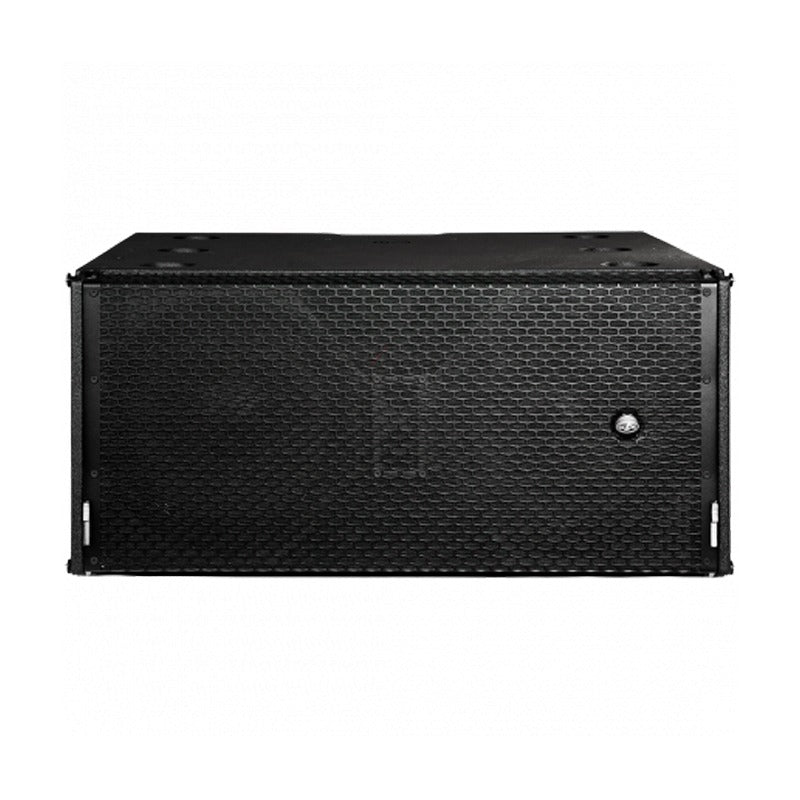

Cabinet construction follows DAS´s strict construction standards employing birch plywood and the durable ISO-flexTM protective exterior coating. The LARA SUB incorporates captive rigging hardware that makes use of the common LARA rigging bumper, only one bumper type is needed to fly either LARA ARRAY or LARA SUB. The protective metal grilles are backed using acoustically transparent and water repellent fabric. Two recessed handles are located on each side of the enclosure.

Key Features:

• Cardioid powered subwoofer
• 3x 18” 18UXN neodymium transducers with 4” VC
• 3-channel, 3600 Wcontinuous Class D amplifier
• LARA rigging bumper compatible flying hardware

Applications:

• Outdoor festivals and live concerts
• Theatres, auditoria and performing arts centers
• Large live music clubs
• Live sound touring/Rental services
