By using LumenRadios CRMX Toolbox App it is possible to configure all settings of the device via the Bluetooth interface. The same interface can also be used to transmit DMX data directly from supported lighting control apps without the need of any additional hardware.

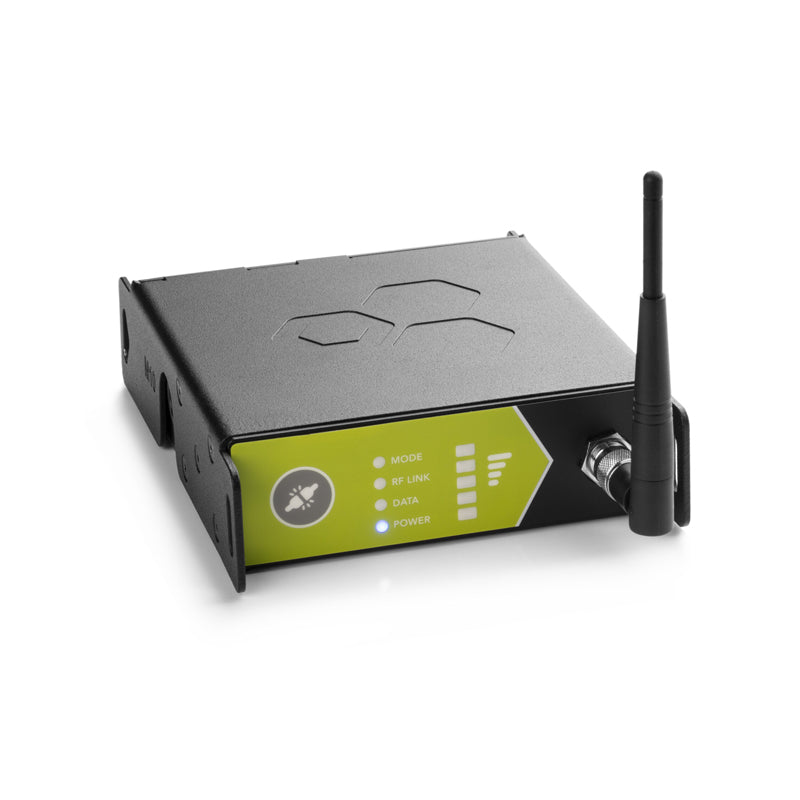

With the improved radio design and external antenna, Luna has the same range as both Aurora and Stardust with LED indicators on the front panel along with the one button interface for quick operation.

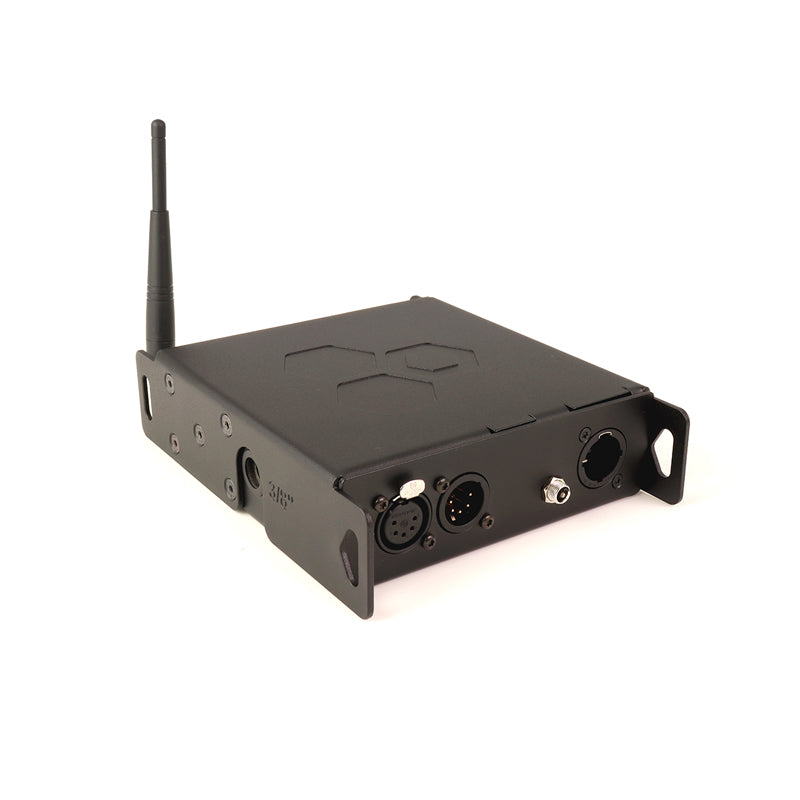

Luna features a 5-pin XLR for DMX, DC barrel plug for 10-20v and powerCON Tru1 for AC power. Tailor Luna to meet your specific needs with accessories such as V-Lock battery mount, Rack mount, Wall mount, Clamps and Threads.

LumenRadio continues to deliver the most reliable Wireless DMX with both CRMX and W-DMX compatibility, featuring Linking Key* along with industry standard 5 ms latency, error correction and 128 bit encryption at full refresh rate for a full universe.

Key Features:

• Single Universe CRMX Flex unit
• DMX/RDM(in RX)
• Bluetooth
• Configuration via App
• Compatible with CRMX and W-DMX G3/G4s

• DMX / RDM (in RX)
• CRMX
• W-DMX G3 / G4s
• Bluetooth 5.0

• Frequency range: 2402-2480 MHz
• Radio module: TimoTwo
• 5ms latency
• 128-bit encryption
• Forward Error Correction

• Antenna: RP-TNC
• DMX: 5-pin XLR female
• DC: 2.5mm/5.5mm Barrel connector
• AC: powerCON Tru1

• DC 10-20v
• AC 100-240 VAC

• IP20 Aluminium enclosure
• Front panel LEDs and button
• M10 and ⅜” Threads
• Rack and wall mount accessories
• V-Lock battery mount accessory
• 14 x 19 x 4.4 cm
