The onboard WiFi and Ethernet provides both configuration via web portal and transmission of sACN and Art-Net, while the Bluetooth interface enables configuration via the CRMX Toolbox App.

With the intuitive color screen it’s easier than ever to configure, using operation profiles to quickly change settings on the fly while the built-in backup battery makes sure the show will go on.

LumenRadio continues to deliver the most reliable Wireless DMX with both CRMX and W-DMX compatibility, featuring Linking Key along with industry standard 5 ms latency, error correction and 128 bit encryption at full refresh rate for all eight universes.

Key Features:

• Eight Universe CRMX Transmitter
• DMX/RDM, sACN and Art-Net 1-4
• Ethernet and 5 GHz WiFi
• Configuration via Web portal or Front panel
• Compatible with CRMX and W-DMX G3/G4

Product Specifications:

• DMX / RDM
• sACN / Art-Net 1-4
• CRMX
• W-DMX G3 / G4s
• Ethernet
• WiFi 802.11b/g/n/ac

• Frequency range: 2402-2480 MHz
• Radio module: 4 x TimoTwo
• 5ms latency
• 128-bit encryption
• Forward Error Correction

• Ethernet: RJ45
• Antennas: 4 x RP-TNC
• DC: 2.5mm/5.5mm Barrel connector
• AC: powerCON Tru1

• PoE
• DC 10-20 V
• Backup Battery (15 min. runtime)
• AC 100-240 VAC

• IP20 Aluminium enclosure

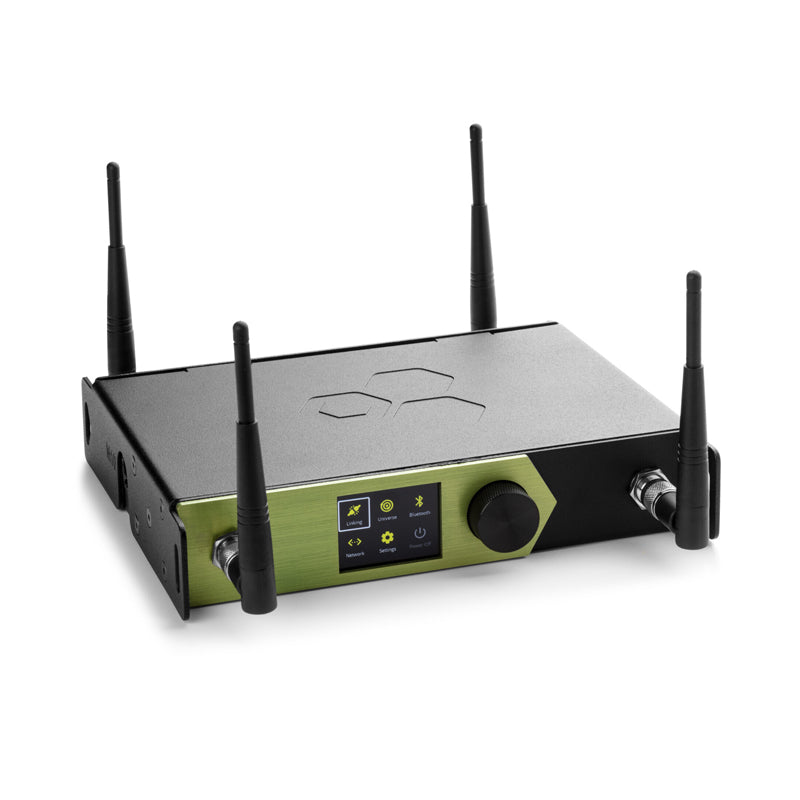

• Front panel color screen and rotary knob
• M10 and ⅜” Threads
• Rack and wall mount accessories
• V-Lock battery mount accessory
• 22 x 20 x 4.4 cm
