Technical Specifications

Description

The kit includes:

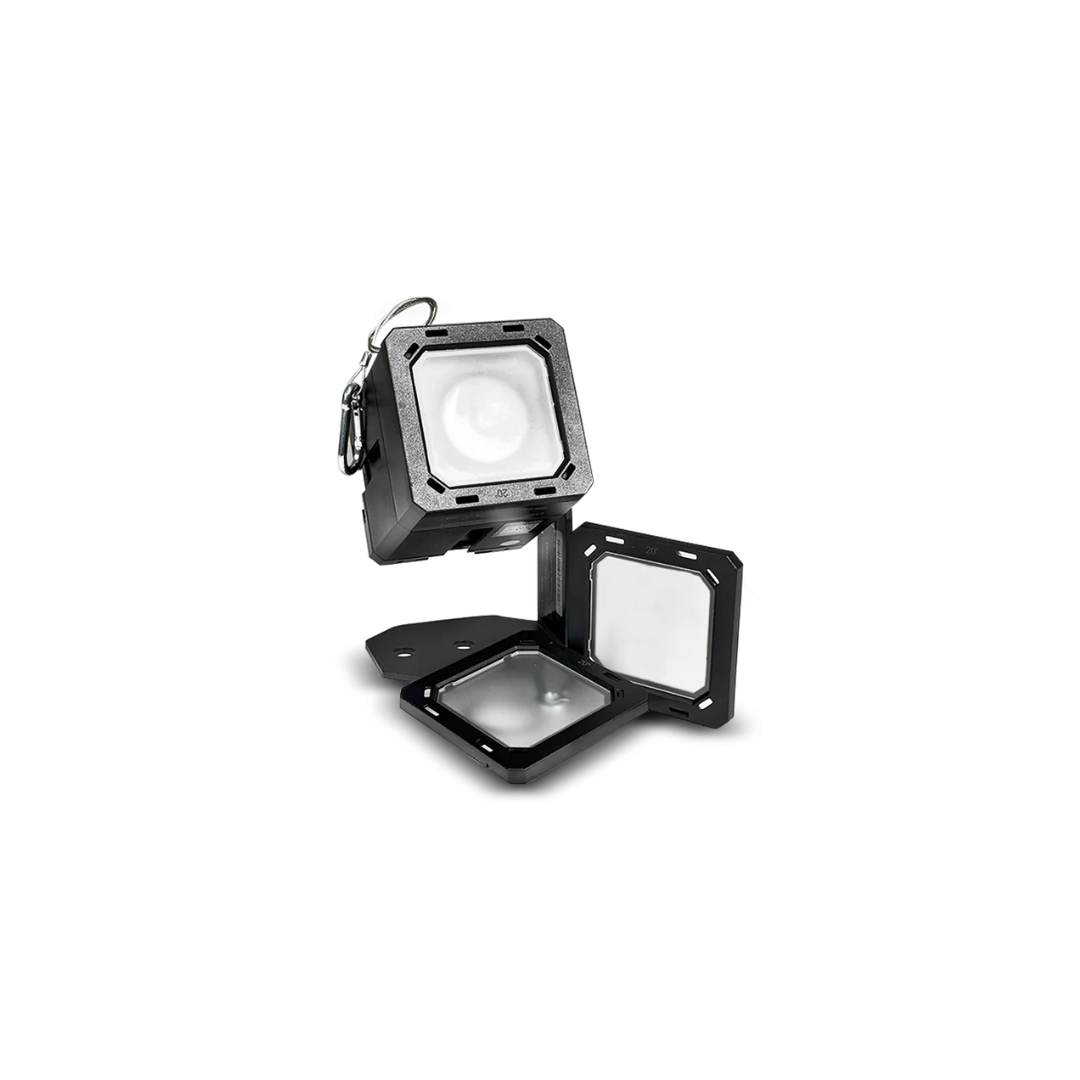

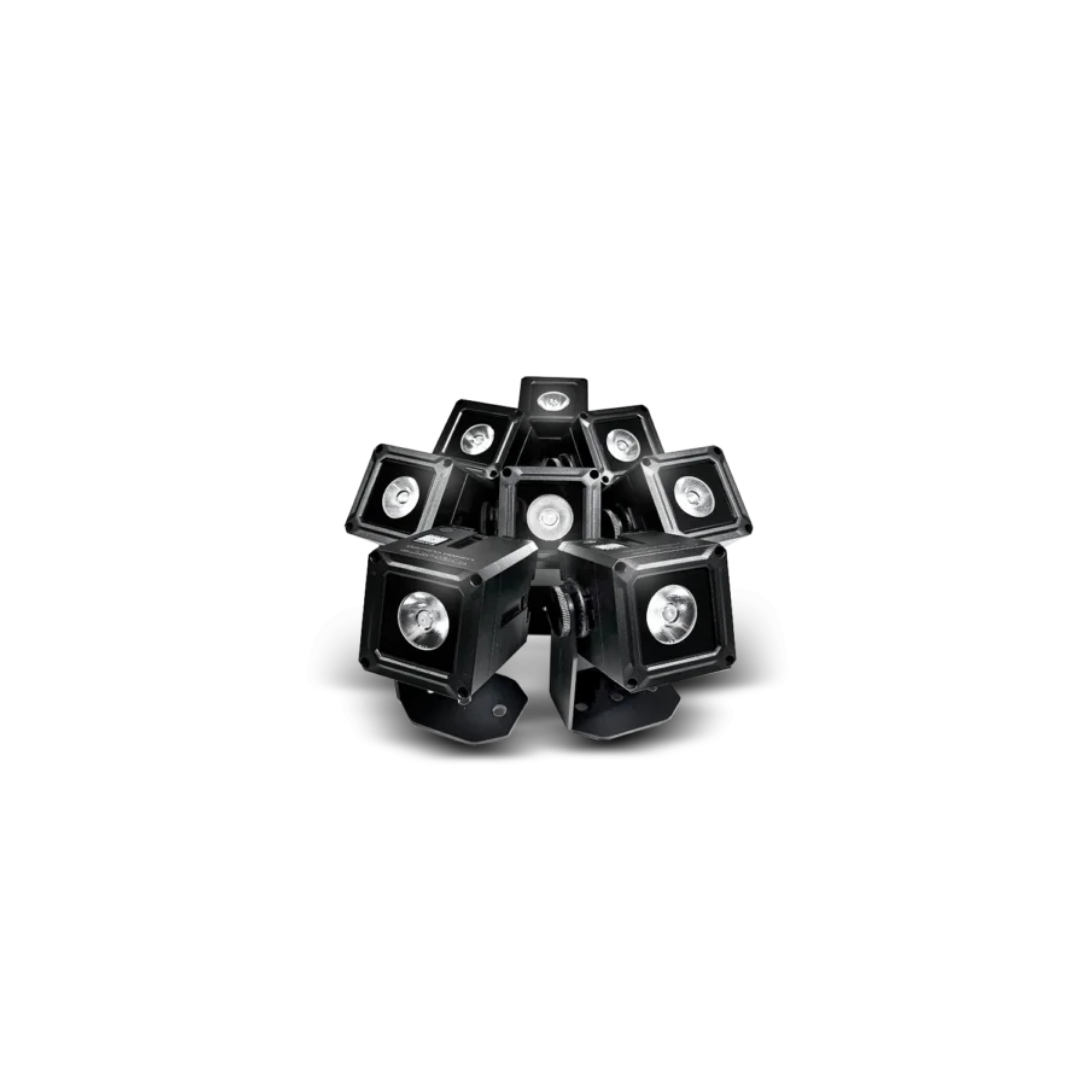

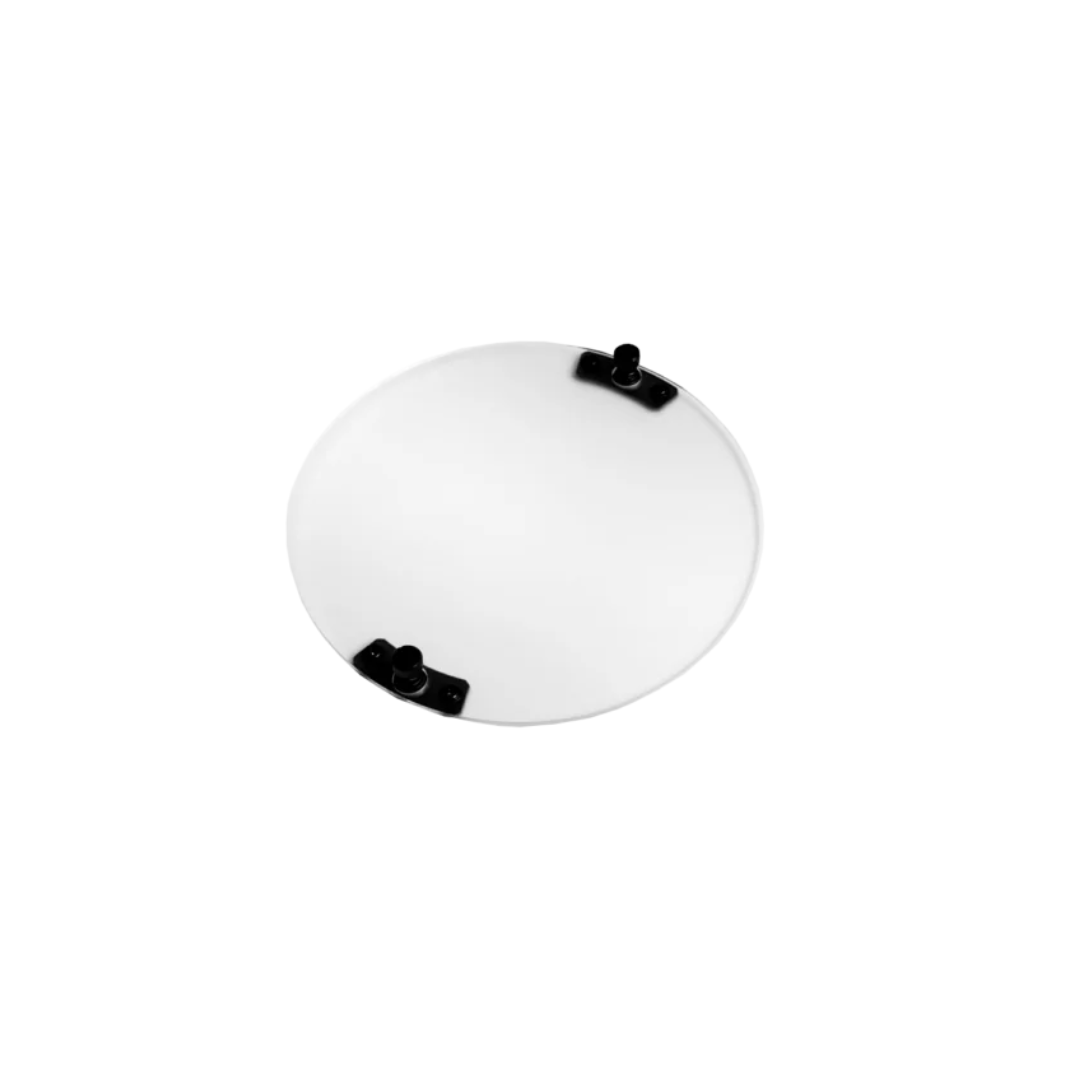

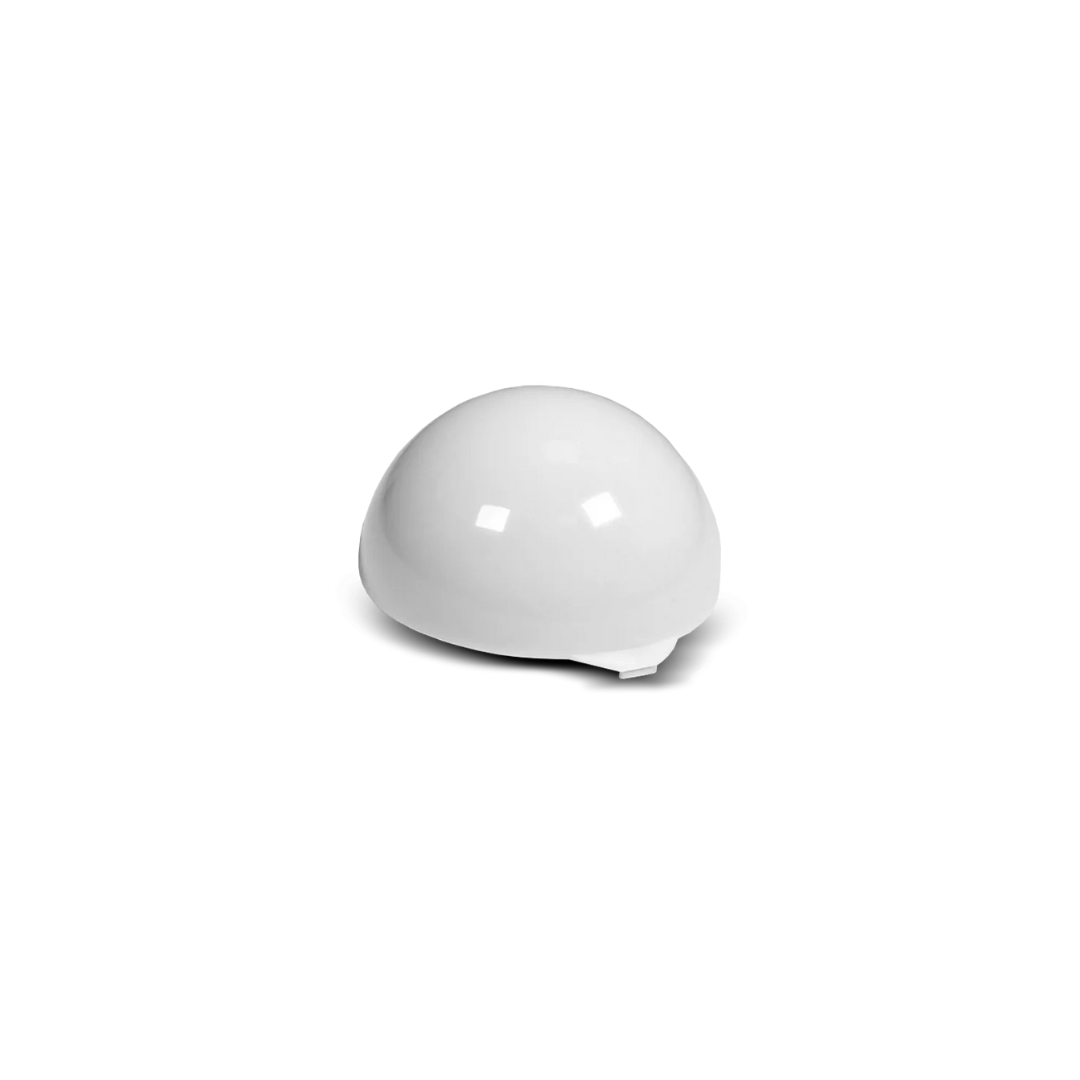

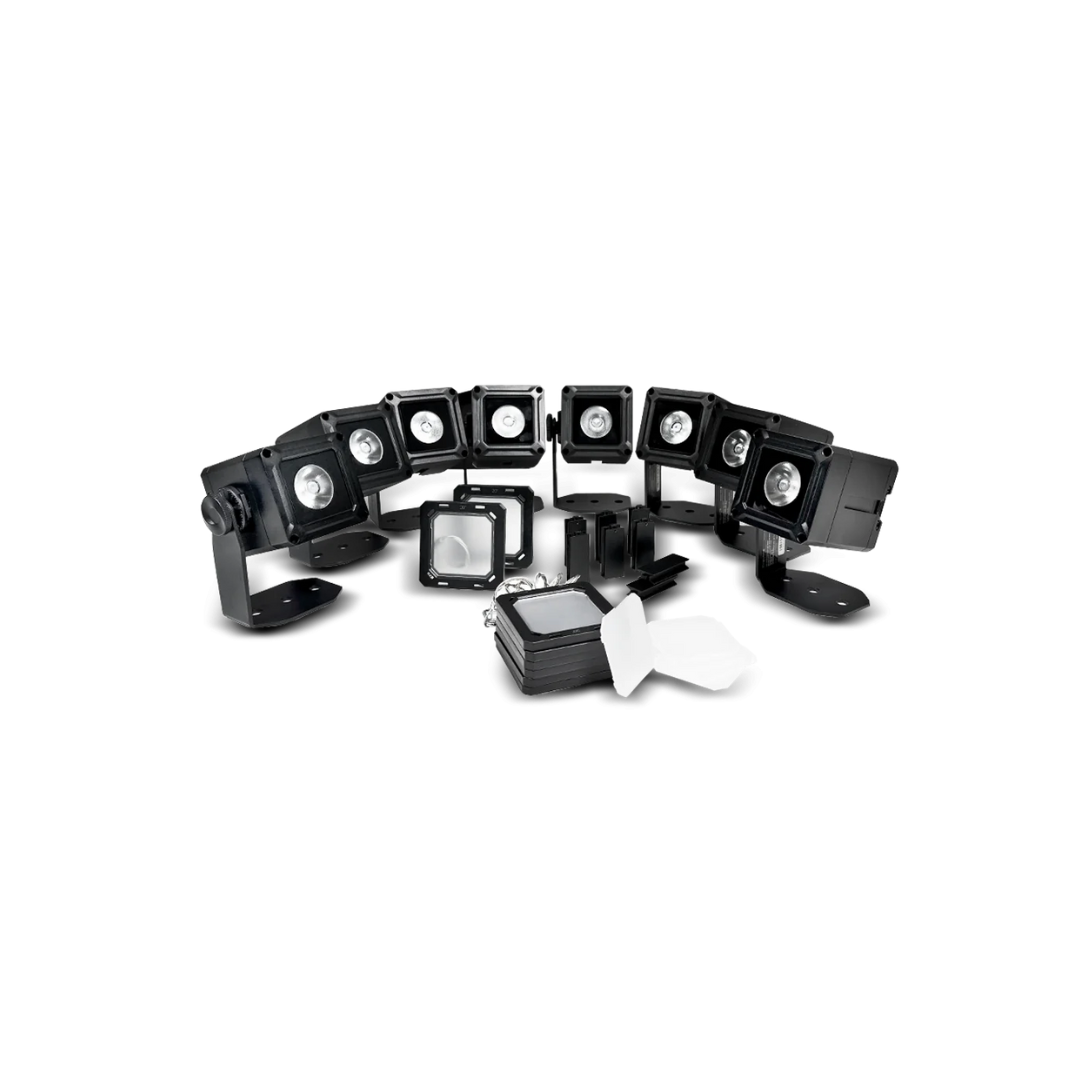

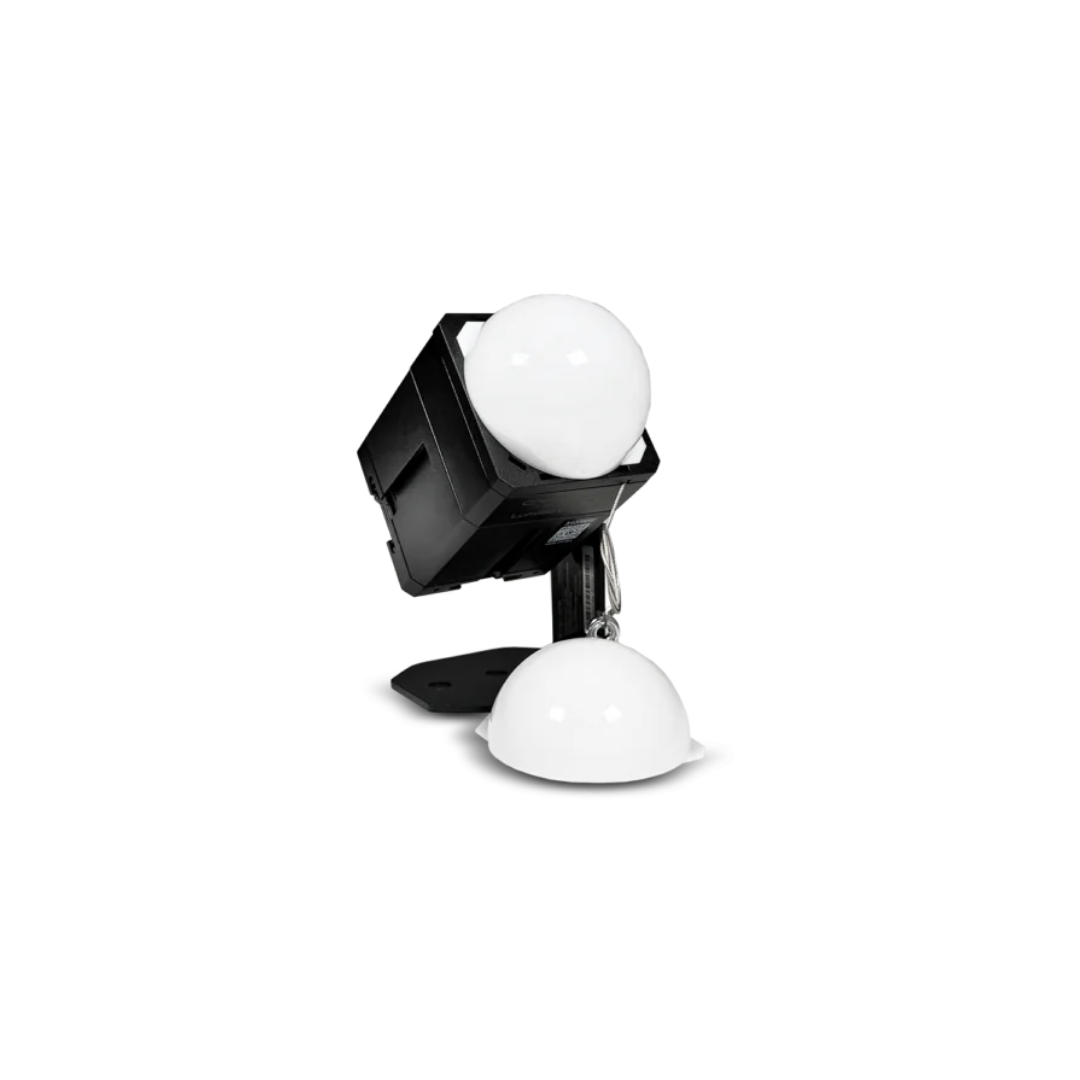

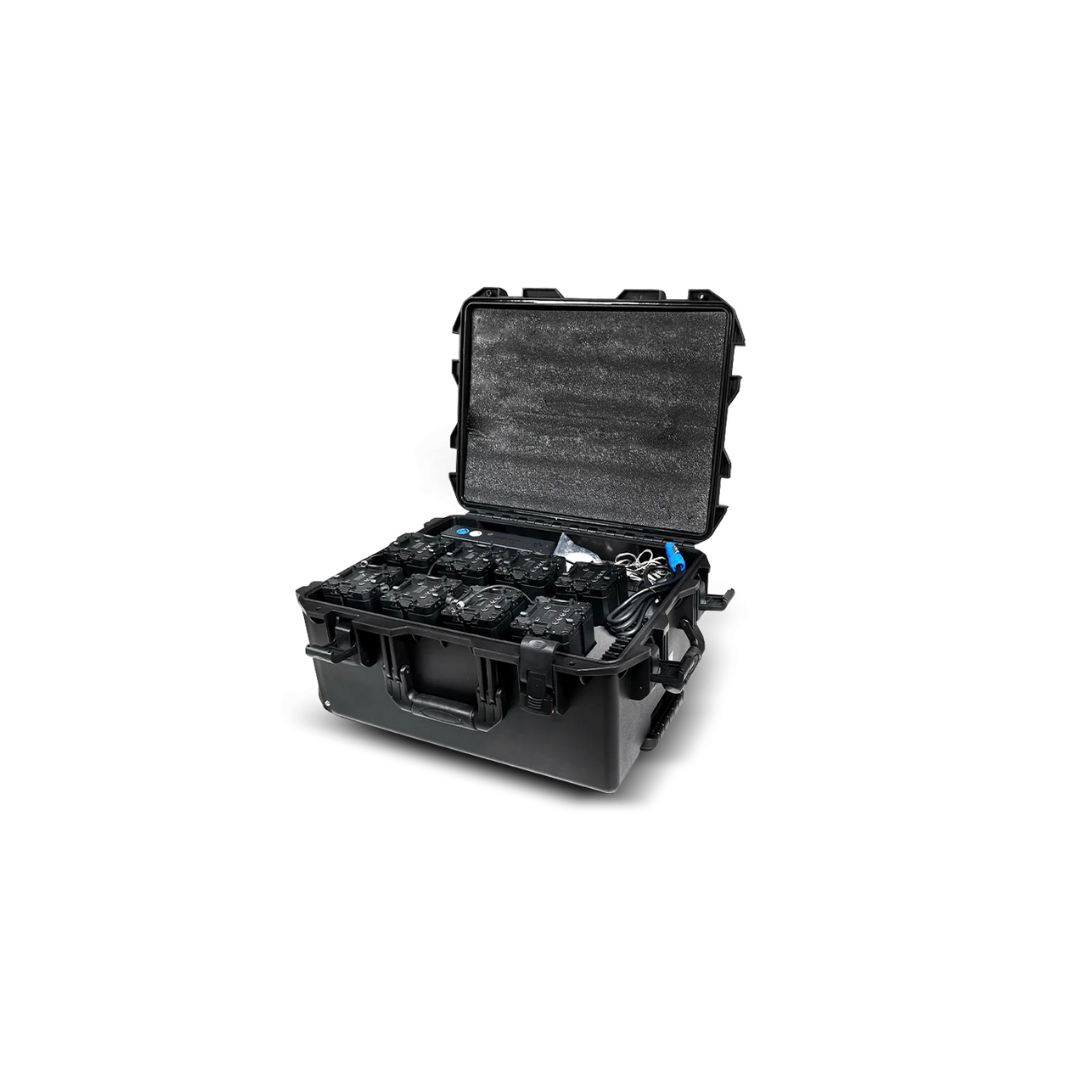

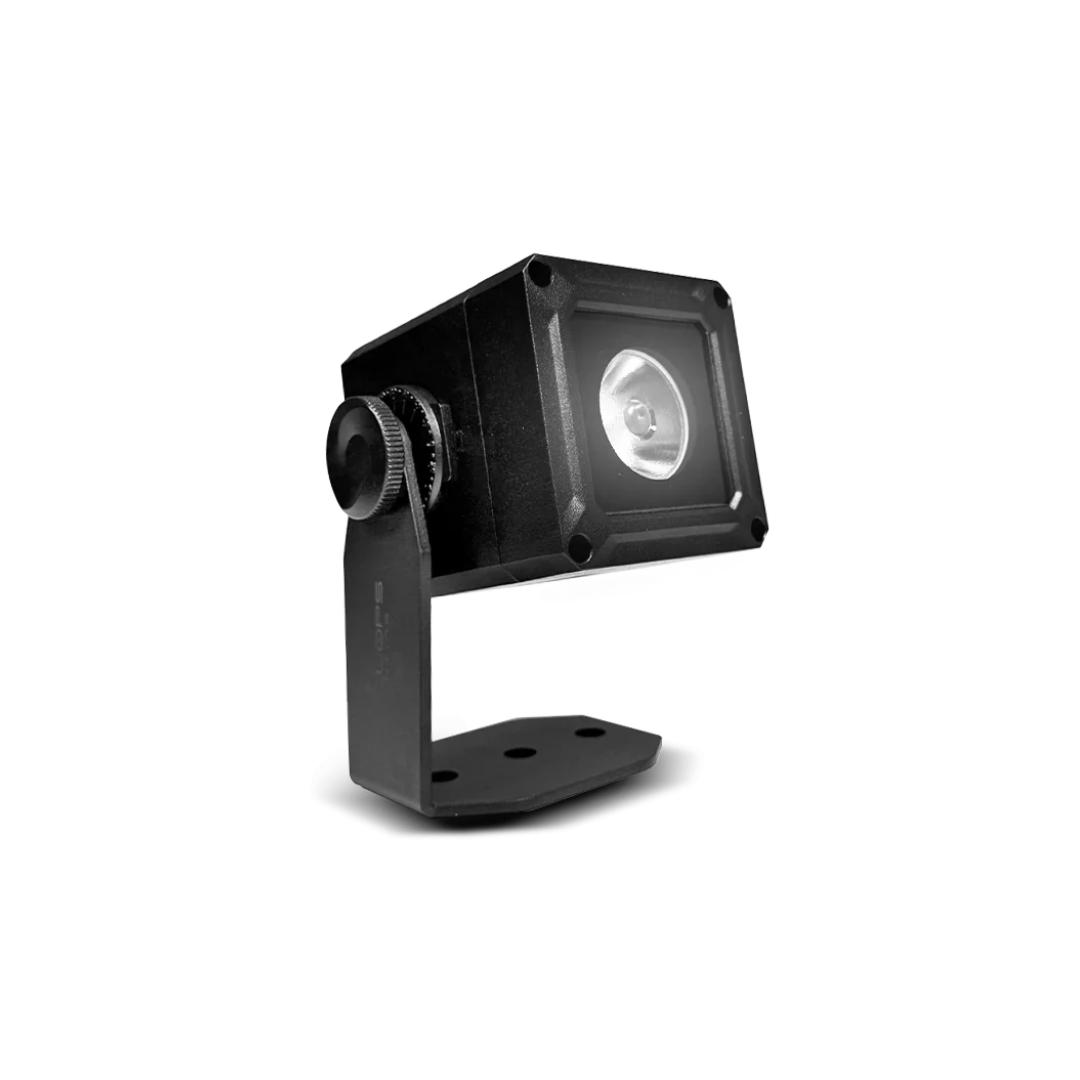

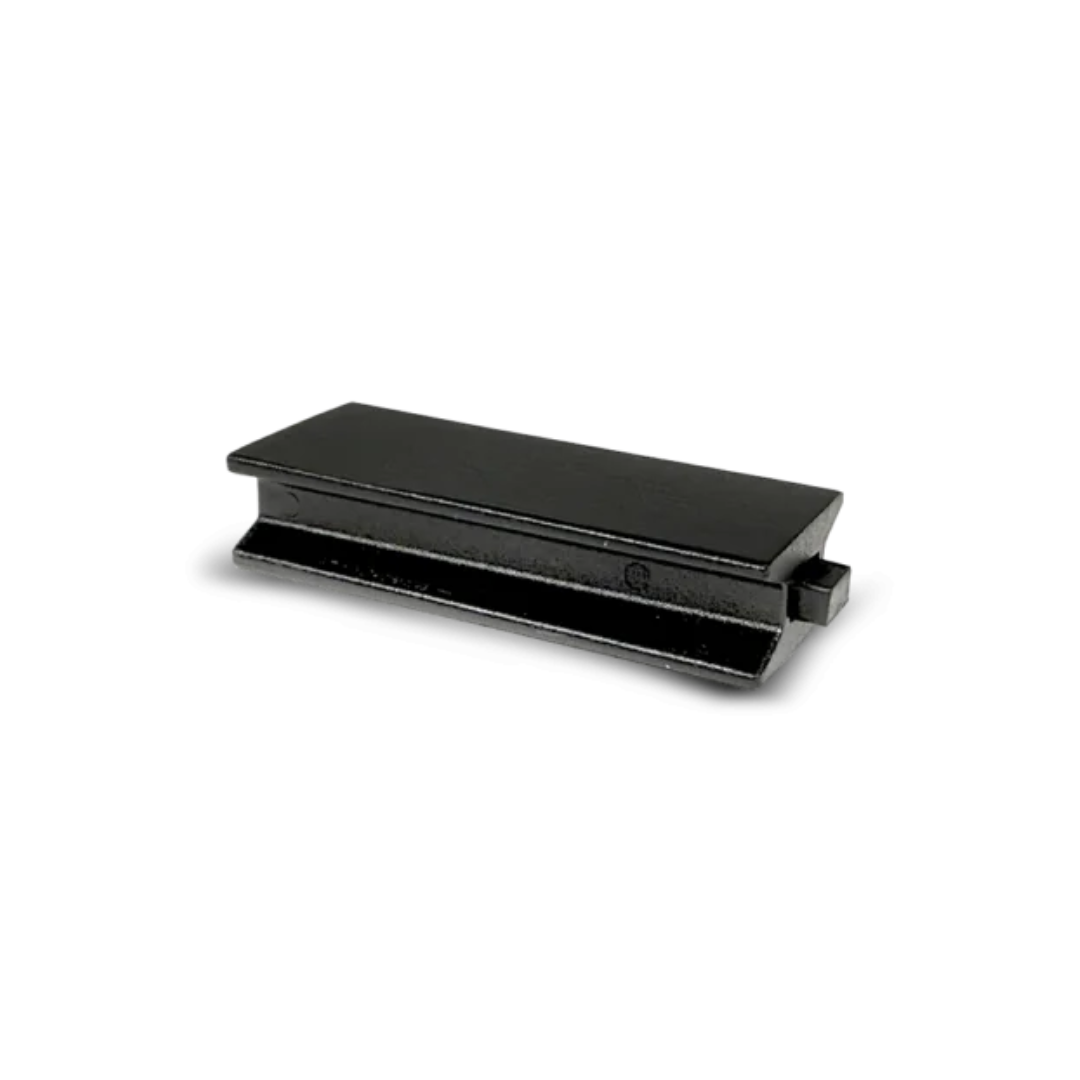

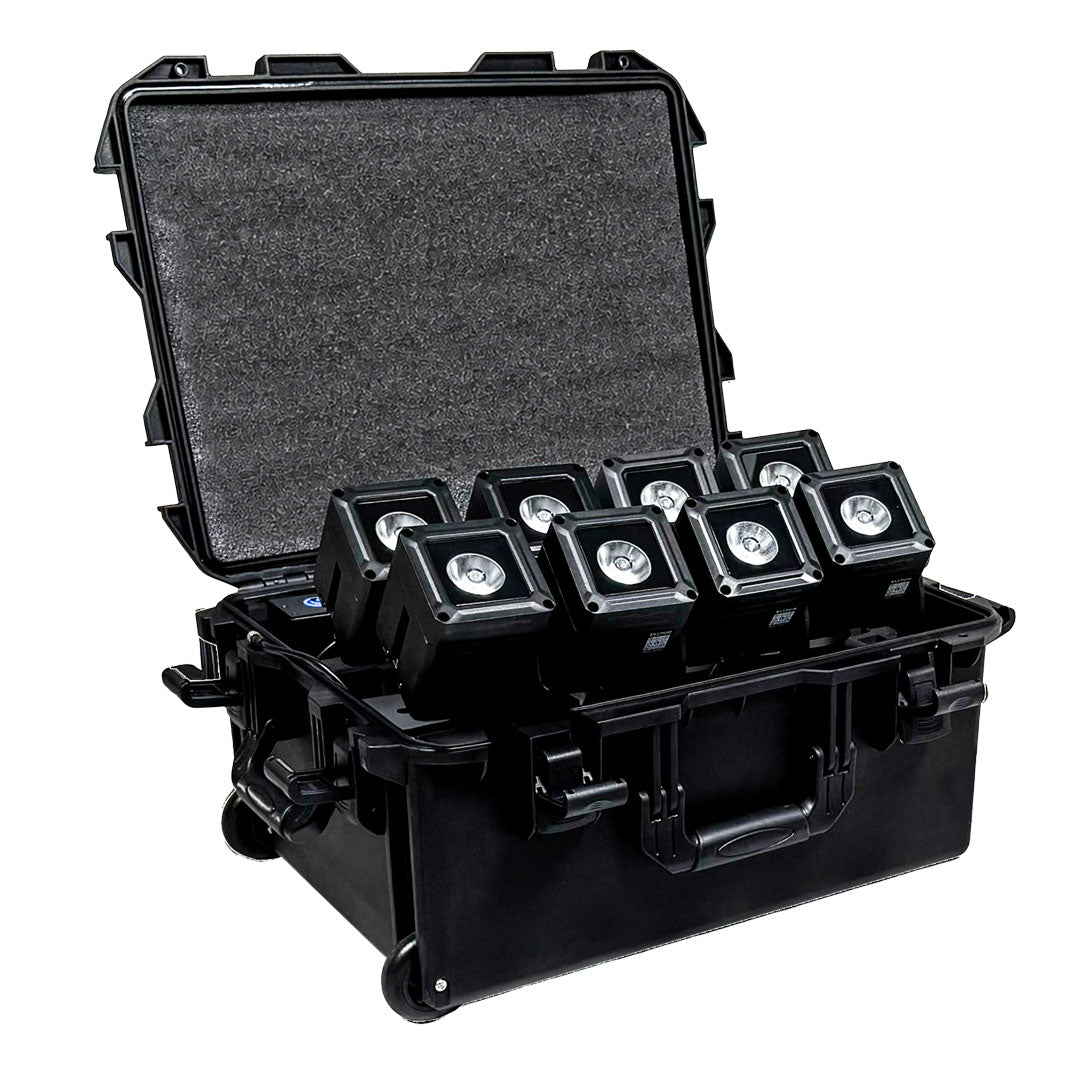

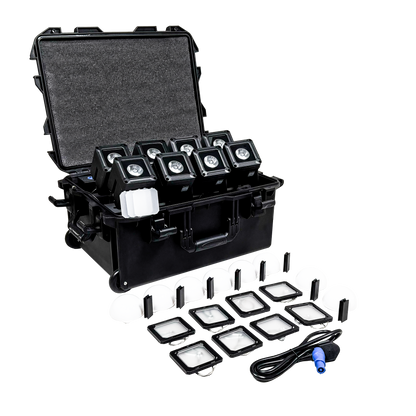

8 x LumiGo™ CUBE120 (LGCUBE120)8 x 20° Magnetic Frost Filter (FF20-LGCUBE)8 x Heavy Frost Filter (FFH-LGCUBE)8 x Dome Softener Diffuser (SD-LGCUBE)8 x Cube Slide Connectors (C2LINE-LGCUBE)1 x Charging Box (LG-CPBX)1 x Hard Case (CASE-LGCUBE)

  • Light source: 1x20W RGBW LED
  • Output:

– Light output all LEDs on:647 lm– Light output red:160 lm– Light output green:250 lm– Light output blue:57 lm– Light output white:373 lm

  • Illuminance:

– Lux @ 2m:2470 lx– Lux @ 5m:395 lx– Lux @ 8m:154 lx– Lux @ 10m:99 lx

  • LED Life expectancy: 50,000 hours
  • Beam angle: 10°
  • Optional Frost filter: 20° (SKU: FF20-LGCUBE – included in kit LGCUBE120-KIT8)
  • Dimmer: 0-100% linear adjustment
  • Four dimming curves
  • Color mixing: RGBW
  • Color temperature adjustments: 3000 to 10000K
  • Electronic Strobe: 0-20 Hz
  • Control Protocols: DMX/RDM, CRMX Wireless DMX, iOs/Android/Windows Application control, Remote control, Manual
  • Channel mode: 2, 3, 5, 8, 11, 15 channels

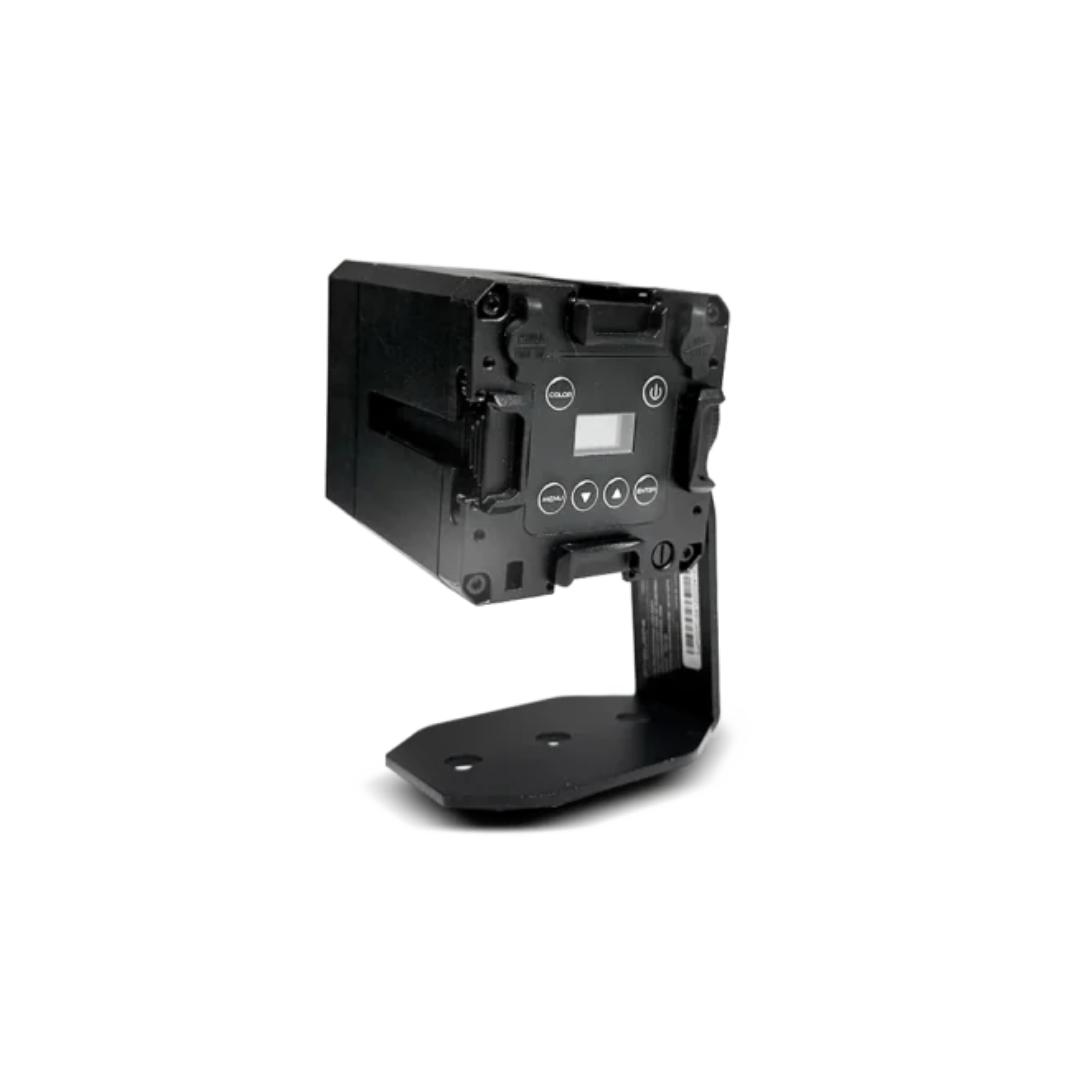

  • Display: LCD
  • Battery Life: Up to 19H
  • Multiple battery usage option: 16 options selection between 4H to 19H with 1 hour increments

– Battery Boost/4H/5H/6H/7H/8H/9H/10H/11H/12H/13H/14H/15H/16H/17H/18H/19H

  • Battery charge time: 4.5H
  • Input voltage Rating: DC 18V-20V
  • Maximum Power consumption: 42W
  • LED PWM Frequency: 600/1.2K/2.4K/4.8K/12K/18K (hz)
  • Material: Aluminum
  • IP Rating: 65
  • IK Rating: IK07
  • Operating Temperature: -20°~50°C
  • Humidity: 98%
  • Dimensions: 120 x 117 x 163 mm
  • Weight: 1.5 Kg
