MA Lighting grandMA3 extension

Name: MA Lighting grandMA3 extension
Brand: MA Lighting
SKU: 4010504
Price: 42292.53 AED
Availability: InStock

Brand: MA Lighting

Categories: grandMA3

SKU: 4010504

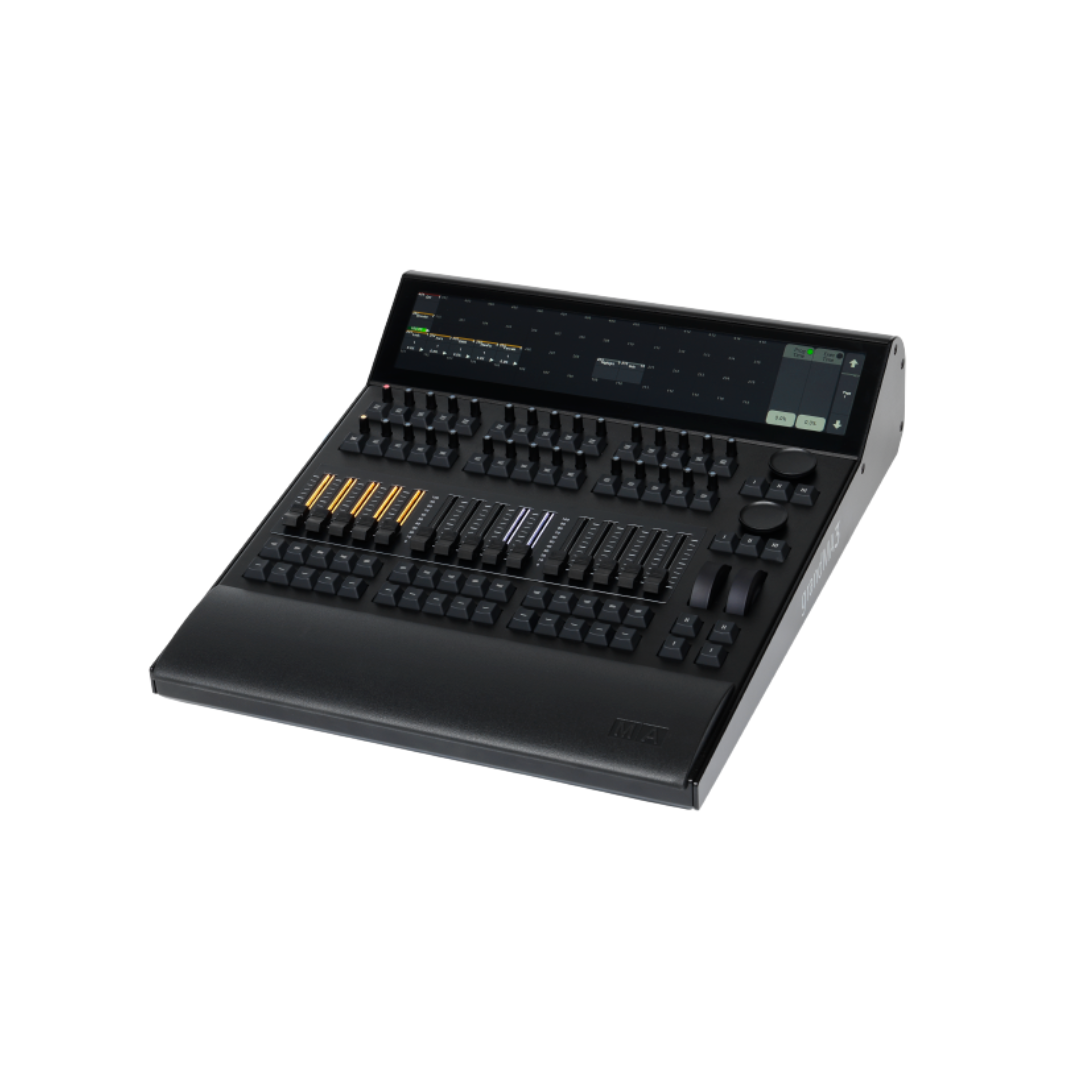

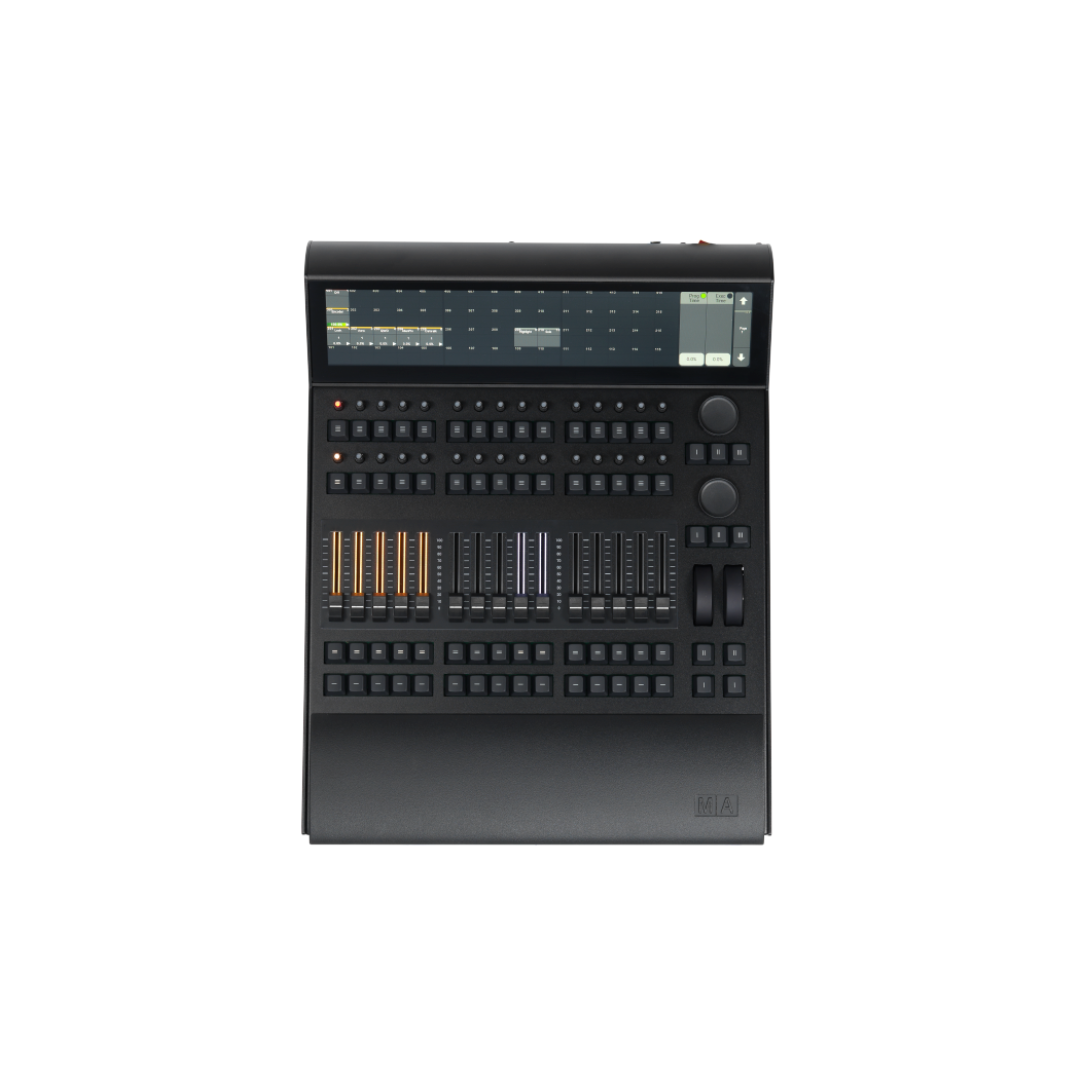

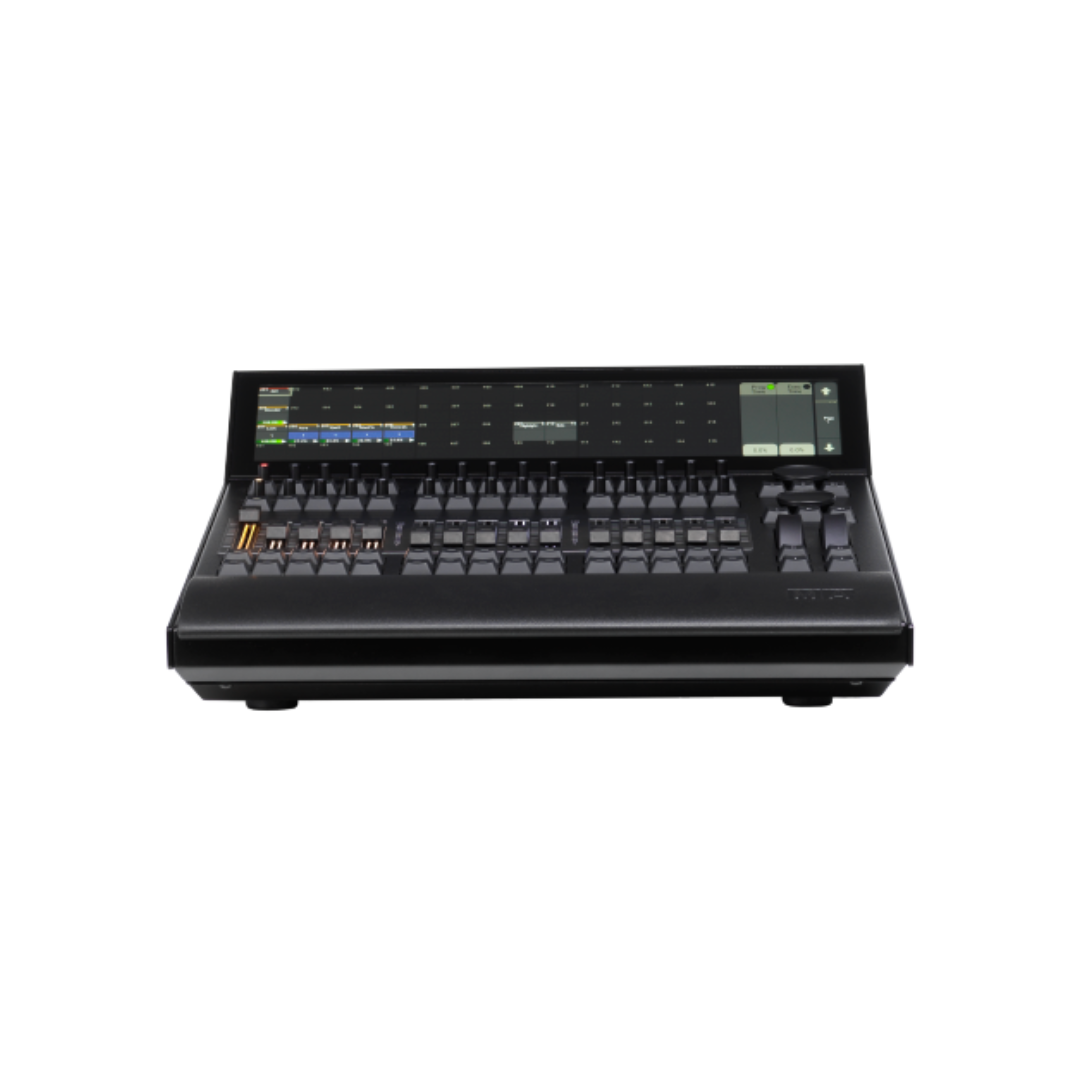

The grandMA3 extension is a remote control solution for grandMA3 full-size, light, and replay units. It features a built-in letterbox screen and connects via Ethernet. With 60 freely configurable playbacks (15 motorized faders, 30 rotary encoders), it's ideal for follow spot operators, keylighting board operators, remote media server live calls, or as a general extension for the main console.

Product variants

Available

Need Help:

Pairs well with

MA Lighting grandMA3 extension

Dhs.42,292.53

Technical Specifications

Description

Features

1 internal letterbox multi-touch screen
2 multipurpose level wheels
2 multipurpose single encoder
30 rotary RGB backlit encoder
15 backlit motorized 60 mm faders
60 separate playbacks
1 etherCON connector
Individually backlit and dimmable silent (clickless) keys

Technical Specifications

PARAMETERS

none

PARAMETERS MODE2

not applicable

OPERATING VOLTAGE/ SUPPLY VOLTAGE

AC 100 – 240 V; 50/60 Hz

POWER

max. 75 VA

OPERATING TEMPERATURE

0 °C up to 40 °C

DIMENSIONS

409 x 537 x 169 mm (width x depth x height)

NET WEIGHT

11 kg

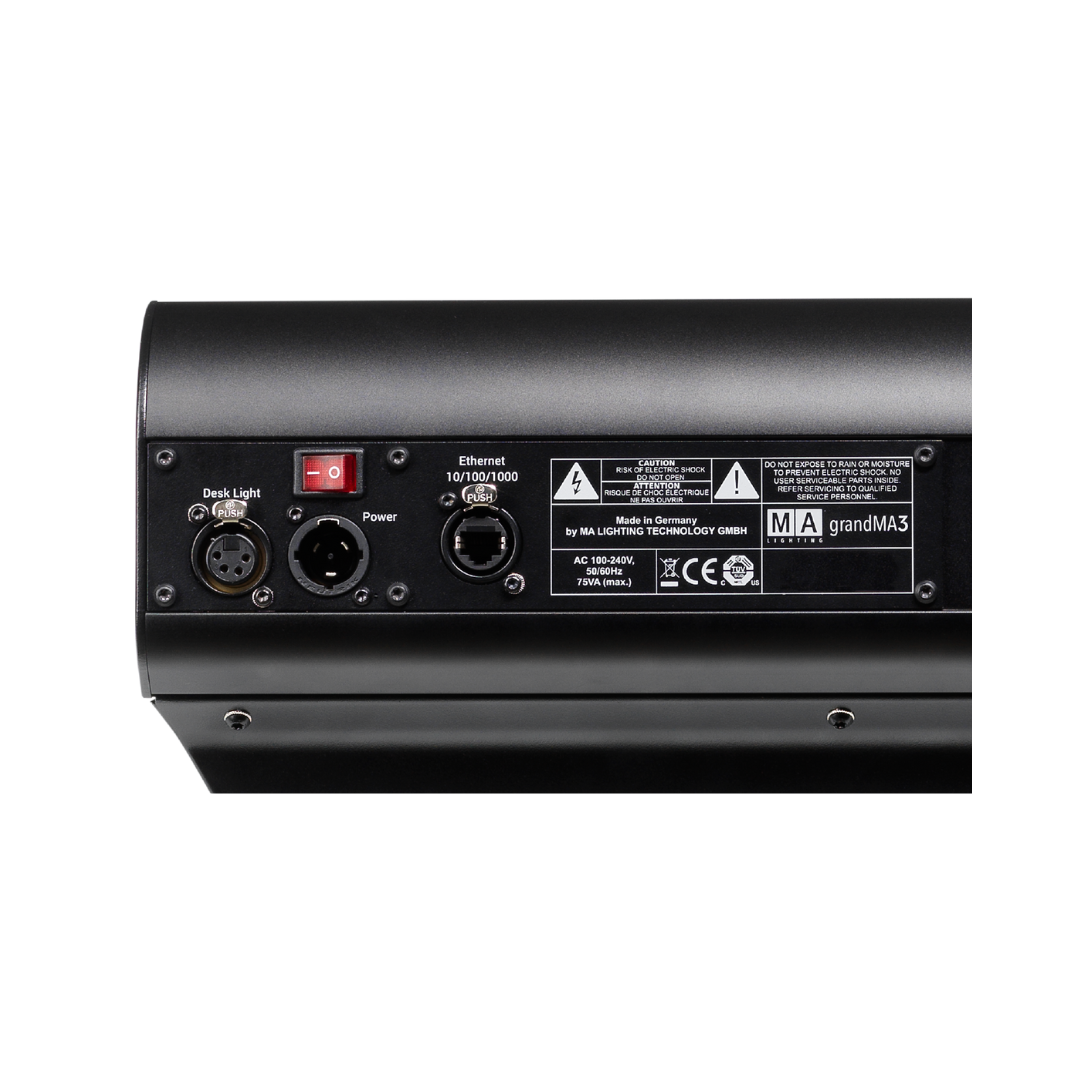

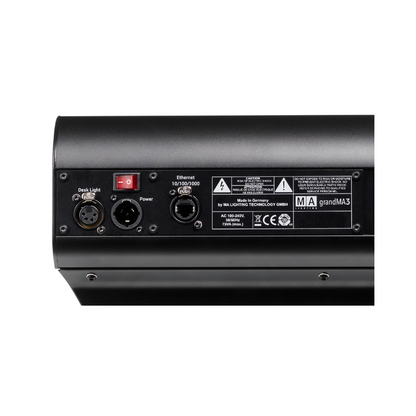

CONNECTORS

1 x powerCON TRUE1
1 x etherCON/RJ45
1 x LED desk light (4pin XLR female)

Downloads

Datasheet_MA_Lighting_grandMA3_extension.pdf
