Technical Specifications

Description

Features

  • Real-time control of 4 096 parameters in combination with grandMA3 onPC
  • Lockable USB-C connector
  • Status LED
  • Robust Aluminium housing
  • Anti-slip strips

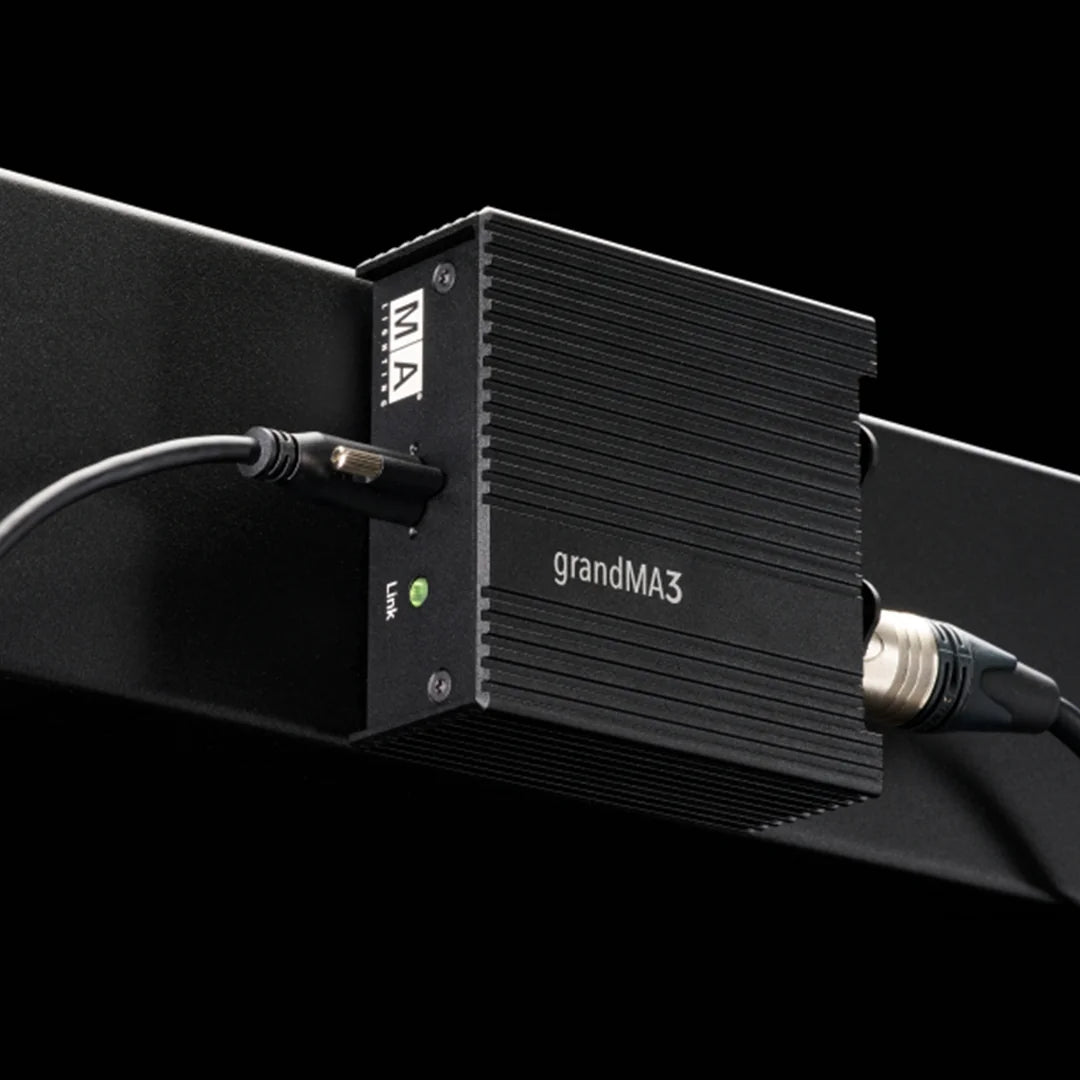

  • Easy mounting with guide rails and screws

Technical Specifications

PARAMETERS

  • 4096 (HTP/LTP)

PARAMETERS MODE2

  • Not Applicable (no Mode2)

OPERATING VOLTAGE/ SUPPLY VOLTAGE

  • USB powered (5 V DC)

POWER

  • max. 2.5 VA

OPERATING TEMPERATURE

  • 0 °C up to 40 °C

DIMENSIONS

  • 0 °C up to 40 °C / 32 °F up to 104 °F

NET WEIGHT

  • 0.24 kg / 8.5 oz

CONNECTORS

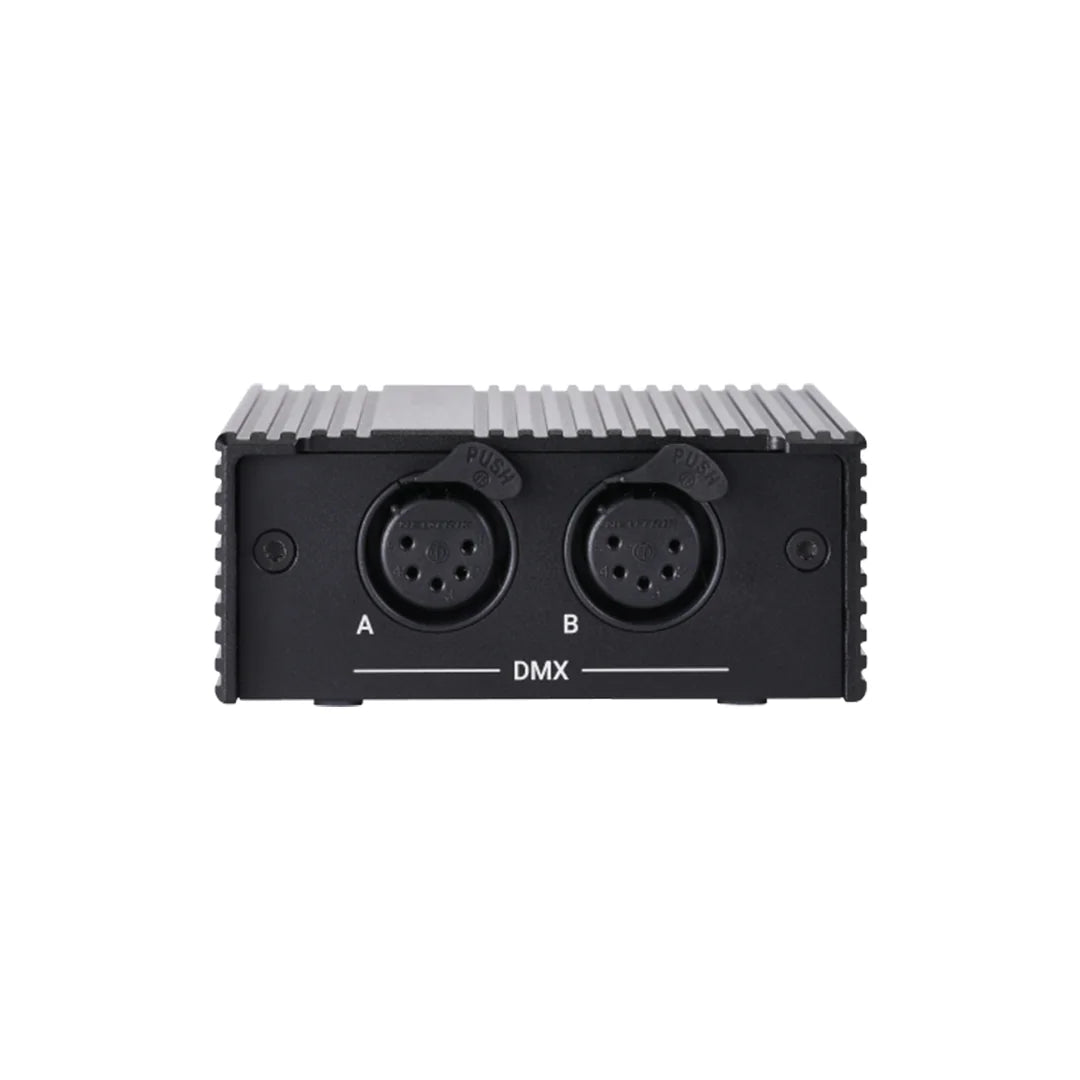

  •  2 x DMX512-A Out (5pin XLR female)

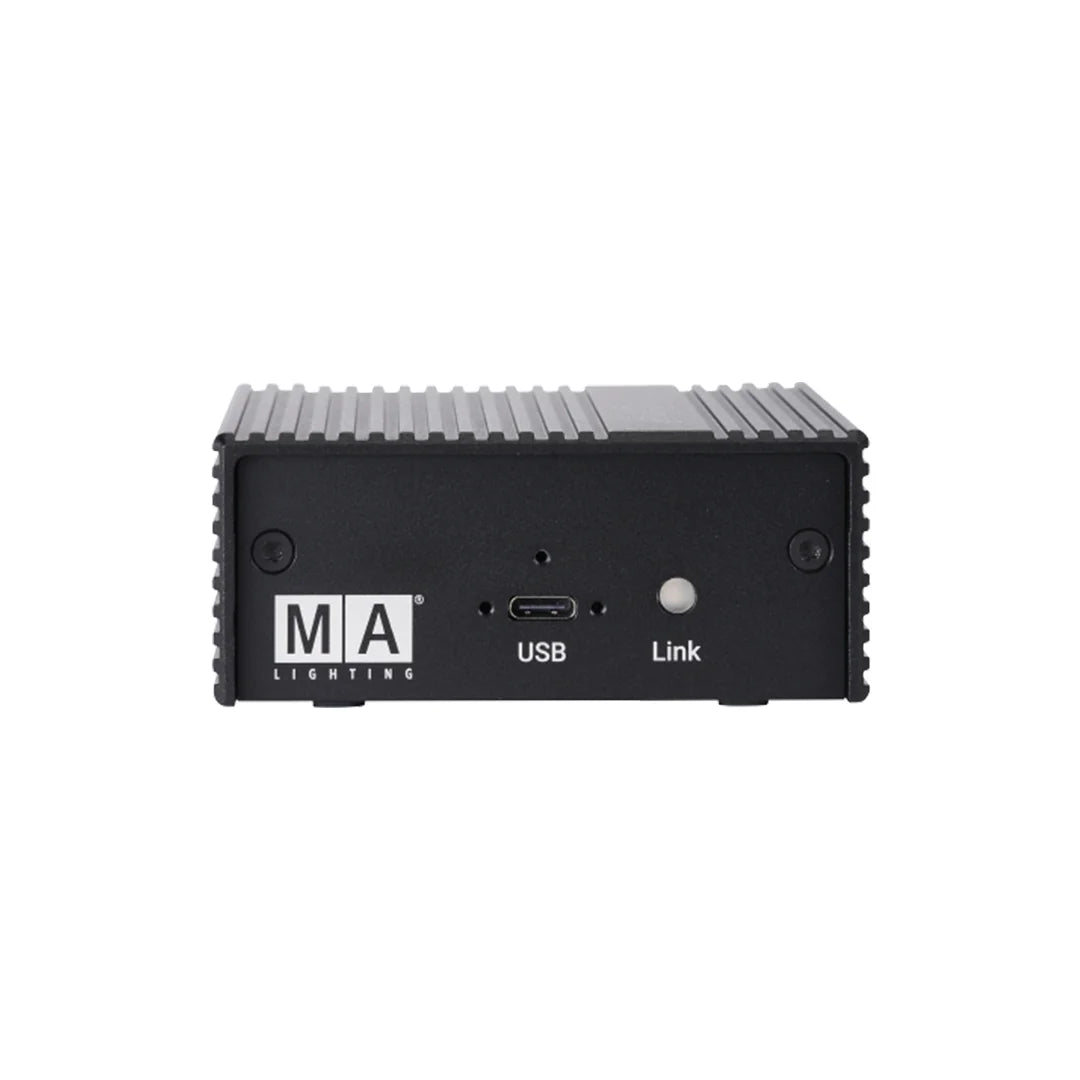

  • 1 x USB 2.0 (type C)
