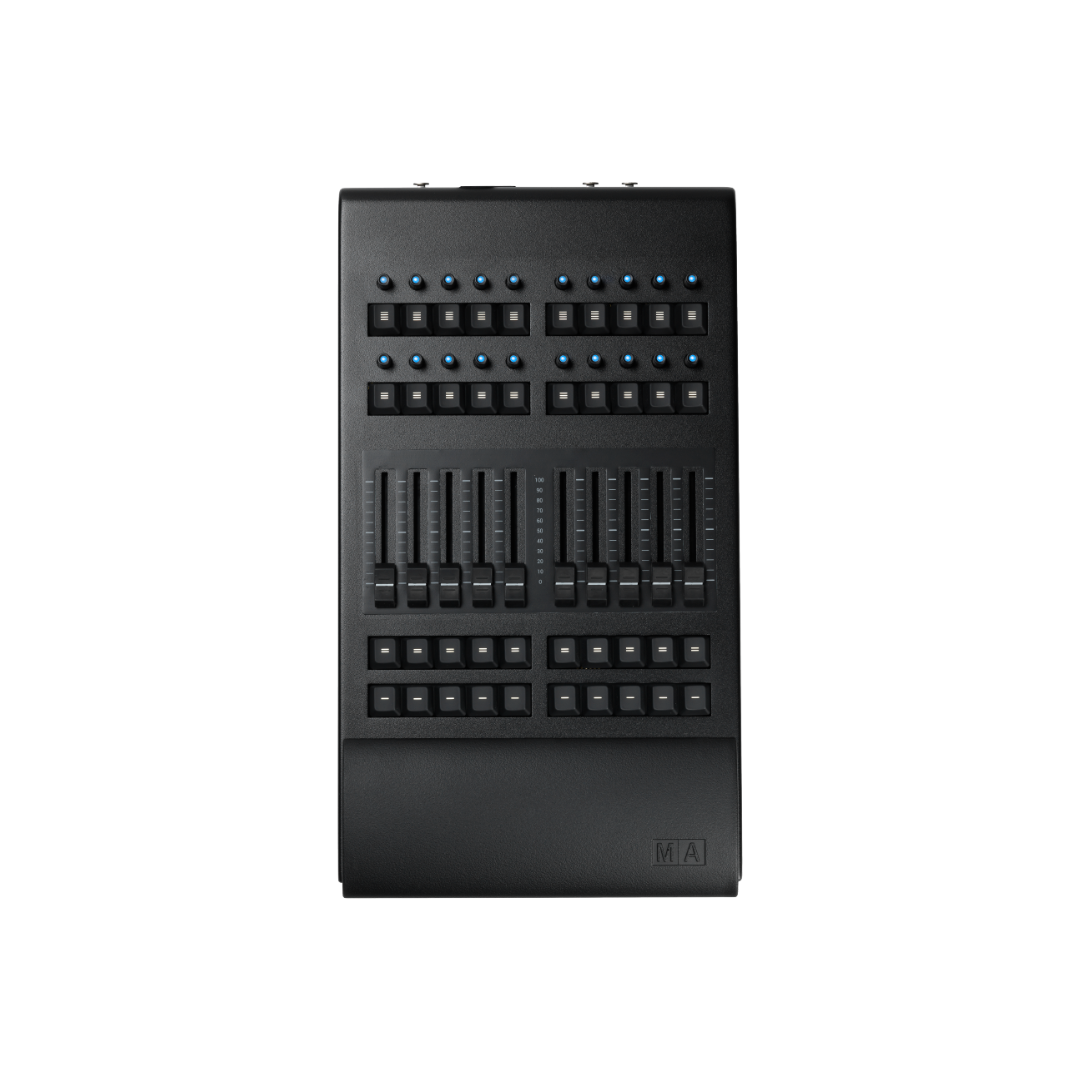

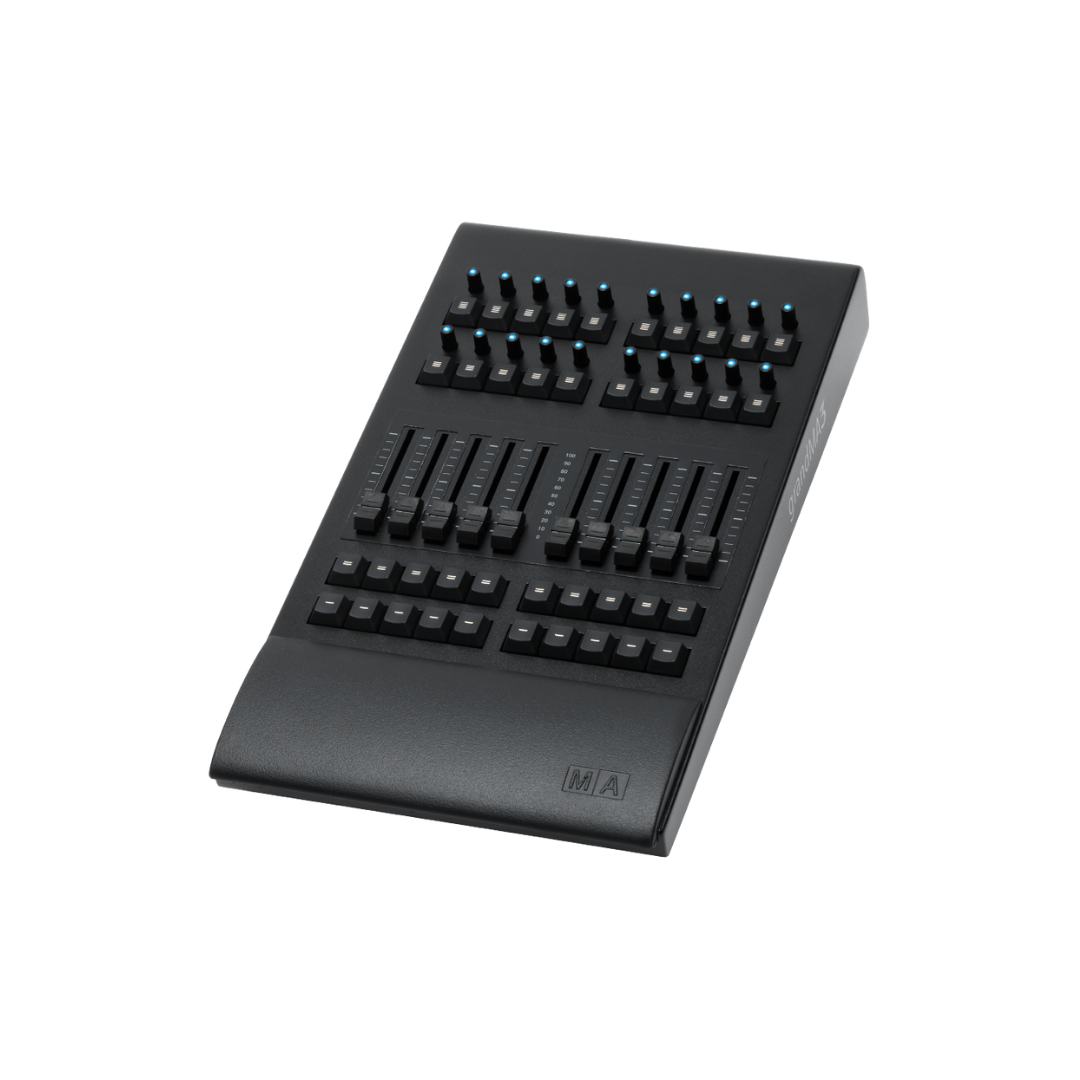

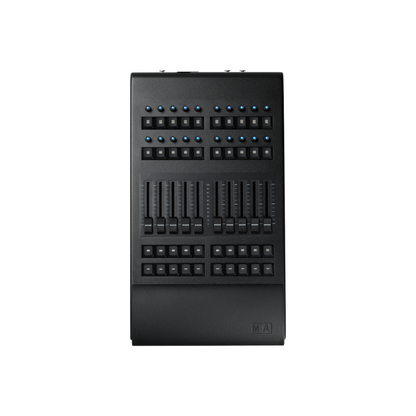

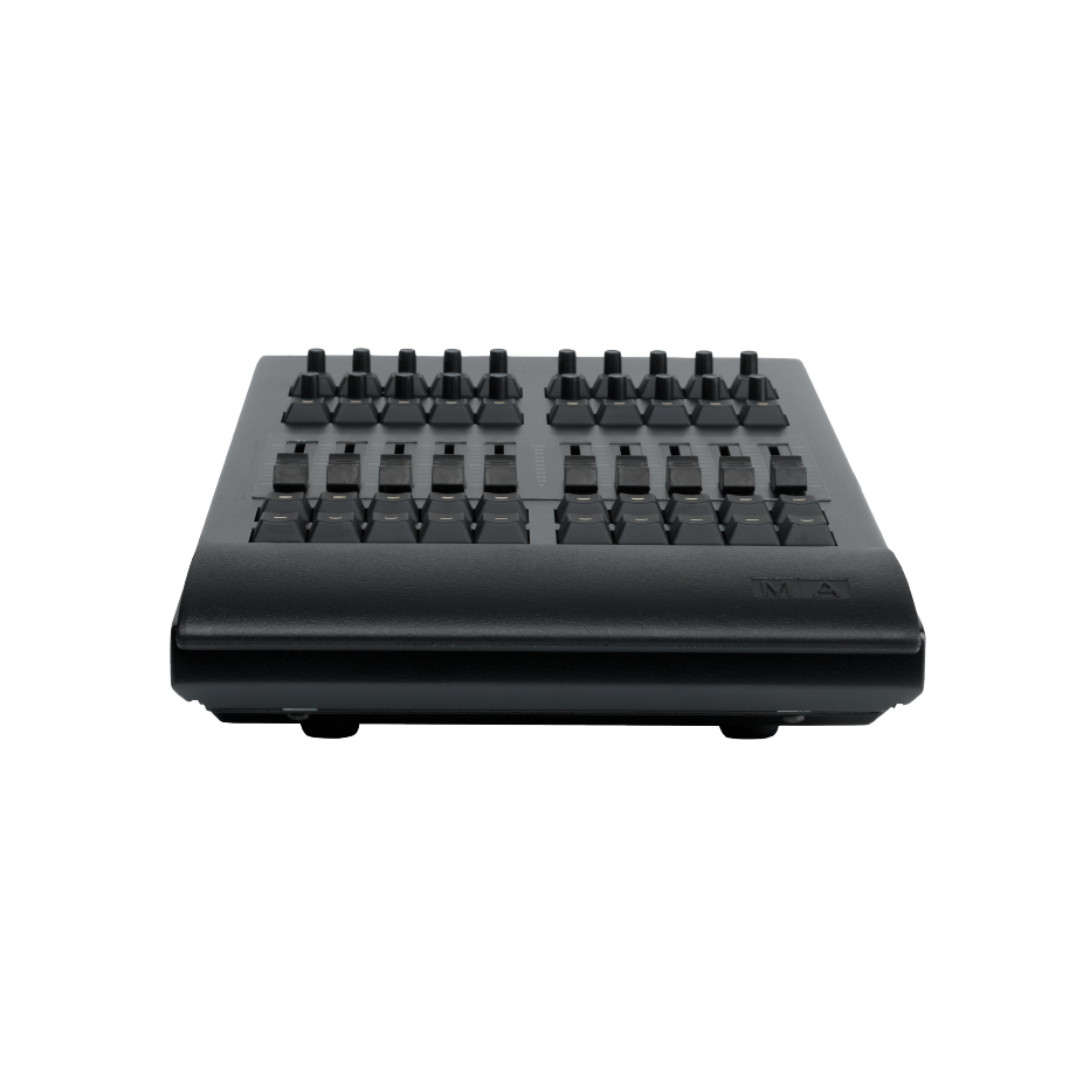

The grandMA3 onPC fader wing is a versatile playback extension for the grandMA3 onPC system. It offers 10 motorized faders and 20 rotary encoders, providing an additional 40 separate playbacks. This wing can be used to expand the playback capabilities of the grandMA3 onPC command wing XT or command wing. The fader wing connects directly to a computer running grandMA3 onPC software via USB and offers two built-in DMX ports for controlling lighting fixtures. It supports up to 4,096 parameters.

Features

• onPC wing for real-time control of 4 096 parameters in combination with grandMA3 onPC
• 2 DMX connectors
• 1 USB connector
• 20 rotary RGB backlit encoder
• 10 motorized 60 mm faders
• 40 separate playbacks
• Individually backlit and dimmable silent (clickless) keys

Technical Specifications

PARAMETERS

• 4096 (HTP/LTP)

PARAMETERS MODE2

• Not Applicable (no Mode2)

OPERATING VOLTAGE/ SUPPLY VOLTAGE

• AC 100 – 240 V; 50/60 Hz

POWER

• max. 50 VA

OPERATING TEMPERATURE

• 0 °C up to 40 °C

DIMENSIONS

•  240 x 427 x 102 mm (width x depth x height)

NET WEIGHT

• 5 kg

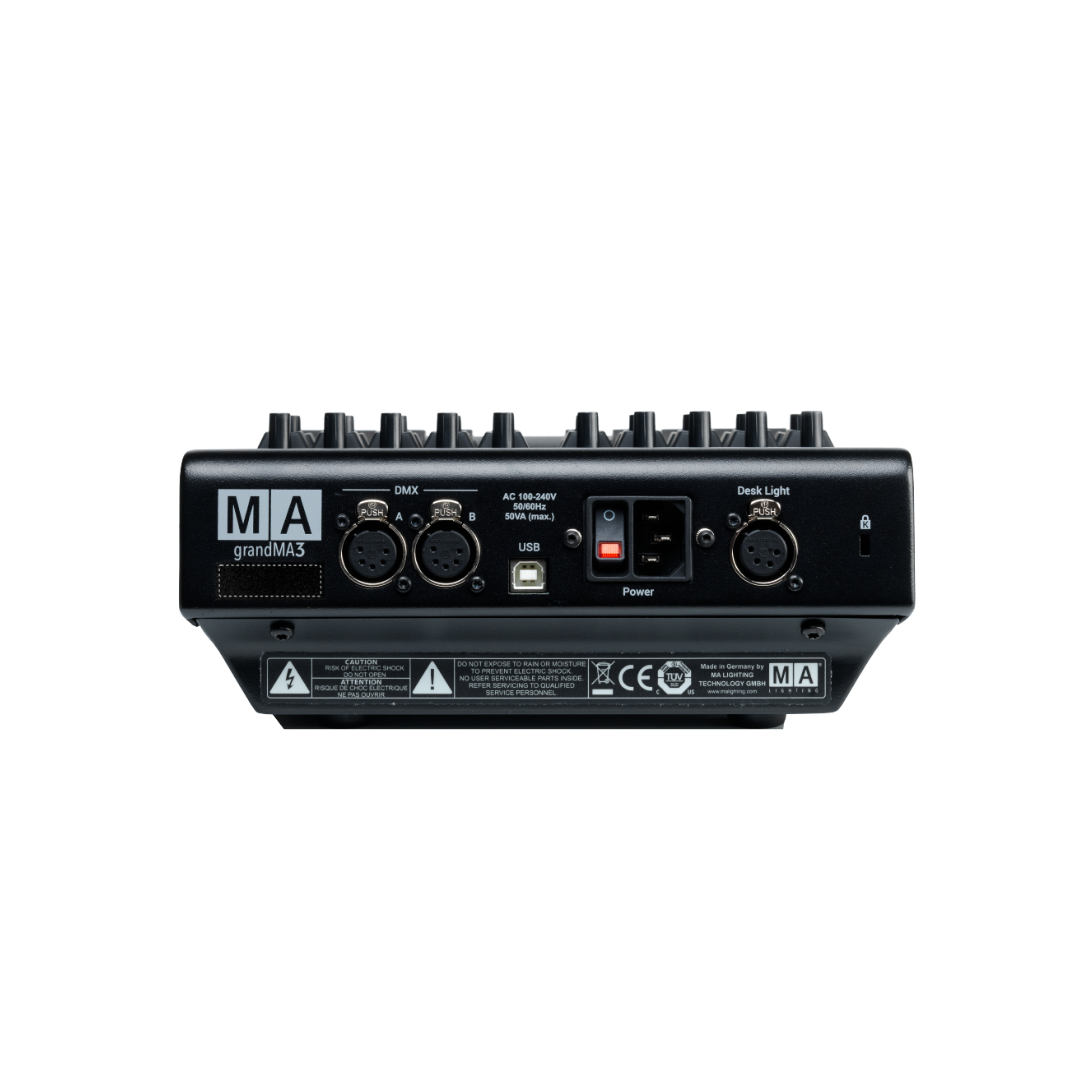

CONNECTORS

•  1 x IEC-60320 C14 cord
• 2 x DMX512-A Out (5pin XLR female)
• 1 x USB 2.0 (type B)
• 1 x LED desk light (4pin XLR female)
