OPTICS

• 13-element 21:1 zoom high-resolution optic system
• Beam aperture: 0.7° to 15°
• Fast motorised linear zoom
• Tempered anti-reflective coated lenses
• 250 mm frontal lens for greater performance

LIGHT SOURCE

• Luminous flux: 2,600,000 lux at 10 m
• Colour temperature output: 6500 K
• Rated life (L70): up to 12,000 hours
• Speckle-free source

MOVEMENT

• Highly accurate positioning
• Moving-head operated via either 8- or 16-bit resolution
• High-resolution stepper motors operated via microprocessors to ensure extreme accuracy and smooth movement
• Pan and tilt automatic repositioning
• Moving-head range: infinite pan and tilt rotation

COLOURS

• Sophisticated colour mixing system providing CMY color mixing
• Fixed colour wheel with progressive CTO, 15 complementary colour filters, 2 multicolour filters and 3 coloured animation sections

GOBOS

• One indexable rotating gobo wheels with 12 glass gobos, plus open position
• Adjustable-speed rotating gobo in both directions
• Fixed multi-position gobo wheel with instant access to 80 metal gobos
• Gobo diameter: 6.9 mm
• Image diameter: 4.0 mm

 FROST

• 2 frost filters : one light, one heavy

EFFECTS

• Monochromatic graphical animation effects wheel with continuous rotation in both directions
• 2 set of 4 combinable rotating and indexable prisms
• 2 extra set of 2 combinable rotating and indexable prisms

DIMMER / STROBE

• Electronic dimmer, allowing perfect light adjustment from 0 to 100% without colour variation
• Strobe effect, with speed adjustment from 1 to 25 flashes per second

SOFTWARE FEATURES

• Local DMX addressing of luminaire and optional parameters through its built-in LCD control panel
• Remote DMX addressing of luminaire and optional parameters through a standard RDM DMX controller
• Information menu including hour counter, temperature, software version

HARDWARE FACILITIES

• Graphic LCD display for addressing and special functions settings, with flip function
• 5 menu buttons to set functions
• Excess temperature protection
• Integrated wireless CRMX TiMo RDM receiver from LumenRadio
• IP65 XLR 5 pin male and female connectors for DMX connection
• IP65 RJ45 IN / OUT connectors for ArtNet connection
• IP65 PowerCON TRUE1 TOP male connectors for power connection

CONTROL

• DMX 512 protocol, through DMX cable or a wireless system
• DMX-RDM compatible
• Stand-alone mode and Master/Slave modes
• ArtNet & sACN protocol through Ethernet cable
• Local control panel, with IP65 LCD display
• Footprint of 47 DMX channels

POWER SUPPLY

• Electronic supply with active PFC
• 100 to 240 Volts – 50/60Hz
• Power: 800 W maximum

COOLING SYSTEM

• Advanced liquid cooling system
• Self-adjusting variable speed fans for quiet operation (Auto mode)
• Selectable ventilation user modes with a new Silent Mode
• Safety protection against excess temperature

HOUSING

• Moving-head skeleton made of aluminium and steel metal plates
• Base in die-cast aluminium
• Heatsinks in aluminium and copper
• Moulded covers in self-extinguishing fire retardant ABS PC (V0 class)
• Two-side handles for transportation
• Four heavy-duty feet for better stability
• IP65 protection rating
• Exterior finish: black (Carbon)

INSTALLATION

• Fastening bracket system: two Omega ¼ turn brackets designed for use with standard clamps
• Mounting points: four ¼ turn locking fittings allowing installation of Omega brackets on luminaire
• Safety cable attachment point

OPERATING PARAMETERS

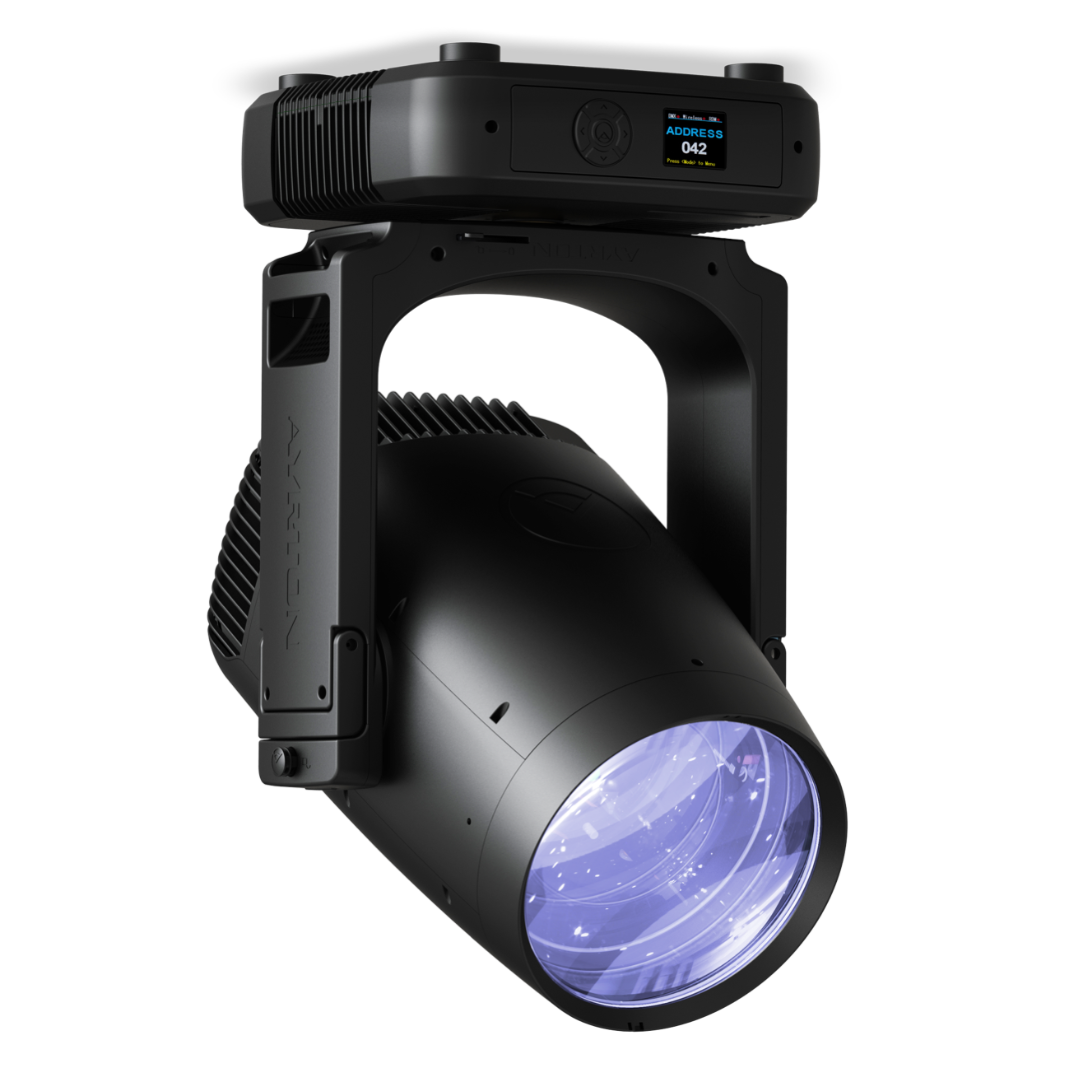

• Operating positions: all (device on floor or fixed to a support)
• Maximum permitted ambient temperature (Ta max): 45° C (113° F)
• Minimum permitted ambient temperature (Ta min): -20° C (-4° F)
• Minimum usage distance: 35 m (114.83 ft).

COMPLIANCE

• EU (EMC & LVD)
• EMC Directive 2014/30/EU
• LVD Directive 2014/35/EU

SIZE

• Product: 404 x 747 x 368 mm (l x h x d)
• Flight-case foam: 680 x 640 x 500 mm (l x h x d)

WEIGHT

• Product: 41 kg
