Specifications

• Maximum fog output: 100 m3 (3,531 ft3) per minute
• Fluid consumption: 1 L (30 oz / 0.26 US gallon) per hour at 2.76 bar / 40 psi
• Gas type: CO2 or N2
• Gas consumption: 1 kg (2.2 lb) per hour at 2.76 bar / 40 psi

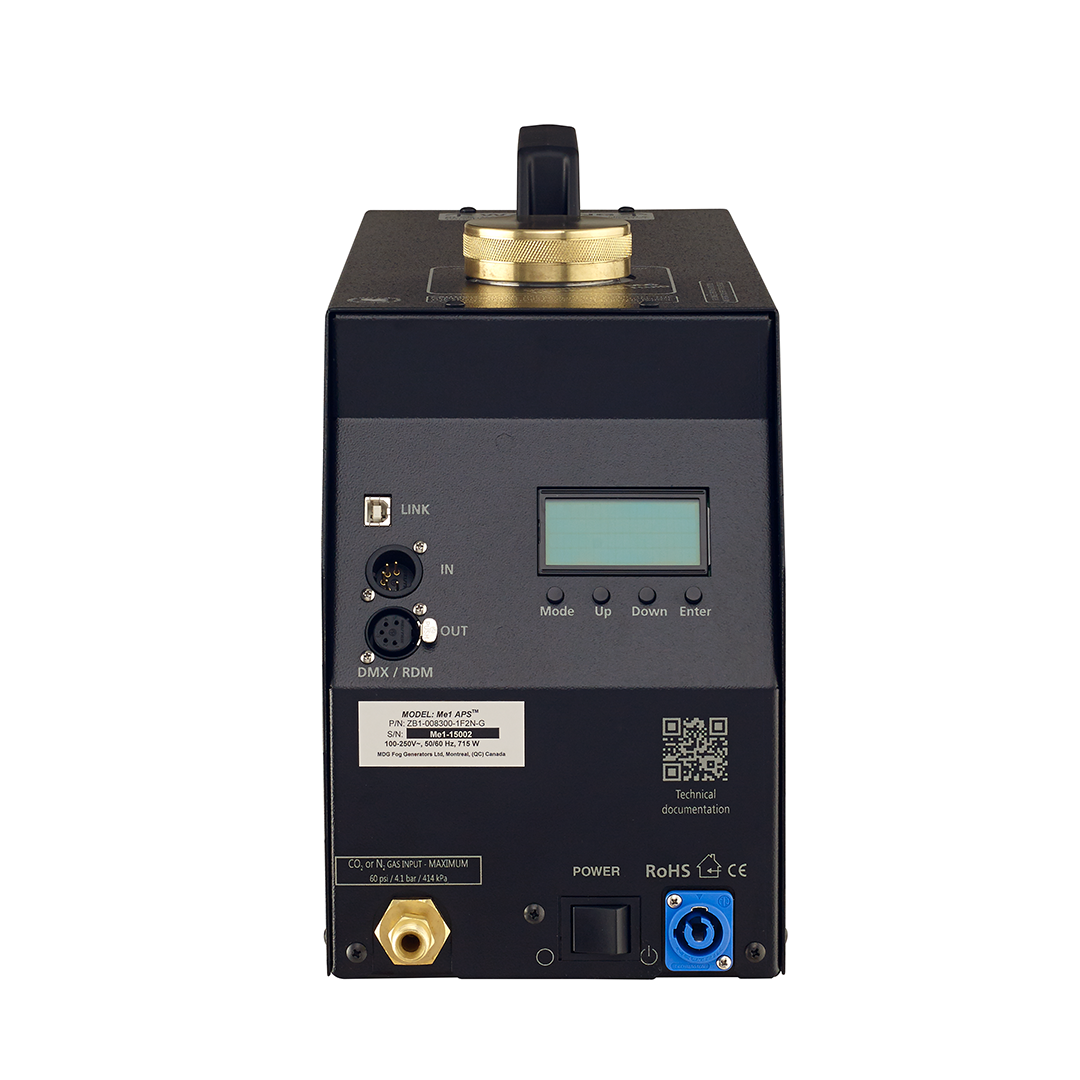

• Control: 4-button LCD user interface, 3 standard DMX512 channels, XLR-5 connectors, RDM compliant.
• Reservoir capacity: 2.5 L (0.66 US gallon)
• APS™ (Automatic Purging System): Standard
• Fog colour: Pure white
• Particle size: 0.5 - 0.7 microns
• Warm-up time: 8 minutes (maximum)
• Fluid type: MDG Neutral
• Operating voltage: 100 - 250 VAC, 50/60 Hz single phase
• Power consumption: 715 W

Dimensions

• Length: 61 cm (24”)
• Width: 18 cm (7”)
• Height: 30 cm (12”)
• Weight: 15.62 kg (35 lb)
• Shipping weight: 29.12 kg (64 lb) with flight case
• Approval: CB, CSA and UL Certified. CE Declaration
