Product

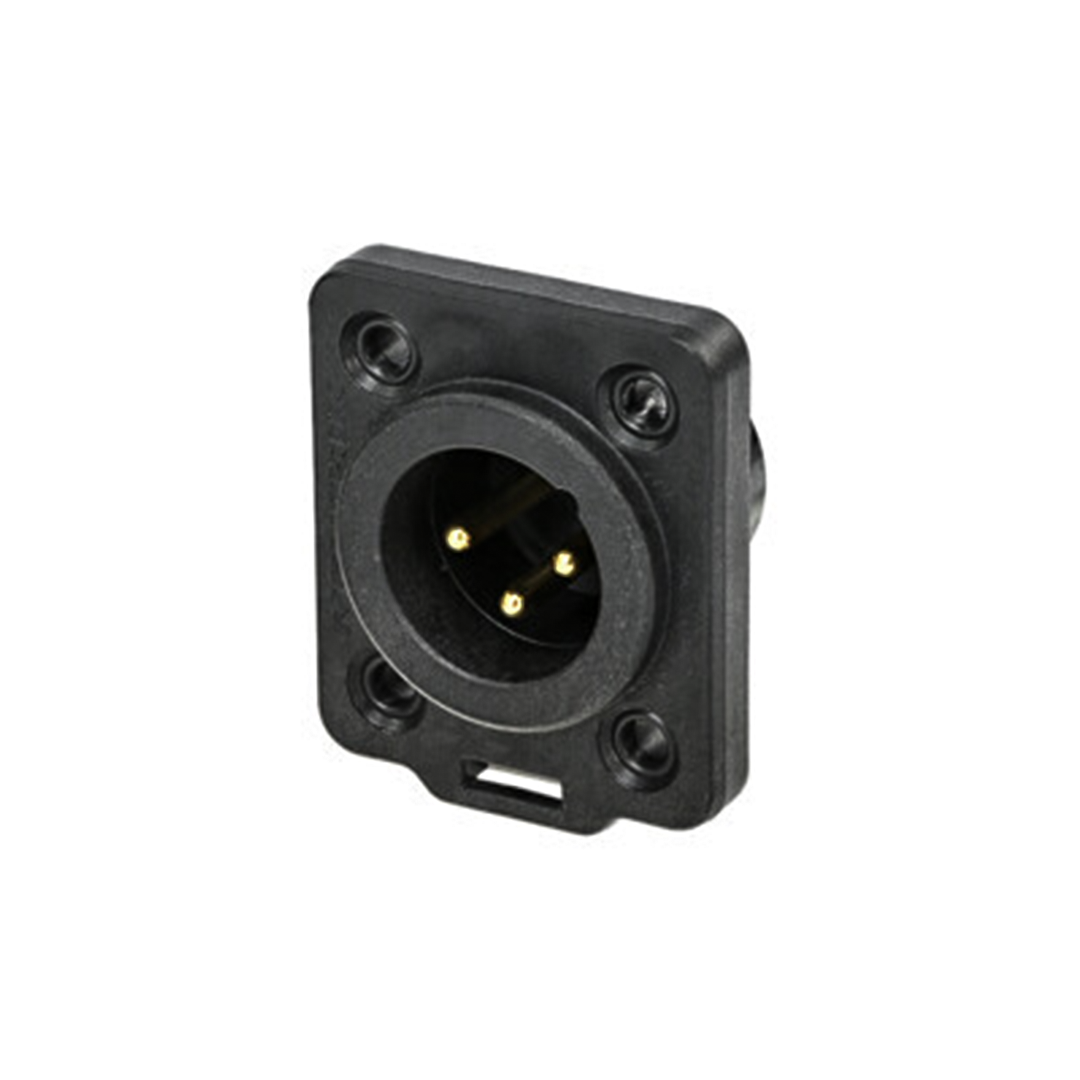

• Title: NC3MDX-TOP
• Connection Type: XLR
• Gender: Male

Electrical

• Capacitance between contacts: ≤ 4 pF
• Contact resistance: ≤ 5 mΩ
• Dielectric strength: 1.5 kV DC
• Insulation resistance: > 10 GΩ (initial)
• Rated current per contact: 16 A
• Rated voltage: < 50 V

Mechanical

• Insertion force: ≤ 20 N
• Withdrawal force: ≤ 20 N
• Lifetime: > 5000 mating cycles
• Wiring: Solder contacts
• Locking device: Latch lock
• Mounting direction: Front mounting
• Chassis shape: D

Material

• Contact plating: 0.2 µm Au over 2 µm Ni
• Contacts: Brass (CuZn39Pb3)
• Insert: Polyamide (PA 6.6, 30% GR)
• Locking element: Stainless steel
• Gasket: TPE
• Shell: Polyamide (PA 6.6, 30% GR)

Environmental

• Flammability: UL94 V-0
• Standard compliance: IEC 61076-2-103
• Protection class: IP65
• Solderability: Complies with IEC 68-2-20
• Temperature range: -30 °C to +80 °C
