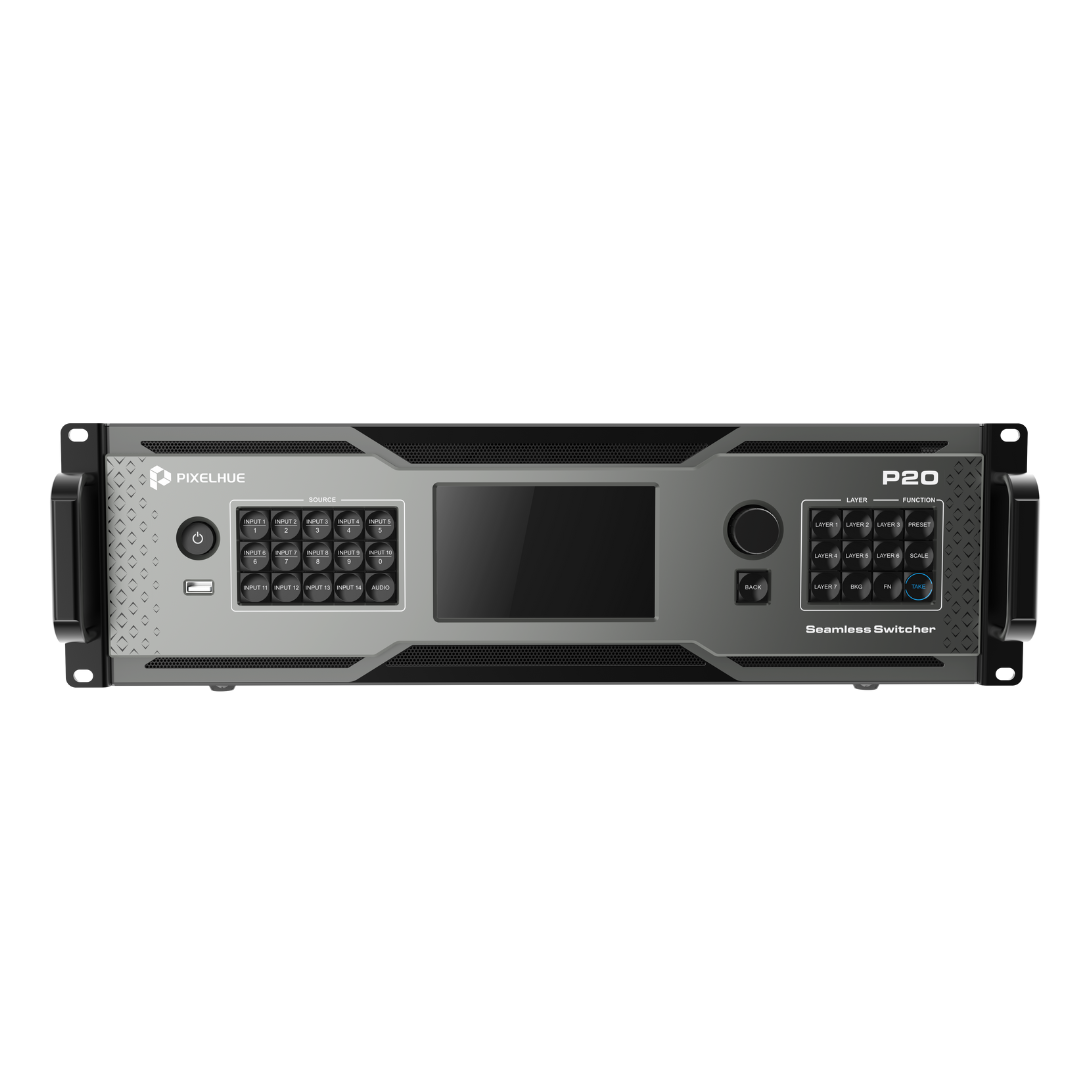

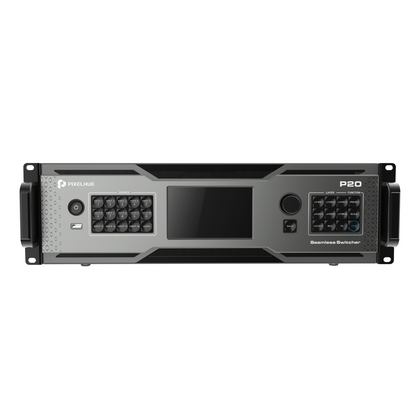

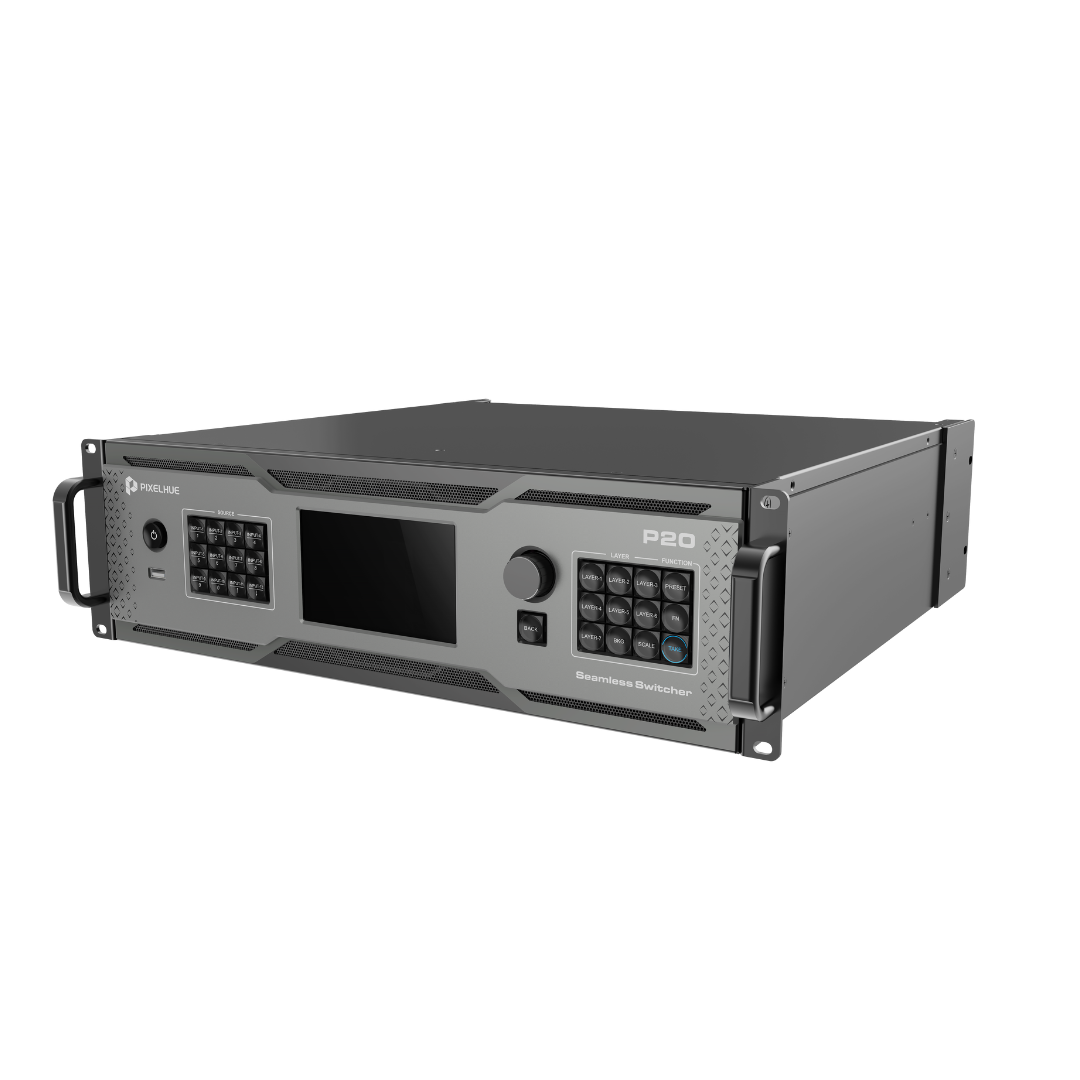

P20 Presentation Switcher

Name: P20 Presentation Switcher
Brand: Pixelhue
SKU: P20
Price: 40940.58 AED
Availability: InStock

Brand: Pixelhue

Categories: Pixelhue Video Processing Solutions

SKU: P20

The Pixelhue P20 is one of the new, compact 4K video switchers from PIXELHUE. The device processes 4K video signals without any problems and is equipped with a variety of different inputs and outputs.

Product variants

Available

Need Help:

Pairs well with

P20 Presentation Switcher

Dhs.40,940.58

Technical Specifications

Description

HARDWARE FEATURES

Inputs

8x DP 1.2 / HDMI 2.0
4x 12G-SDI

Outputs

8x HDMI 2.0

Layers

3x 4K@60Hz & 4x 2K@60Hz or 4x 4K@60Hz

Controlling

Event controller U5 / U5 Pro
PixelFlow Software
Stream Deck support

Other features

1x HDMI 1.3 Multiviewer
8x OPT Out
4x HDMI 1.3 AUX
Downstream Keying: Luma Key & Chroma Key
5″ LCD display
2x Gigabit Ethernet port
2x Line-In & 2x Line-Out (3.5mm)
IN addition of SDI output and DANTE

General specifications

3U
Supply voltage: 100-240V~, 3.0-1.5A, 50/60Hz
Power consumption: 140 W
Dimensions: 482.6 × 501 × 139 mm (L × W ×H)
Weight: 10.2 kg | 25.2 kg (with flight case)
