PC 8 - Compact Passive Coaxial Loudspeaker

Name: PC 8 - Compact Passive Coaxial Loudspeaker
Brand: Adamson
SKU: 962-0003
Price: 5303.13 AED
Availability: InStock

Brand: Adamson

Categories: Passive Point-Source Speakers

SKU: 962-0003

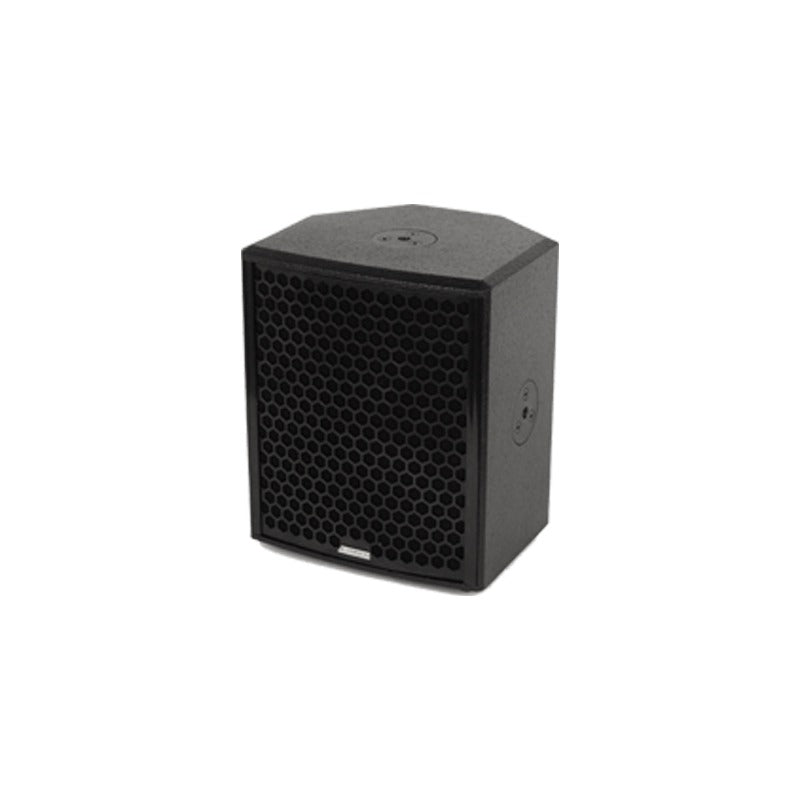

The Point Concentric 8 is powerful enough to reinforce demanding audio as a standalone speaker, and versatile enough to act as a wide-coverage fill speaker. It is a compact, passive coaxial loudspeaker, housing a single 8” component, which features the widest coverage pattern of the Point Concentric range with 100° conical dispersion. The PC8 produces linear, high-resolution audio throughout the intended bandwidth, and it includes three M10 fly points and one Omni Mount 30 series mounting point as well as a built-in polemount socket.

Product variants

Available

Need Help:

Pairs well with

PC 8 - Compact Passive Coaxial Loudspeaker

Dhs.5,303.13

Technical Specifications

Description

When both power and finesse are needed, the Point Concentric 8 delivers.

All Point Concentric enclosures are constructed of 12 mm Baltic Birch, rather than moulded plastic or fiberglass, resulting in a lower resonant frequency.

Specifications:

Frequency Range (-10 dB): 76 Hz - 18 kHz
Nominal Directivity (-6 dB): H x V 100° x 100°
Maximum Peak SPL**: 131 dB
Components MF/HF: B&C 8FCX51 8" Coaxial Driver
Nominal Impedance Passive: 4 Ω
Power Handling (AES / Peak) MF: 250 / 1000 W
Power Handling (AES / Peak) HF: 50 / 200 W
Power Handling (AES / Peak) Passive: 300 / 1200 W
Rigging: 3x Mini SLR™ Socket (M10) | OmniMount 30 Series with 1/4 - 20
Screws | Built-in Polemount Socket
Connection: 2x Speakon™ NL4 (Reversible)
Height Front (mm / in): 316 / 12.44
Width (mm / in): 267 / 10.5
Depth (mm / in): 241 / 9.48
Weight (kg / lbs): 9.5 / 21
Supported Processing: Lake, IPD**12 dB crest factor pink noise at 1m, free field, using specified processing and amplification

Downloads

PC8_Data_sheet.pdf
