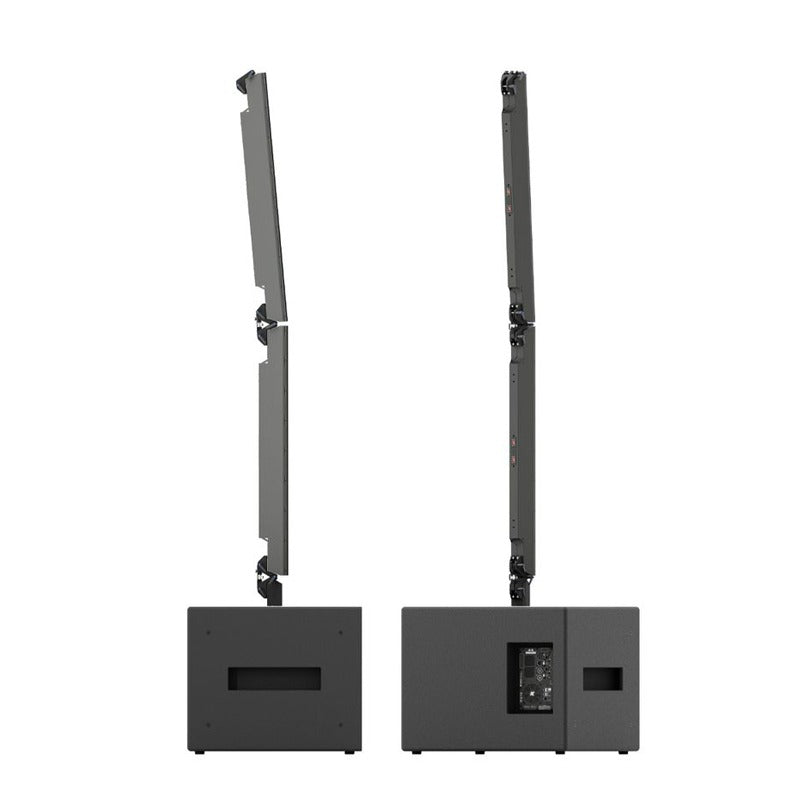

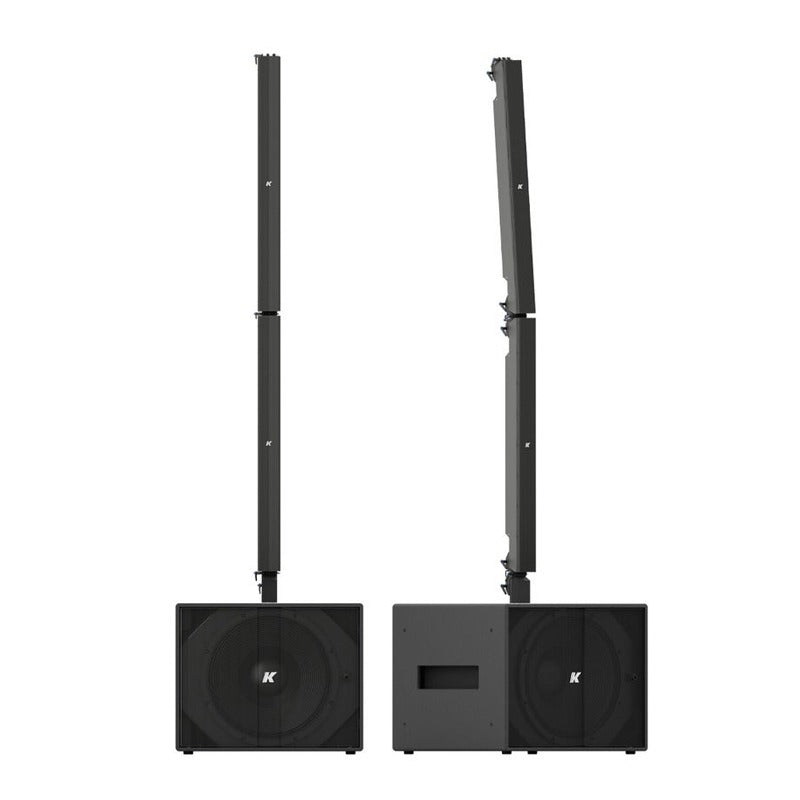

The Pinnacle-KR402 II is composed of:

• 1xThunder-KS3 Iself-powered subwoofer
• 1xThunder-KS3P Ipassive subwoofer
• 4xPython-KP102 Istainless steel line array element with 3.15” drivers
• 4x K-JOINT3
• 2x K-FOOT3

The self-powered Thunder-KS3 I subwoofers withDSPare designed to be the core devices in the sound reinforcement system: the dedicatedK-array Connectmobile appprovides a user-friendly interface for the remote control, the DSP parameters and to boost the system performance.

K-framework3is themanaging and control softwarededicated to professionals and operators looking for a powerful tool for designing and managing a large number of units over a wired LAN in demanding applications.

Technical Specifications:

PYTHON-KP102 I

GENERAL

• Type: Line array
• Transducers: 12 x 3.15" neodymium magnet woofers
• Frequency Response: 120 Hz - 18 kHz (-6dB) (1)
• Max SPL: 134 dB (peak) (2) Rated Power: 720 W AES
• Coverage: V. 7° - 30° | H. 90°
• Connectors: SpeakOn NL4 1+ 1- (signal); 2+ 2- (through)
• Nominal Impedance: 4 Ω / 16 Ω selectable
• Sensitivity (1W/1m): 99 dB SPL

HANDLING AND FINISHES

• Dimensions (W x H x D): 89 x 1000 x 118 mm (3.5 x 39.4 x 4.7)
• Weight: 12.0 kg (26.5 lb)
• Material: Stainless Steel
• Colors: Black, White, Custom RAL
• Finishes: 24K Gold, Polished, Brushed

REGULATIONS

• IP Rating: IP64 (3)
• EN54-24: EN 54-24:2008 compliant (4)

THUNDER-KS3P I

GENERAL

• Type: Passive subwoofer
• Transducers: 21" neodymium magnet woofer
• Frequency Response: 30 Hz - 150/300 Hz (-6 dB) crossover dependant (1)
• Crossover: DSP-controlled, Low Pass @ 150 Hz, preset dependant
• Max SPL: 139 dB (2)
• Rated Power: 2800W peak
• Coverage: Omni
• Coverage: 2 x Speakon NL4
• Nominal Impedance:
• 4ohm

HANDLING AND FINISHES

• Dimensions (W x H x D): 735 x 580 x 700 mm (28.9 x 22.83 x 27.55 in) (3)
• Weight: 49,2 kg (108.5 lb)
• Material: Polyurea coated birch plywood
• Colors: Black/White/Custom RAL

REGULATIONS

• IP Rating: IP54 (4)

THUNDER-KS3 L

GENERAL

• Type: Active subwoofer
• Transducers: 21" neodymium magnet woofer
• Frequency Response: 30 Hz – 150/450 Hz (-6 dB) crossover dependant (1)
• Crossover: DSP-controlled, Low Pass @ 150 Hz, preset dependant
• Max SPL: 139 dB (2)
• Coverage: Omni
• Connectors:Line Input: 2x XLR-F analog / AES3Line Output: 2x XLR-M Link analog / AES3Speaker Output: 2x SpeakON NL4Mains: powerCON TRUE1 TOPNetworking and Data: 1x RJ45 | 4x USB-ANominal Impedance: 4ohm subwoofer
• Controllers: Wi-Fi dedicated Mobile APP| K-framework3 via wired Ethernet connection
• Built-in DSP: Input gain, routing matrix, delay, full parametric IIR filters (Peaking, Shelving, Hi/ Lo pass, Hi/Lo Butterworth), Onboard preset, Remote monitoring

HANDLING AND FINISHES

• Dimensions (W x H x D): 735 x 580 x 700 mm (28.9 x 22.83 x 27.55 in) (3)
• Weight: 56 kg (123.4 lb)
• Material: Polyurea coated birch plywood
• Colors: Black/White/Custom RAL

REGULATIONS

IP Rating: IP53 (4)

AMPLIFIER

• Amp Module: 4-ch Class D
• Output Power: 4 x 2500W @ 4ohm (5)
• Power Consumption: 600 VA @ 8 Ω load, Pink noise, 1/8 rated power
