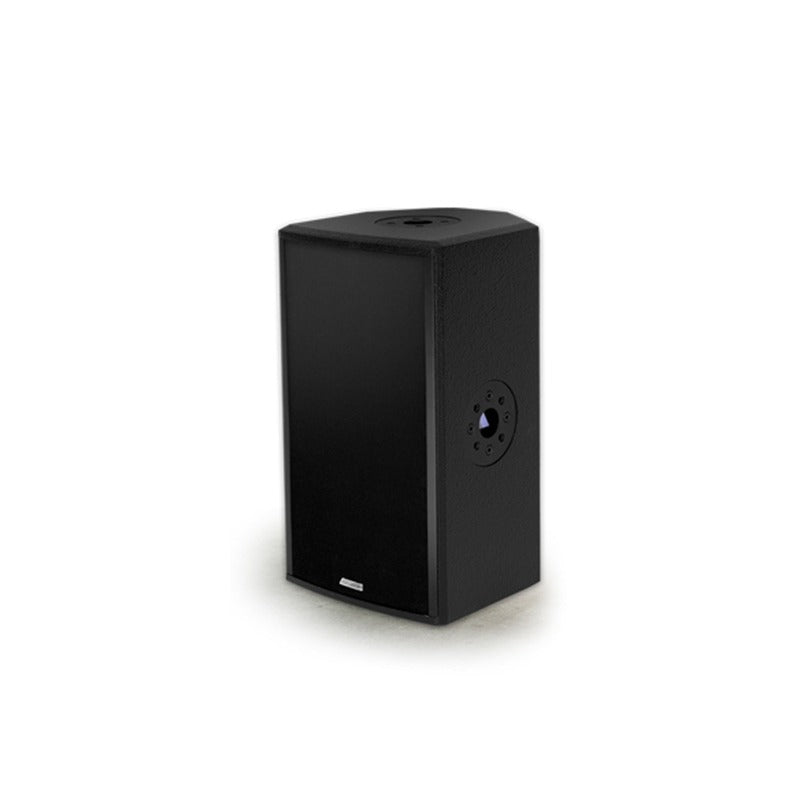

At its heart lies a single Adamson 8” ND8-LM Kevlar Neodymium Driver, and 1” Exit HF driver mounted on an Adamson fiberglass waveguide. The point 8’s rotatable 90° x 60° waveguide offers a defined coverage pattern, and its hexagonal shape allows use as a monitor without any additional adjustments.

Specifications:

• Frequency Range (+/-3 dB): 65 Hz - 20 kHz
• Nominal Directivity (-6 dB): H x V 90° x 60° Rotatable
• Maximum Peak SPL**: 130.6 dB
• Components LF: ND8-LM 8" Kevlar Neodymium Driver
• Components HF: B&C DE500 1.7" Diaphragm / 1" Exit Compression Driver
• Nominal Impedance Passive: 8 Ω
• Power Handling (AES / Peak) Passive: 300 / 1200 W
• Rigging: 4x SLR™ Socket | Built-in Polemount Socket
• Connection: 2x Speakon™ NL4 (Barrier Strip Optional)
• Height Front (mm / in): 451 / 17.75
• Width (mm / in): 251 / 9.88
• Depth (mm / in): 251 / 9.88
• Weight (kg / lbs): 12.5 / 27.6
• Supported Processing: Lake, IPD, XTA**12 dB crest factor pink noise at 1m, free field, using specified processing and amplification
