STRONGER

With its weight of only 16kg/m2 (3,2 lbs/sqft) it is one of the lightest and strongest decks in the industry. Guaranteed load capacity of 750 kg/m2 on a 2x1m Deck and 150 lbs/sqft on a 8x4ft Deck.A special long centered steel profile ensures full stability and a 45% less deflection.

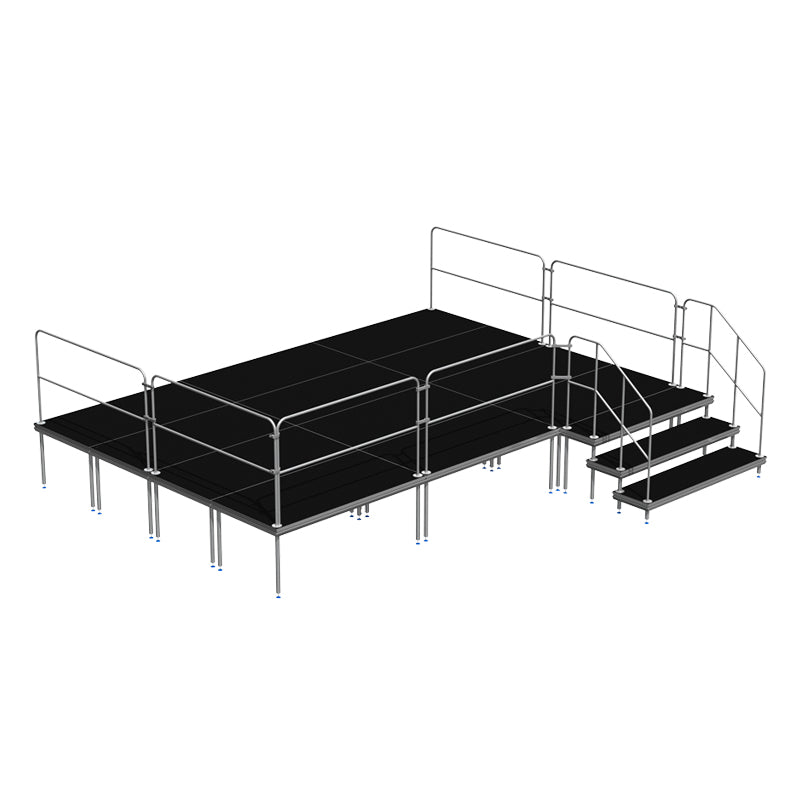

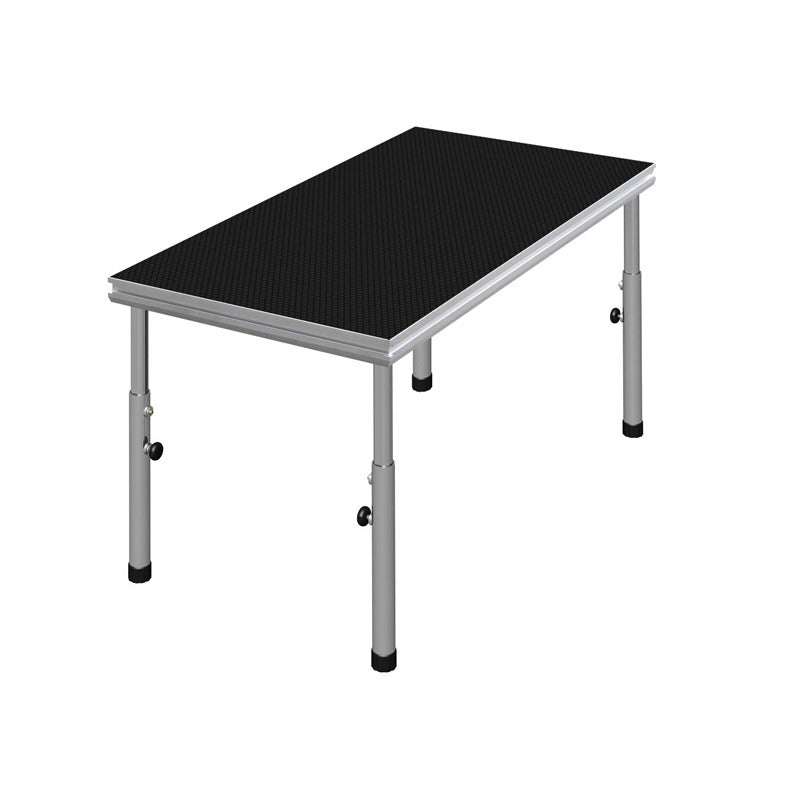

The platforms can be supported by (non)adjustable or telescopic legs which make it possible to smoothly and precisely adjust the platform height to the desired height. Thanks to their structure, the platforms can be installed both, outdoors in different terrains and indoors (inside the buildings, show halls, theatres etc.).

SPECIAL PROFILE

The Eurotruss Stage Decks has its own special extruded profile.All accessories like self-leveling inserts, railing clamps, stairs, clamps or assembly inserts which can be used to hang curtains or advertising banners are fastened to the profile section.

CORNER LEG HOLDER

The aluminium corner makes a solid leg connection possible, with an easy flip of the new quick-lock lever system the leg connection stays fixated during build-up. Easy to use and a optimal connection to secure the legs.

Key Features:

• Weighs only 16kg/m2.
• Equipped with Black Hexa anti-slip Plywood
• Applicable on Scaffolding
• TüV approved
• 750kg/m2 according TÜV

Technical Specifications:

• Dimensions: 200 x 100 cm. - 8x4 ft. (standard)
• Profile Height: 90 mm. - 3,54 in.
• Plywood: 12 mm. - 0,47 in. (Anti-slip)
• Weight29 kg. (200 x 100 cm.) 8x4ft (97 lbs)
• Material: EN AW-6082 T6 and Plywood
• Available sizes Metric: 2x1 / 1x1 / 2x0,5 / 1x,0,5 m.
• Available sizes Imperial: 8x4 / 4x4 / 8x2 / 4x,2 ft.
