Key Features

Advanced HDBaseT™ technology offering distribution of video and audio over a single CAT cable

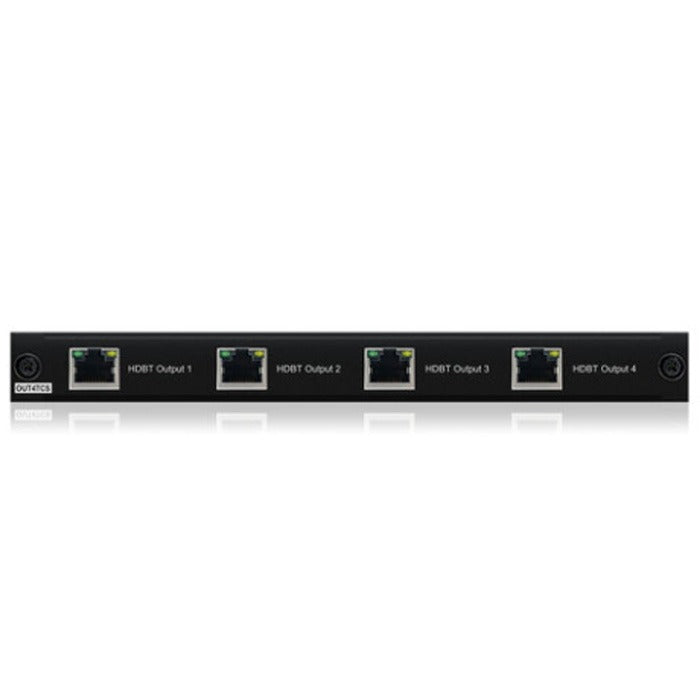

Features 4 x HDBaseT™ outputs for connection to compatible HDBaseT™ receivers

Advanced Colour Space Conversion (CSC) supports HDMI 2.0 18Gbps specification including HDR support

Supports 4K 60Hz 4:4:4 UHD video up to 70m*

Independent down-scaling of video input resolutions up to 4K 60Hz 4:4:4 to the following formats:

- 1080p 60Hz (for screens that do not support 4K)

- 4K 60Hz 4:2:0 (for screens that do not support full 4K 60Hz 4:4:4)

Extends HDMI 1080p video up to 100m

Supports all known HDMI audio formats including Dolby TrueHD, Atmos and DTS-HD Master Audio transmission

Supports PoC to power Blustream HDBaseT™ receivers

Quick release card module fittings allowing simple population of input and output cards in Custom Pro Matrix Hub

HDCP 2.2 Support

To be used with the HEX100CS-RX receivers

*For HDMI 2.0 18Gbps video distribution the PRO-OUT4TCS must be used with a HDMI 2.0 18Gbps Custom Pro input board

Specifications

Video Output Connectors: 4 x HDBaseT™ RJ45 connector

Card Dimensions (W x H x D): 182mm x 22mm x 177mm

Dimensions Including Connections (W x H x D): 202mm x 22mm x 188mm

Shipping Weight: 0.5kg

Operating Temperature: 32°F to 104°F (0°C to 40°C)

Storage Temperature: -4°F to 140°F (-20°C to 60°C)
