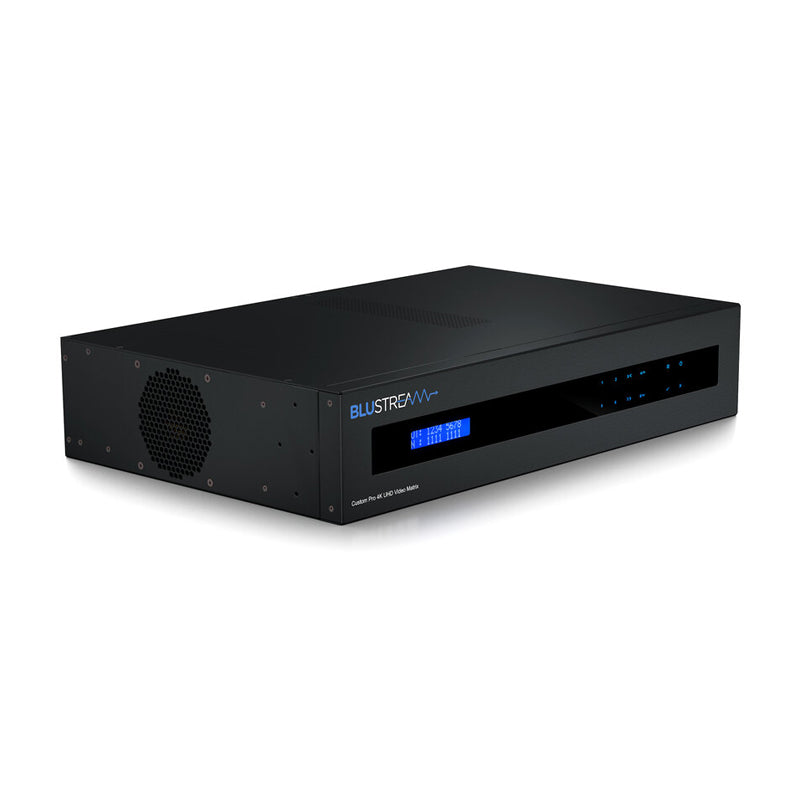

The PRO88HBT100CS is a HDMI 2.0 4K 60Hz 4:4:4 HDCP 2.2 Matrix utilising CSC technology to deliver HDMI, Bi-directional IR, PoC up to lengths of 100m over a single CAT cable (4K HDR up to 70m) with independent down-scaling of 4K video inputs on the CSC HDBaseT™ outputs to allow displays only capable of supporting lower video resolutions to receive 4K video while still showing maximum original 4K UHD resolution on the higher-definition displays.

The Matrix also provides advanced features including 4 x simultaneous HDMI outputs, audio breakout with line level pre amp volume control and a web browser interface module for control and configuration of the matrix.

Key Features:

• HDBaseT™ technology offering distribution of video and audio over a single CAT cable
• Advanced Colour Space Conversion (CSC) supports HDMI2.0 18Gbps specification including HDR
• Features 8 x HDMI inputs which can be independently routed to 8 x HDBaseT™ outputs
• Supports 4K 60Hz 4:4:4 UHD video up to 70m
• Independent down-scaling of resolutions up to 4K 60Hz 4:4:4 video input to the following formats:- 1080p 60Hz (for screens that do not support 4K)- 4K 60Hz 4:2:0 (for screens that do not support full 4K 60Hz 4:4:4)
• Supports 4K with HDR
• Extends HDMI 1080p video up to 100m
• 4 x Simultaneous HDMI Outputs
• Supports all industry standard video resolutions including VGA-WUXGA and 480i-4K HDR
• Supports all known digital HDMI audio formats including Dolby TrueHD, Atmos; DTS-HD Master Audio and DTS:X transmissions
• 8 x simultaneous coaxial digital and variable line level analogue L/R audio outputs
• Analogue audio input can be embedded onto any HDMI input
• Web interface module for control and configuration of matrix
• Supports bi-directional IR / RS-232
• Supplied with Blustream IR receivers and emitters
• Control via front panel, IR, RS-232 and TCP/IP
• Supports PoC (Power over Cable) to power compatible HDBaseT™ receivers
• 3rd Party drivers available for major control brands
• 2U Design for 19" rack mount integration - Mounting kit included
• Advanced EDID management
• HDCP 2.2 compliant
• To be used with the HEX100CS-RX receivers

Specifications:

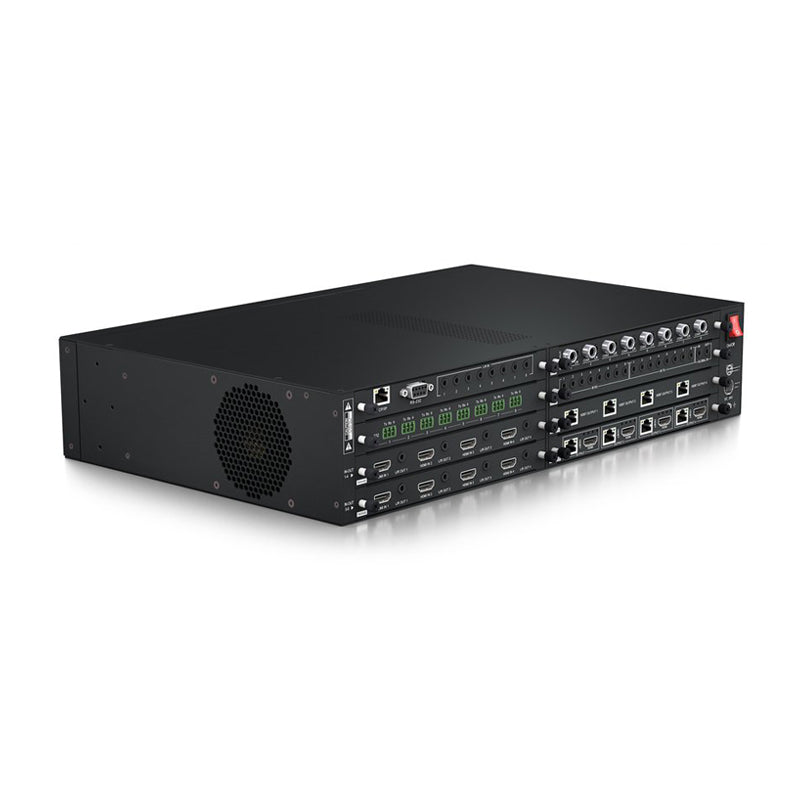

• Video Input Connectors: 8 x HDMI Type A, 19-pin, female
• Video Output Connectors: 8 x HDBaseT™ RJ45 connector, 4 x HDMI Type A, 19-pin, female
• Audio Input Connectors: 8 x 3.5mm stereo jack (L/R)
• TCP/IP Control: RJ45, female
• Ethernet / Network: RJ45, female
• IR Input Ports: 9 x 3.5mm stereo jack
• RS-232 Serial Port: DB-9, female
• Rack Mountable: 2U rack height, rack ears included
• Casing Dimensions (W x H x D): 440mm x 87mm x 282m without feet
• Dimensions Including Connections (W x H x D): 440mm x 94mm x 288mm with feet
• Shipping Weight: 5kg
• Operating Temperature: 32°F to 104°F (0°C to 40°C)
• Storage Temperature: -4°F to 140°F (-20°C to 60°C)
• Power Supply: 24V/8A DC

Colour Space Conversion (CSC) Technology in HDBaseT™
