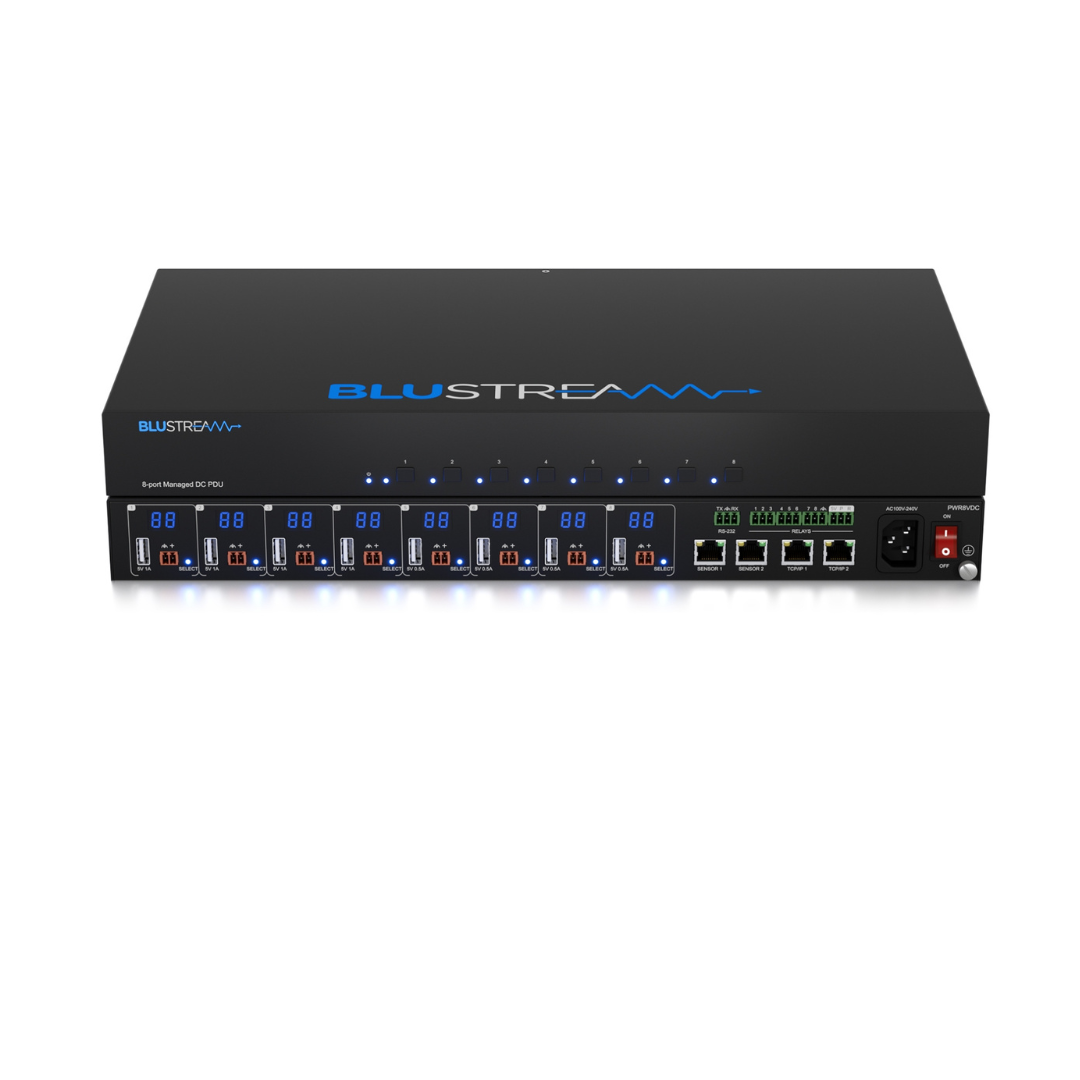

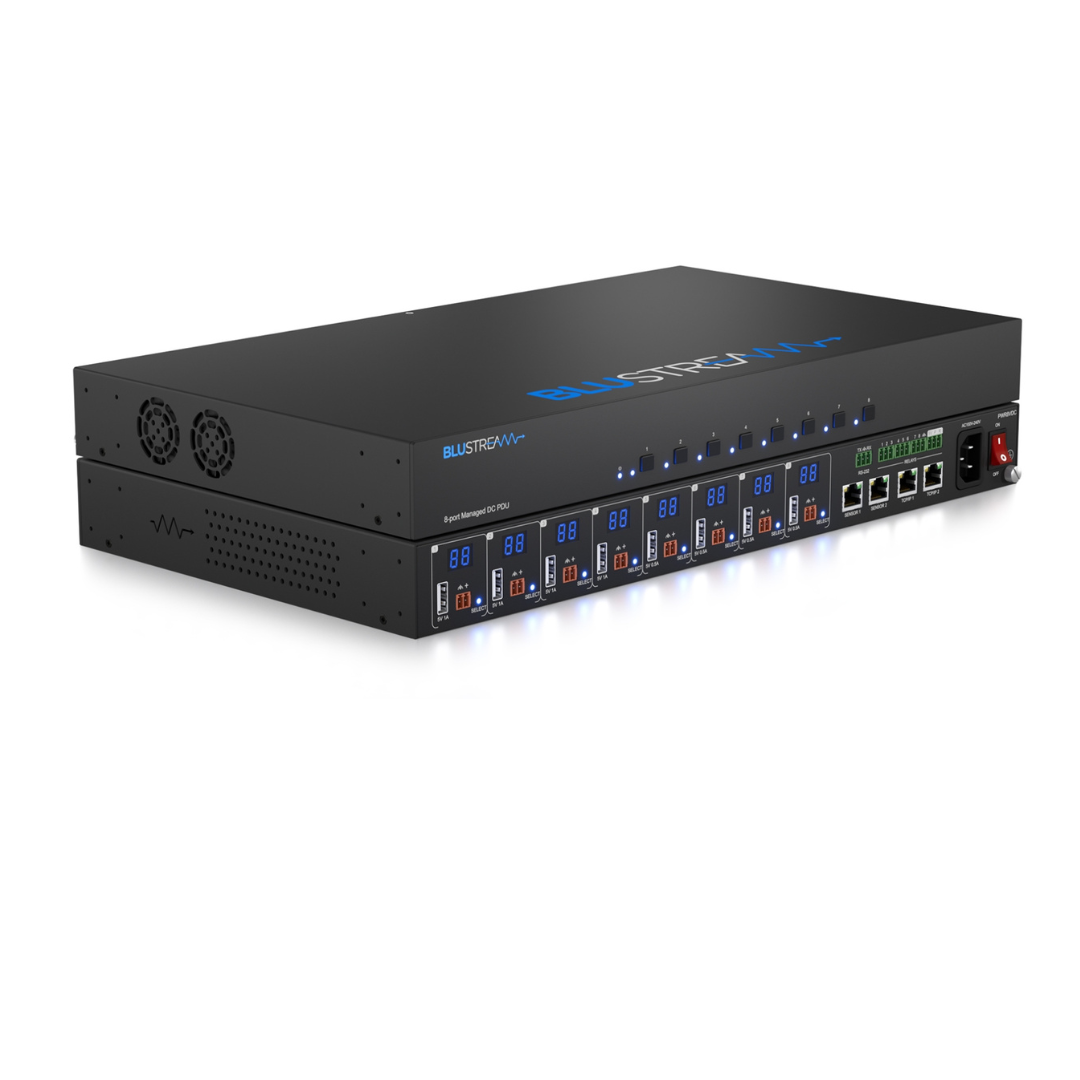

PWR8VDC- 8 Port Managed Low Voltage PDU

Name: PWR8VDC- 8 Port Managed Low Voltage PDU
Brand: Blustream
SKU: PWR8VDC
Price: 2874.32 AED
Availability: OutOfStock

Brand: Blustream

Categories: Power, Smart PDU

SKU: PWR8VDC

The PWR8VDC is an outlet-level metered and switched smart PDU. The unit features 1 x IEC C14 inlet for power, and 8 x variable voltage output outlets for controlled supply to low-power consumption devices. The PDU supports TCP/IP and RS-232 control, and a redundant TCP/IP port as a back-up. Front panel buttons for manual switching of power to individual outlets, and a single main switch for overall system power. Relay connections (x8), and 2 x sensor ports can also be used for automatic control of power to both inlet and individual outlet stages when triggered from 3rd party control platforms or BMS systems. Remote access and monitoring can be set-up and achieved via the web-GUI.

Product variants

On Demand

Need Help:

Pairs well with

Technical Specifications

Description

Key Features

Single C14 IEC inlet with 8x configurable voltage 2-pin Phoenix connector outlets
Products supports 110-250V AC power input up to 10A
Configurable multi-voltage outputs selectable between 5/9/12/18/24V supporting up to 30W power per outlet
Supports 8x managed USB-A ports for powering 3rd party devices (ports 1-4 5V 1A, ports 5-8 5V 500mA)
Monitoring and metering of Voltage, Current, Power, and Energy Consumption
Overload Protection and Interference Filtering
Advanced power management features including scheduling and power on/oﬀ sequencing
Multiformat sensor ports for integration to 3rd party control sensors including temperature, humidity, air pressure, security etc
Control via TCP/IP, RS-232, Front Panel buttons, or Relays
Dual TCP/IP network ports providing uninterrupted network service / access with SSL connectivity
Relays for automated switching of inlet, and individual power outlets
Provides remote monitoring with password authentication through web-GUI
Support multiple network and IoT protocols
1U design for 19" rack mount integration - Rack mounting kit included

Product Specifications

Power Input ports: 1 x C14 IEC 10A
Power Output ports: 8 x 2-Pin Phoenix connector, 8 x USB-A
Relay Control: 4x 3-Pin Phoenix connector
RS-232 serial port: 1 x 3-Pin Phoenix connector
TCP/IP Control: 2 x RJ45, female
Sensor Ports: 2 x RJ45, female
Rack-Mountable: 1U rack height, rack ears included
Casing Dimensions (W x D x H): 437mm x 245mm x 44mm
Dimensions Including Connections (W x D x H): 437mm x 252mm x 44mm
Shipping Weight: 5kg
Operating Temperature: 32°F to 104°F (0°C to 40°C)
Storage Temperature: -4°F to 140°F (-20°C to 60°C)
Power Supply: Internal 110-250V AC

Box Contents

1 x PWR8VDC
1 x Serial cable - DB9 to 3 pin Phoenix connector
4 x 3 pin 3.5mm Phoenix connector
1 x 19" Rack Mounting kit
4 x Mounting feet
1 x Quick Reference Card
IEC Power Cable(s)
