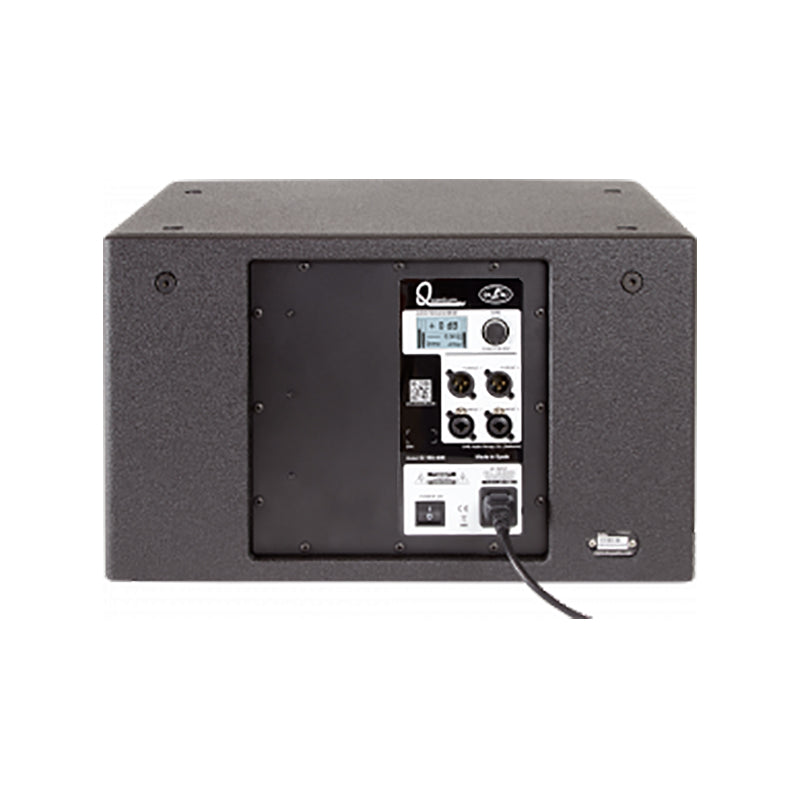

Q-10-A Compact Self-Powered Subwoofer

Categories: Powered Speaker Subwoofers

SKU: Q-10A

Q-10A compact self-powered subwoofer system from Quantum Series.

This self-powered, ultra-compact, low-profile subwoofer is ideal for small to medium-sized installations. Low-frequency clarity and reproduction make this an unbeatable system for delivering outstanding music reproduction. Perfect match for the Q Series tops.

The system is equipped with a class D switched-mode amplifier, with two signal inputs, variable low-pass filter, and parameter adjustment (deep/loud) with DAScontrol technology.

Color: Black

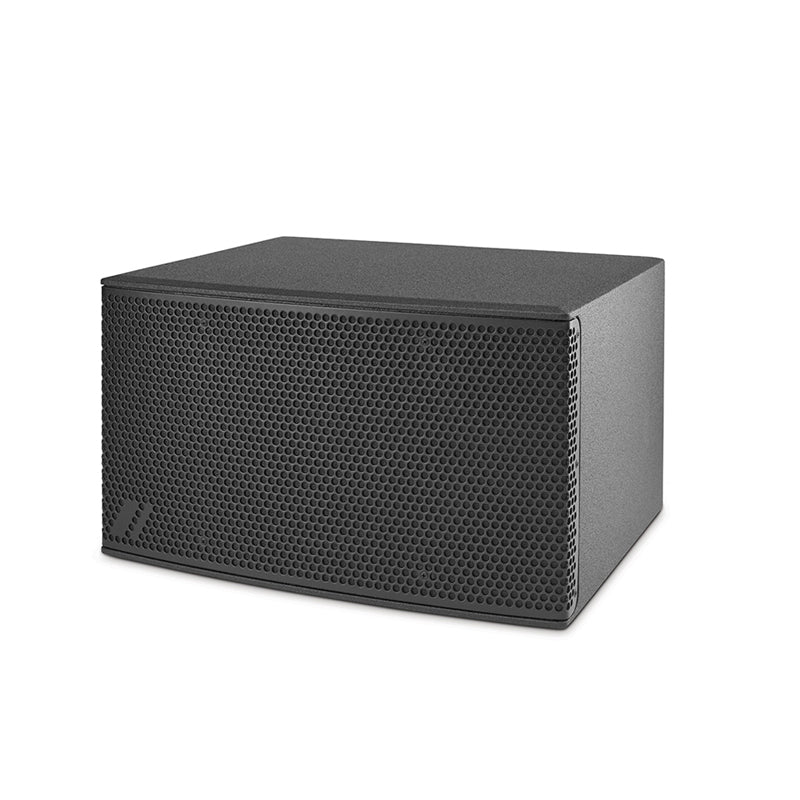

Black

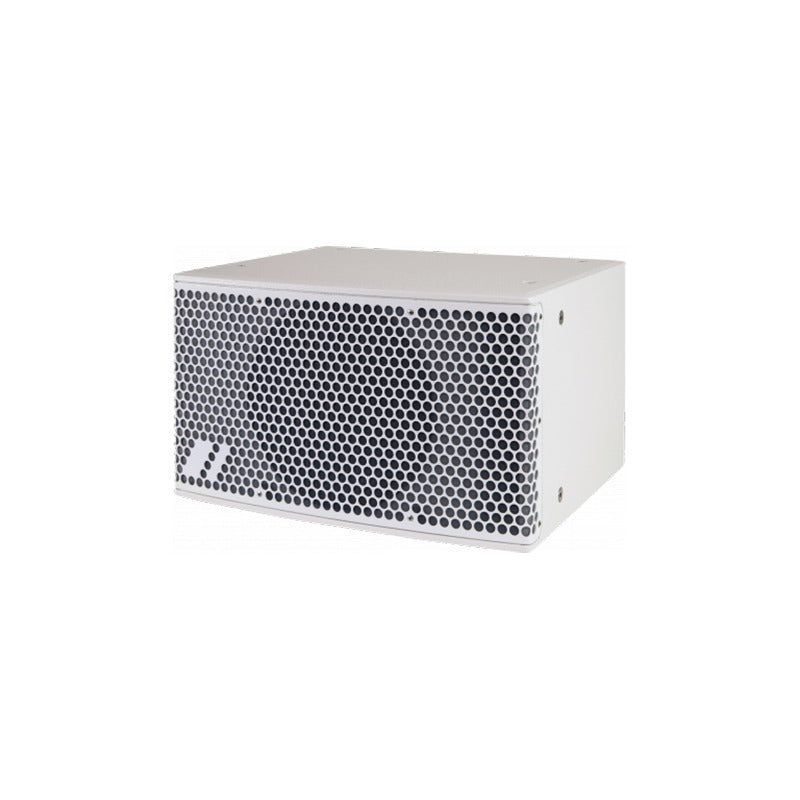

White

Product variants

Available

Need Help:

Pairs well with

Q-10-A Compact Self-Powered Subwoofer

Black

Dhs.4,038.23

Technical Specifications

Description

Features

Compact self-powered subwoofer system
DAScontrolinterface for easy setup
Birch plywood enclosure
1 DAS 10MG loudspeaker
Frequency range 40 Hz – 200 Hz
500 W peak Class D amplifier

Applications

A/V systems and corporate events
Meeting rooms, classrooms, and exhibit areas
Installations in bars and clubs

Performance

Frequency Range (-10 dB): 40 Hz – 200 Hz
Maximum Peak SPL at 1 m: 121 dB

Electronics and Connectors

Nominal Amplifier Power (continuous): 250 W
Nominal Amplifier Power (peak): 500 W
Input Type: Balanced
Input Impedance: 20 kohms
Input Sensitivity: 1.95 V (+8 dBu)
Audio Signal Input Connector: 2 x Female XLR
Audio Signal Loop Thru Connector: 2 x Male XLR
AC Input Connector: IEC
Operating Range: 90-127/180-250 VAC
Current Draw 115 V: 2.8 A
Current Draw 230 V: 1.4 A

Enclosure

Enclosure Construction: Birch Plywood
Enclosure Geometry: Rectangular
Finish: ISO-flex Paint
Color: Black | White
Dimensions ( H x W x D ): 305 x 505 x 415 mm | 12,0 x 19,9 x 16,3 in
Net Weight: 17,0 kg ( 37,4 lb )

Components

LF Driver: 10 MG
