Q-10 Compact Subwoofer System

Categories: Passive Point-Source Speakers

SKU: Q-10

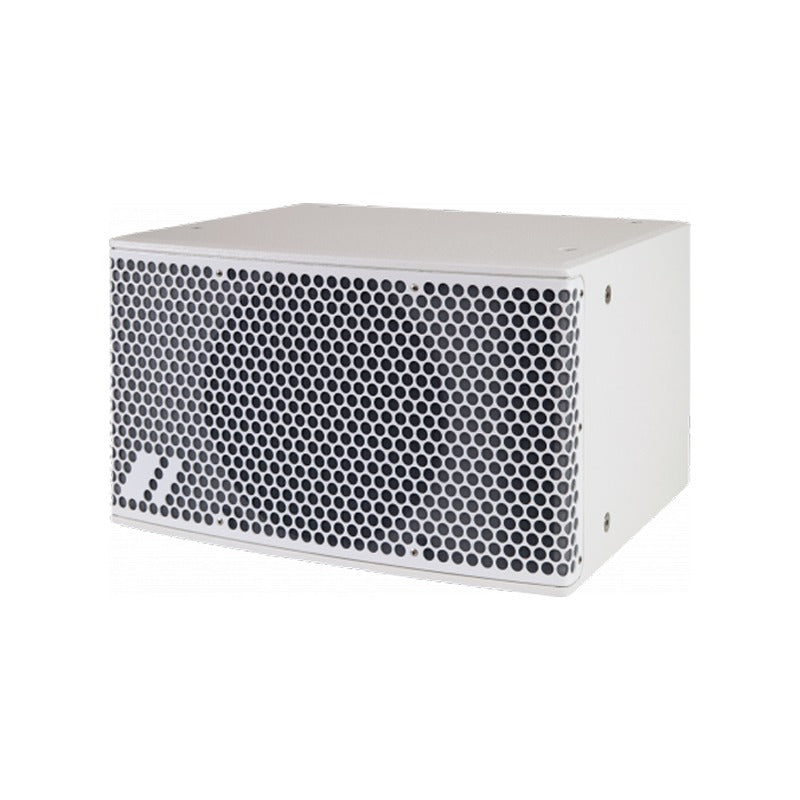

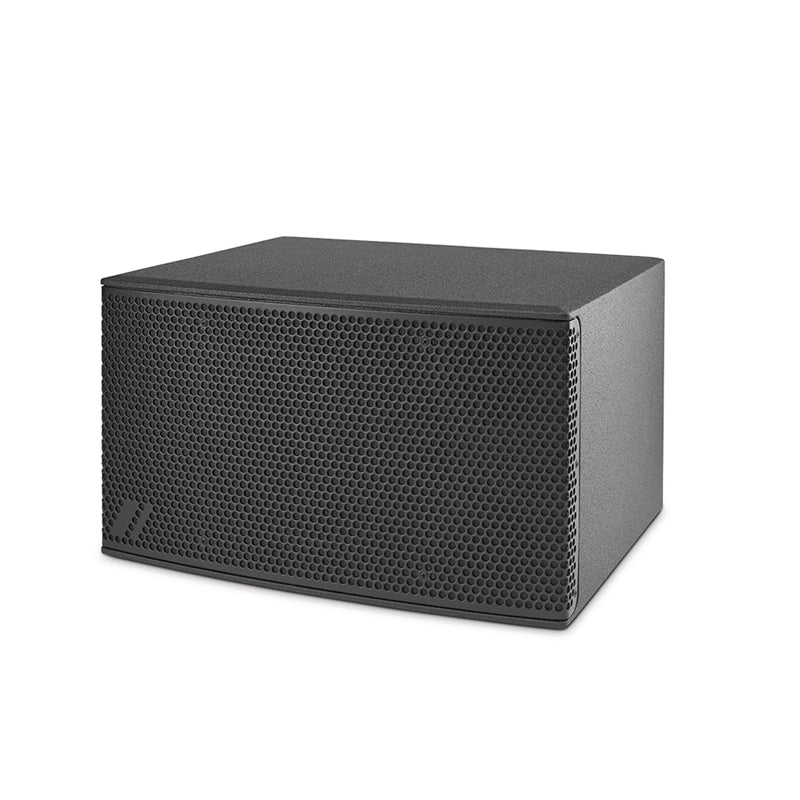

Q-10 low profile subwoofer from Quantum Series

This ultra-compact, low-profile subwoofer is ideal for small to medium-sized installations. Low frequency clarity and reproduction make this an unbeatable system for delivering outstanding music reproduction. Perfect match for the Q Series tops.

Color: Black

Black
White

Product variants

Available

Need Help:

Pairs well with

Q-10 Compact Subwoofer System

Black

Dhs.2,090.86

Technical Specifications

Description

Features

Compact subwoofer system
Birch plywood enclosure
1 DAS 10MG loudspeaker
Frequency range 40 Hz – 200 Hz

Applications

A/V systems and corporate events
Meeting rooms, classrooms, and exhibit areas
Installations in bars and clubs

Performance

Frequency Range (-10 dB): 40 Hz – 200 Hz
Nominal Impedance: 8 Ohms
RMS Power Handling: 250W
Peak Power Handling: 1000 W
On-axis Sensitivity 1W/1 m: 94 dB SPL
Maximum Peak SPL at 1 m: 121 dB
Recommended Amplifier: IA-404 | IA-1004
Recommended Processor: DSP-226

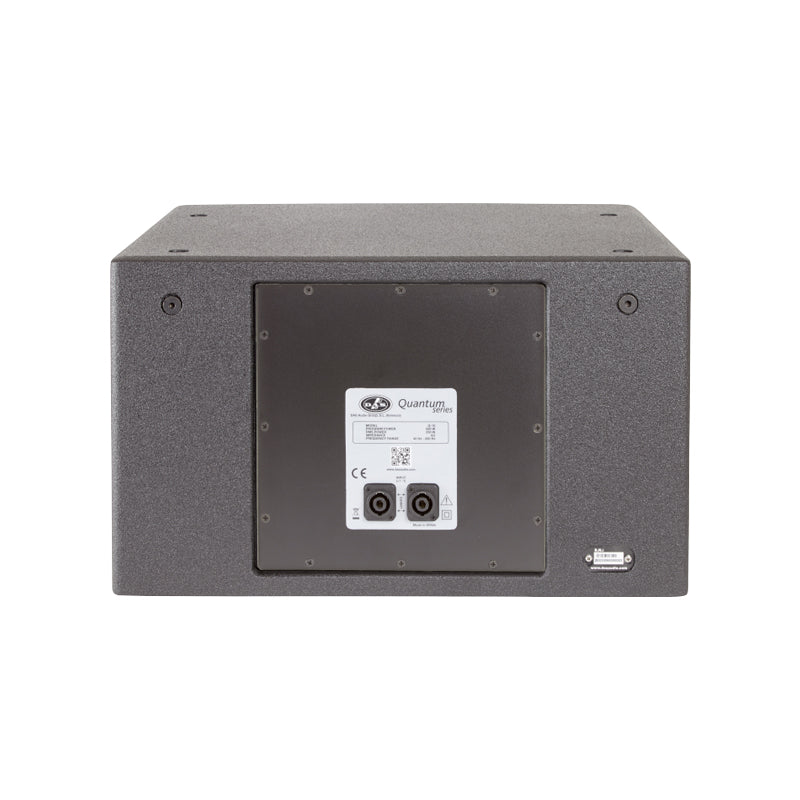

Connectors

Audio Input Connector: 1 x speakON NL4
Audio Output Connector: 1 x speakON NL4

Enclosure

Enclosure Construction: Birch Plywood
Enclosure Geometry: Rectangular
Finish: ISO-flex Paint
Color: Black
Dimensions ( H x W x D ): 305 x 505 x 415 mm | 12,0 x 19,9 x 16,3 in
Net Weight: 16,0 kg ( 35,3 lb )

Components

LF Driver: 10MG

Shipping

Shipping Weight: 17,0 kg ( 37,5 lb )
