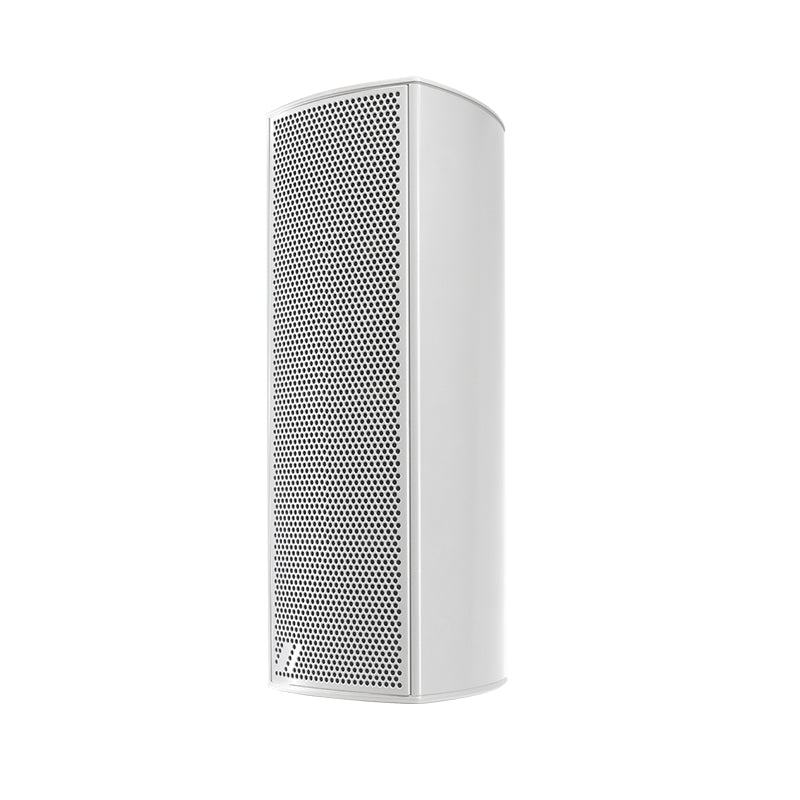

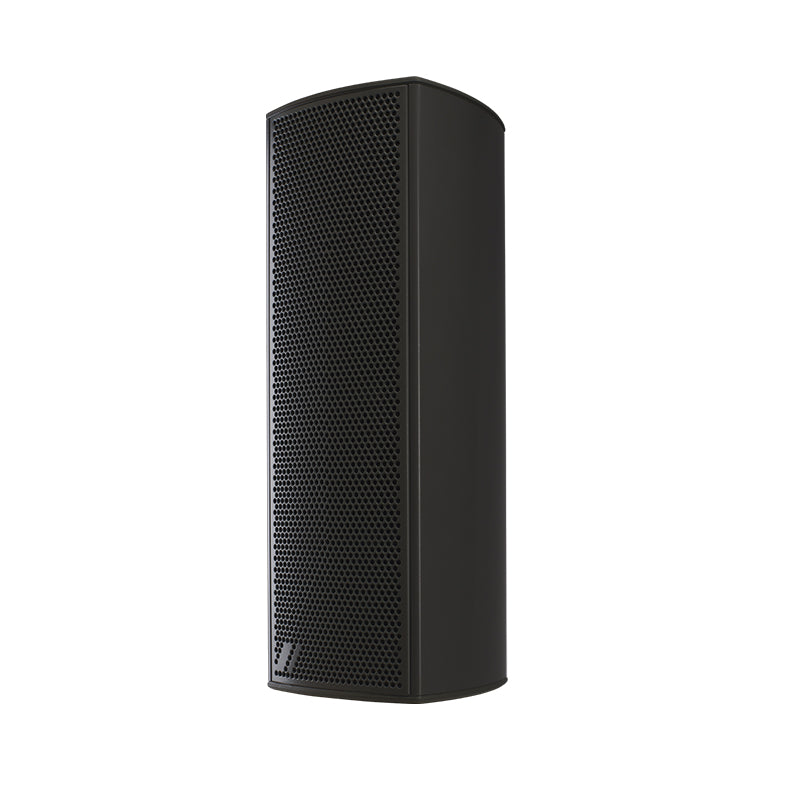

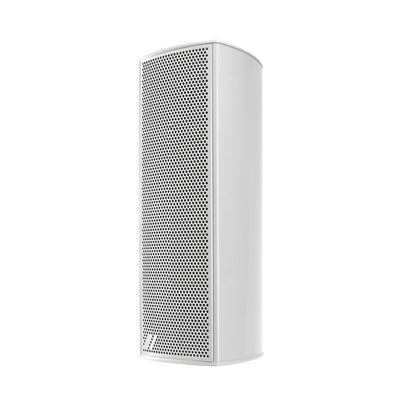

Q-43-T Passive Speaker System

SKU: Q-43-T

The Q-43-T passive speaker system is designed for small and mid-sized venues. The vertical dispersion can be varied by means of the system-integrated filter (30º/45º) makes it possible to control the system’s dispersion lobe in the vertical plane improving intelligibility in spaces such as cultural centers, museums, conference rooms…all while delivering superb music reproduction.

Color: Black

Black
White
Custom RAL

Product variants

Available

Need Help:

Pairs well with

Q-43-T Passive Speaker System

Black

Dhs.1,856.78

Technical Specifications

Description

Key Features

Passive system
Extruded aluminum enclosure
4 x 3”, 3P16 full-range speaker
Dispersion H x V: 120º x 30º/45º
SPL peak: 118 dB
Multi-tap 100/70V transformer included
Low/high impedance operation
Available in all RAL colors

Applications

A/V systems and corporate events
Meeting rooms, classrooms, and exhibit areas
Installations in bars and clubs

Performance

Frequency Range (-10 dB): 150 Hz – 20 kHz
Horizontal Coverage (-6 dB): 120º
Vertical Coverage: Switchable: 45º – 30º
Nominal Impedance: 4 ohms
Transformer Taps 70 V: 7.5 W – 15 W – 25 W
Transformer Taps 100 V: 15 W – 30 W – 50 W
RMS Power Handling: 80 W
Peak Power Handling: 320 W
On-axis Sensitivity 1W/1 m: 93 dB SPL
Maximum Peak SPL at 1 m: 118 dB SPL
Recommended Amplifier: IA-1002 | IA-1004
Recommended Processor: DSP-226

Connectors

Audio Input Connector: 2-way Phoenix 2.54 mm

Enclosure

Enclosure Construction: Aluminum
Color: Black/White
IP Rating: IP66
Depth: 125 mm (4,9 in)
Dimensions ( H x W x D ): 355 x 125 x 125 mm | 14,0 x 4,9 x 4,9 in
Net Weight: 5,3 kg ( 11,7 lb )

Components

MF Driver: 3P16
