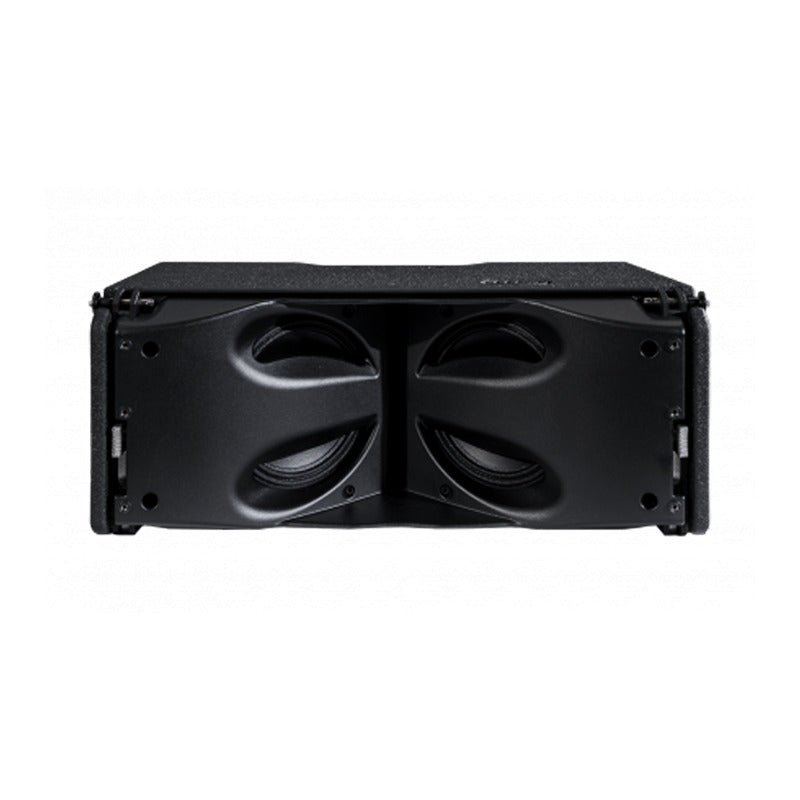

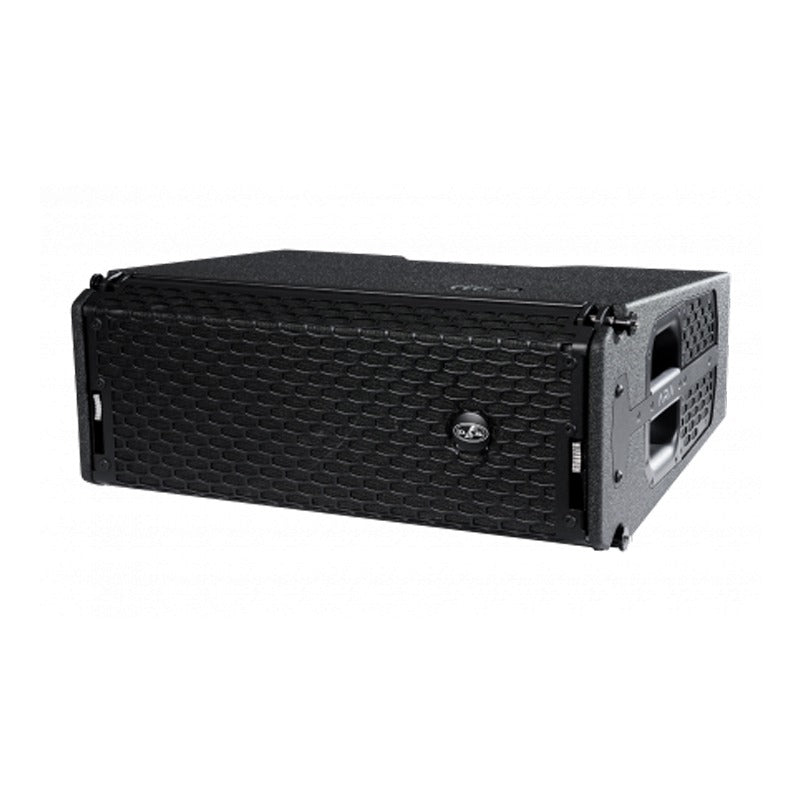

SARA-100 is acompact line array system with a symmetrical design and 3000Wrms of power, SARA delivers a linear performance of 138 dB SPL MAX and a wide dynamic range, making it perfect for events and medium-sized installations where sound quality and uniformity are a priority.

SARA features two custom designed 8″ loudspeakers for mid and low frequencies and a compression driver for high frequencies with a 100° horizontal dispersion waveguide.

SARA’s Class D amplifier integrates a switch-mode power supply with power factor correction (PFC), ensuring optimum performance and efficiency regardless of the mains voltage. The amplifier provides 3000Wrms of power, divided into 4 channels, two of which are used in bridge mode to power the compression driver, and the remaining two are used to power the 8″ front speakers.

The three-point rigging system can be used for both SARA and SARA-SUB, allowing arrays of up to 24 SARA and 16 SARA-SUB units to be hung. In addition, using the JP-SARA accessory, up to 12 units of SARA can be hung below the SARA-SUB. The FSS™ (Fast Set Splay) system allows angles to be adjusted in 1° steps from the stacked position, significantly reducing assembly time.

Key Features:

• Powered compact line array system
• Symmetric V-shaped configuration
• 4-channel, 3000 W continuous Class D amplifier
• FIR processing and digital steering via DASaim™
• ALMA™remote monitoring and control over IP
• Fast Set Splay FSS™for angle setting while stacked

Applications:

• Outdoor festivals and live concerts
• Theatres, auditoria and performing arts centers
• Large live music clubs
• Live sound touring/Rental services
