Technical Specifications

Description

CAPACITY & COMPATIBILITY

  • Launcher Head: 1 x High-Conductivity Firing Port
  • Cannon Compatibility: Universal support for 40cm, 60cm, and 80cm Electric Cannons
  • Consumables: Requires standard nitrogen-powered electric cartridges (not included)

PERFORMANCE

  • Vertical Reach: 6m – 12m (Dependent on cannon length)
  • Horizontal Projection: Up to 10m (Confetti) / 20m (Streamers)
  • Precision Firing: Integrated hand-screw adjustment for 180° multi-angle positioning
  • Trigger Response: Instant “Zero-Delay” solenoid execution for perfect timing

CONTROL & PROGRAMMING

  • Display: Integrated LCD Digital display for easy DMX addressing
  • Control Protocols: Integrated DMX-512 and wireless remote included (battery for remote not included).
  • DMX Channels: 5 Channels

ELECTRICAL

  • Input Voltage: 110V – 220V / 50-60Hz
  • Power Consumption: 40W
  • Fuse: Integrated 10A fuse to prevent circuit overload

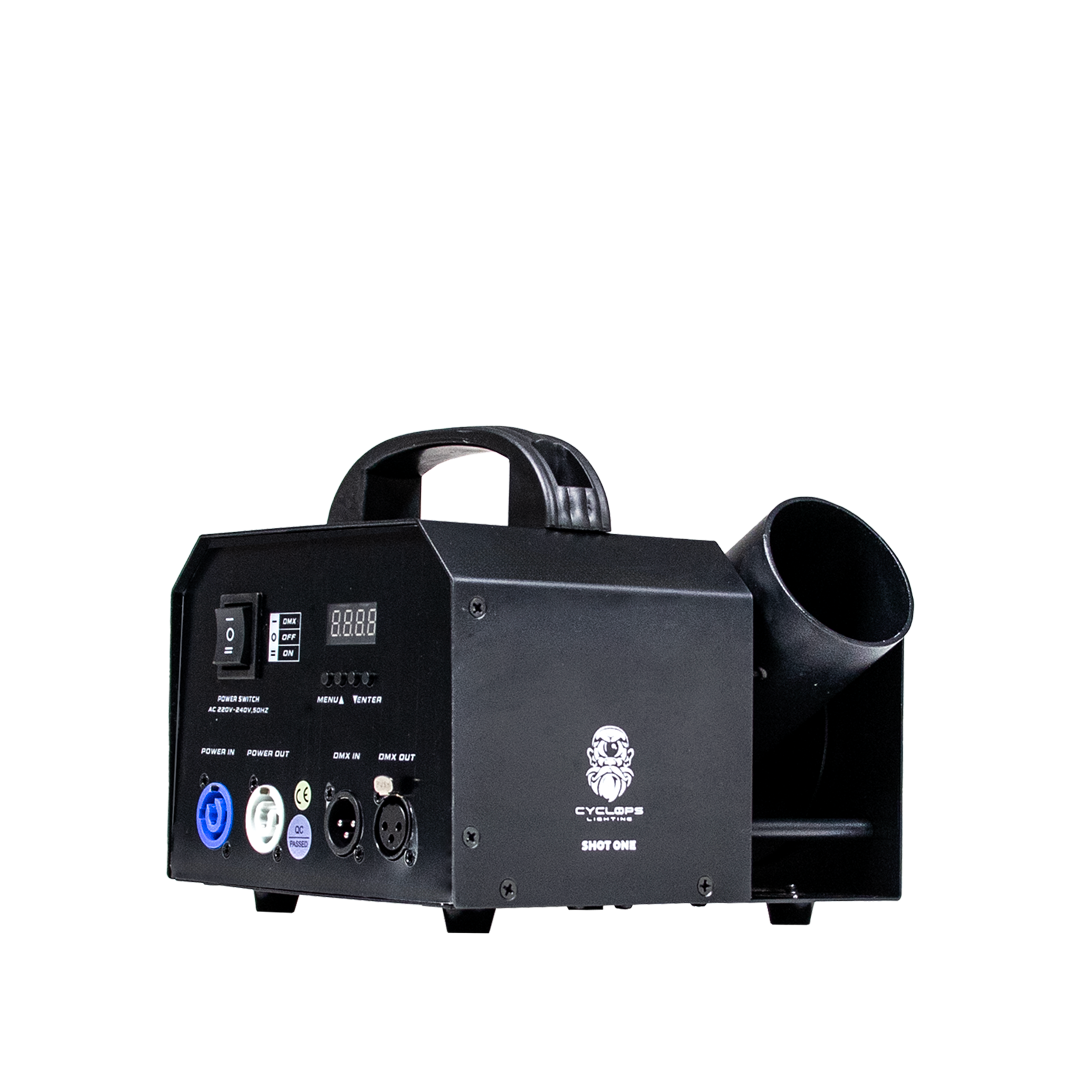

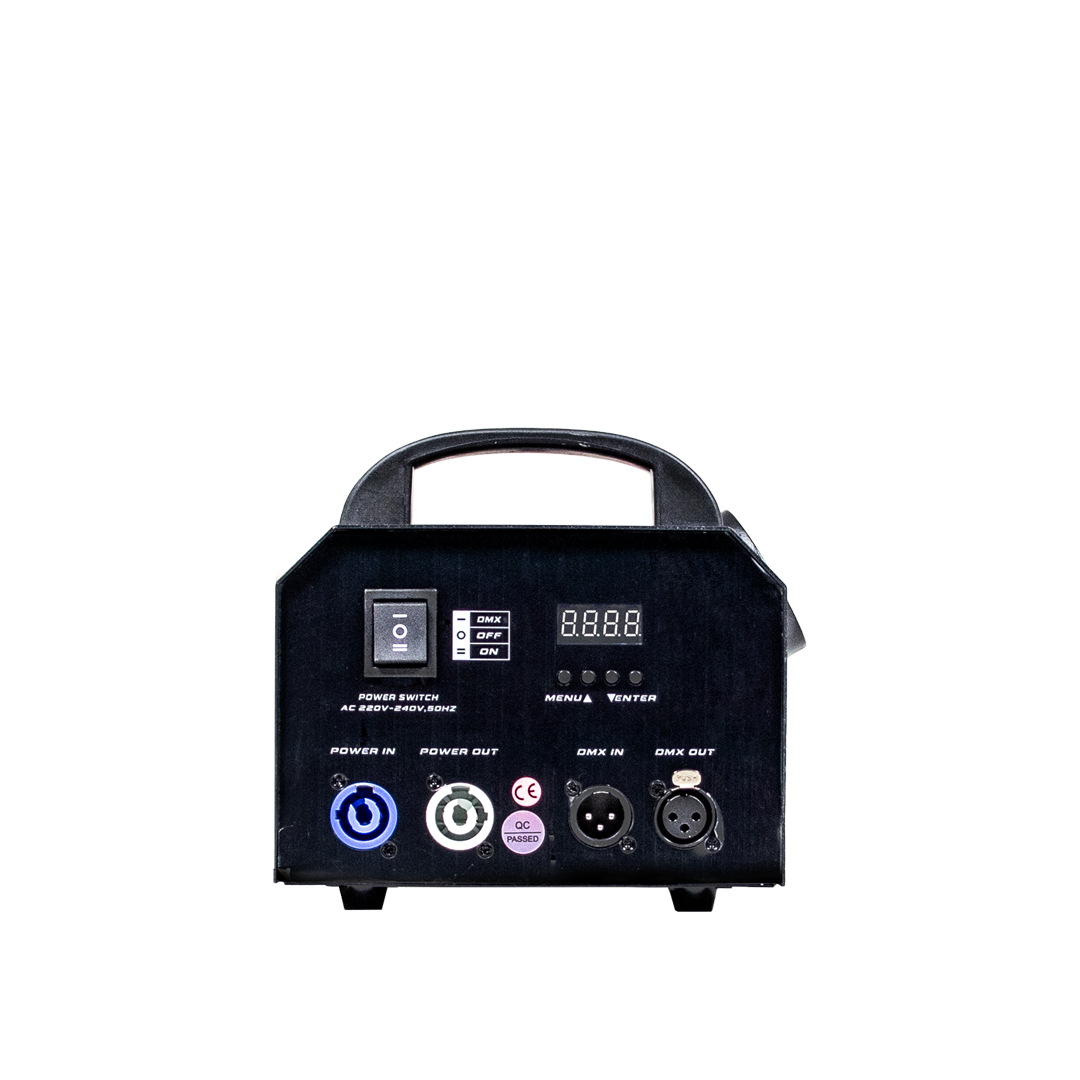

CONNECTIONS

  • DMX Connections: 3-pin signal line DMX interface
  • Power Connections: 3-pin XLR In/Out

PHYSICAL

  • Dimensions: 22.5cm x 18.5cm x 18cm
  • Net Weight: 3.8 kg
  • Housing: Reinforced Steel
  • Housing Color: Matte Black
