Technical Specifications

Description

CONSUMABLES

  • Material Type: Titanium Alloy Granules (Outdoor Cold Spark Effect Powder – SKU: SPARKPWD)
  • Powder Box Capacity: 250 g
  • Consumption Rate: ~15–20 g/min (Based on output)
  • Effect Duration: ~10–15 minutes per full refill

PERFORMANCE

  • Sparkular Height: 3 – 6 m (Adjustable via DMX)
  • Fountain Direction: Vertical Upward
  • Heating Method: Electromagnetic Induction Heating
  • Warm-up Time: Approx. 3–5 minutes

CONTROL & PROGRAMMING

  • Display: Digital LCD for DMX address and Real-time Temperature
  • Control Channels: 2 CHs
  • Control Protocols: DMX512 / Wireless Remote (battery for remote not included).
  • Smart self-cleaning mode

ELECTRICAL

  • Fuse: 110V/12A OR 220V/6A
  • Input Voltage: 110V-220V / 50Hz-60Hz
  • Power Consumption: 900 W

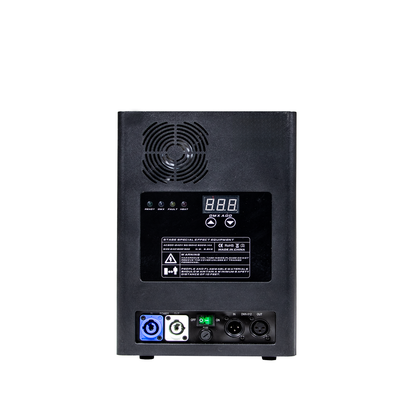

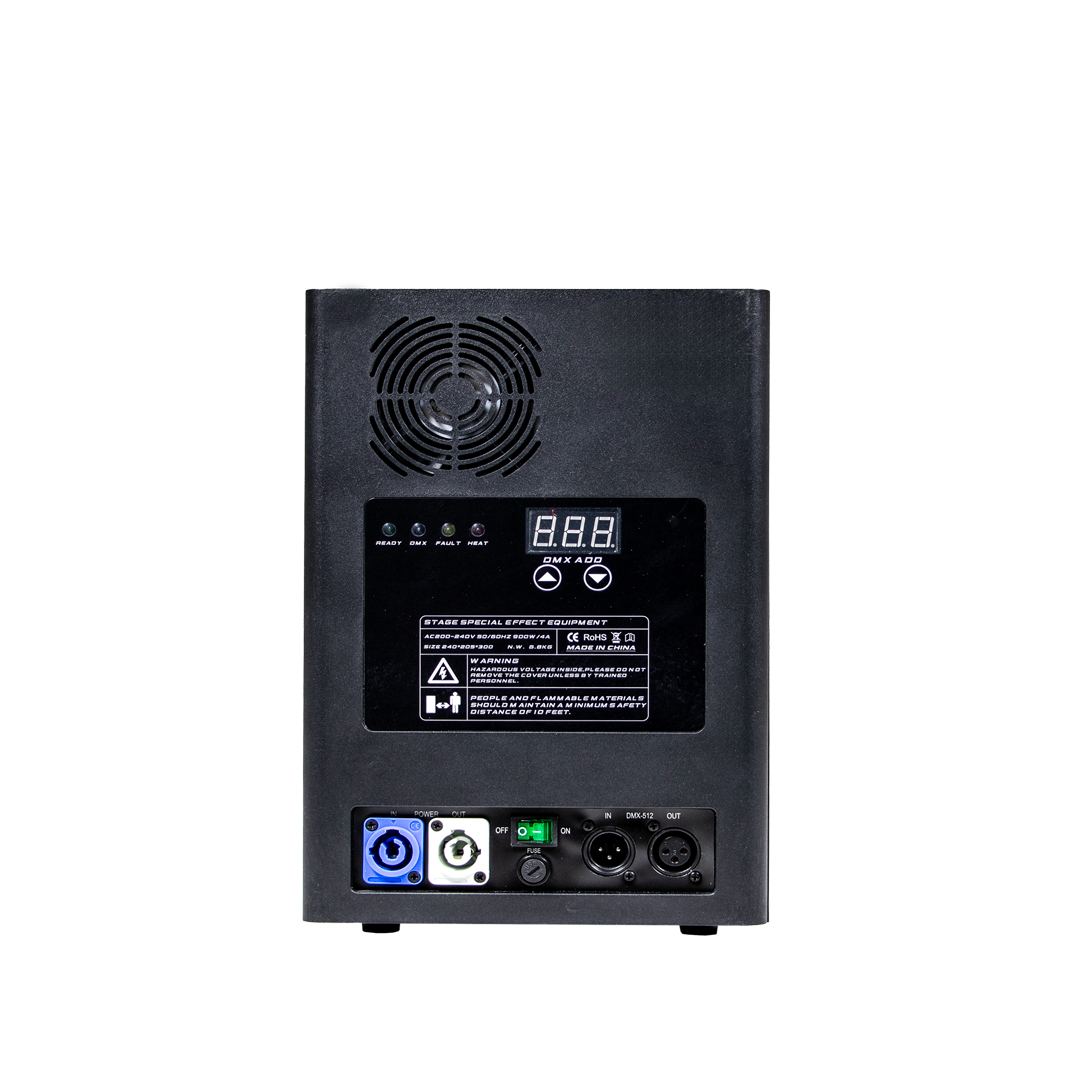

CONNECTIONS

  • DMX Connections: 3 pin XLR In/Out male and female
  • Power Connections: PowerCon In/Out

PHYSICAL

  • Dimensions: 220 mm x 250 mm x 310 mm
  • Net Weight: 7.8 Kg
  • Housing: Anti-Flaming ABS
  • Housing Color: Black
