The SR10 guarantees a good workable load, insuring a minimum of trucking and storage space.This SR10 Roof can be lifted motorized or by manual chain hoists.The SR10 Roof is designed and calculated to be set up on single steel bases. The top canopy is tightenedwith tubes and ratchet straps and the wall canopies can be either in full PVC or the wind through mash.

This roof meets all the required international standards and has been pre-calculated andcomes with a full structural report and manual according the most recent regulations.Naturally PA Wings are available.

The SR10 Roof consist of a HD/FD34 Ground Support on four HD/FD34 Towersand a Roof Structure of HD/FD34 Truss and Roof Ladder Supports.

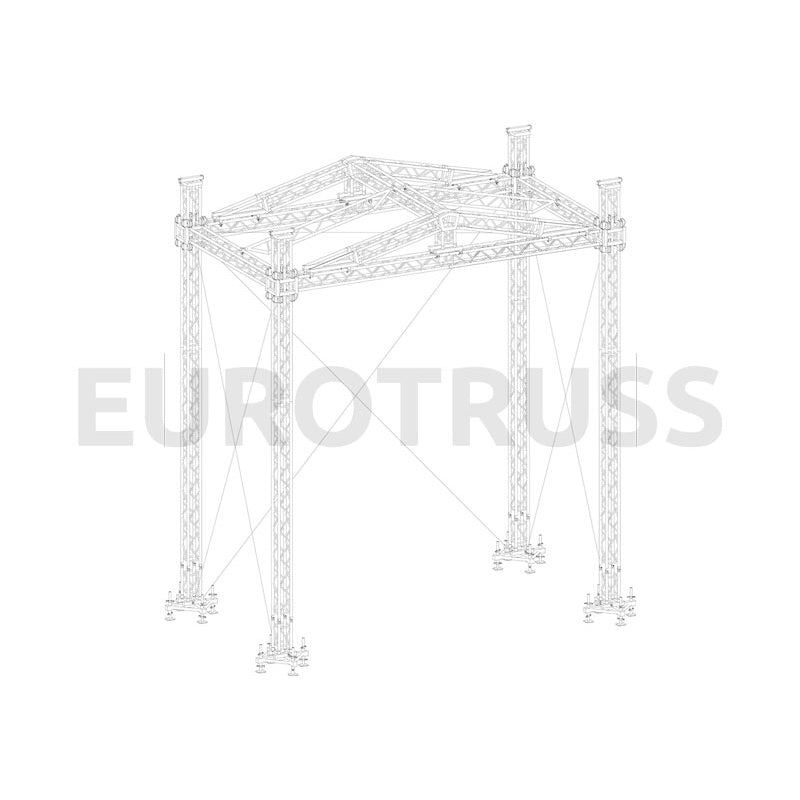

The SR10 Roof is a tower based structure with a saddle roof. This saddle roof has a relative high load bearingHD/FD34 Main Rig with an HD/FD34 roof structure with a fixed angle on the two HD/FD34 gableswhich enables you to re-build the roof in various dimensions.

All the standard sizes 10x8m, 8x6m and 6x4m are to be build with FD34 and HD34 of which the HD34 increases theload bearing capacity of the SR10 Roof. As the ground support and additional roof is mainly built out of standard HD/FD 34elements, only a few special roof parts are required to build a SR10 Roof. This makes the SR10 a very attractive andefficient roof system to acquire.

Product features

• Size:FD / HD / 6x4
• Tower:FD / HD 34
• Main Rig:FD / HD / 34 / 32
• Roof Structure:FD / HD / 34 / 32
• Width:6,24m
• Clearance:5m
• Depth:3,82m
• Max. PL:640
• Max. UDL:640

• Size:FD / HD / 8x6
• Tower:FD / HD 34
• Main Rig:FD / HD / 34 / 32
• Roof Structure:FD / HD / 34 / 32
• Depth:5,82m
• Max. PL:900
• Max. UDL:900

• Size:FD / HD /10x8
• Tower:FD / HD 34
• Main rig.:FD / HD / 34
• Roof Structure:FD / HD / 34 / 32
• Width:10,24m
• Clearance:7m
• Depth:7,82m
• Max. PL:1400
• Max. UDL:1200

• Size: HD 10x8
• Tower:HD 34
• Main Rig:HD 34
• Roof Structure:HD 34 / 32
• Width:10,24m
• Clearance:7m
• Depth:7,82m
• Max. PL:2000
• Max. UDL:1720

• QTE (Towers):4
• PA Wing possible:Yes
• Compression:Optional
• Max. Load PA Wing:1000Kg
