Technical Specifications

Description

This roof meets all the required international standards and has been pre-calculatedand comes with a full structural report and manual according the most recent regulations.Naturally PA Wings and Side Houses are available.

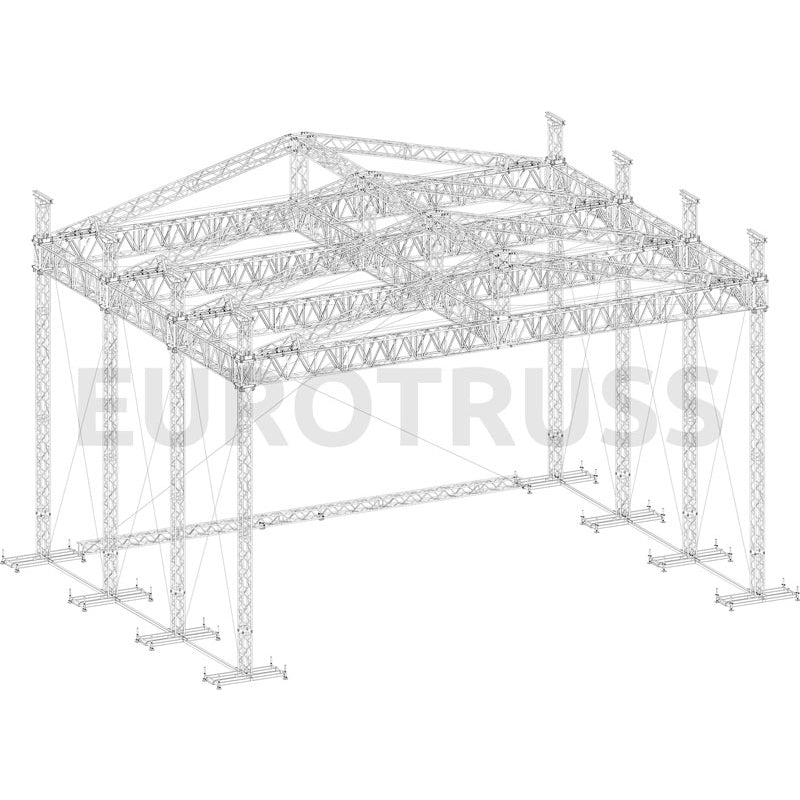

The SR50 Roof consist of a TT Ground Support on eight TD44 Towers and a Roof Structure of ST Truss.The SR50 Roof is a tower based structure with a saddle roof. This saddle roof has a standard impressive load bearingTT Main Rig and an ST roof structure with a fixed angle on the four ST gables which enables you to re-build the roof invarious dimensions. The standard SR50 TT Roofs are available in 24x16m, 20x16m and 16x12m all on eight TD44 Towers.

The SR50 TT Pro Roof is designed and calculated to be set up on ballast bases with compression beams between the sideand rear towers or can be set up with integrated bases (ballast safes) in any kind of steel scaffolding stage. The top canopyis tightened with tubes and ratchet straps and the wall canopies can be either in full PVC or the wind through mash.

Product features

  • Tower:TD 44
  • QTE (Towers):8
  • Main Rig:TT
  • Roof Structure:ST
  • PA wing possible:Yes
  • Compression:Yes
  • Max. Load PA Wing:2000
  • Width:16,12
  • Clearance:11m
  • Depth:12,1
  • Max. Pointload:8250Kg
  • Max. UDL:14900Kg
  • Tower:TD 44
  • QTE (Towers):8
  • Main Rig:TT
  • Roof Structure:ST
  • PA Wing possible:Yes
  • Compression:Yes
  • Max. Load PA Wing:2000Kg
  • Width:20,12m
  • Clearance:11m
  • Depth:16,36m
  • Max. Pointload:11000Kg
  • Max. UDL:23600Kg
  • Tower:TD 44
  • QTE Towers:8
  • Main Rig:TT
  • Roof Structure:ST
  • PA Wing possible:Yes
  • Compression:Yes
  • Max. Load PA Frame:2000 Kg
  • Width:24,12m
  • Clearance:11m
  • Depth:16,36m
  • Max. Pointload:11000 Kg
  • Max. UDL:22100 Kg
