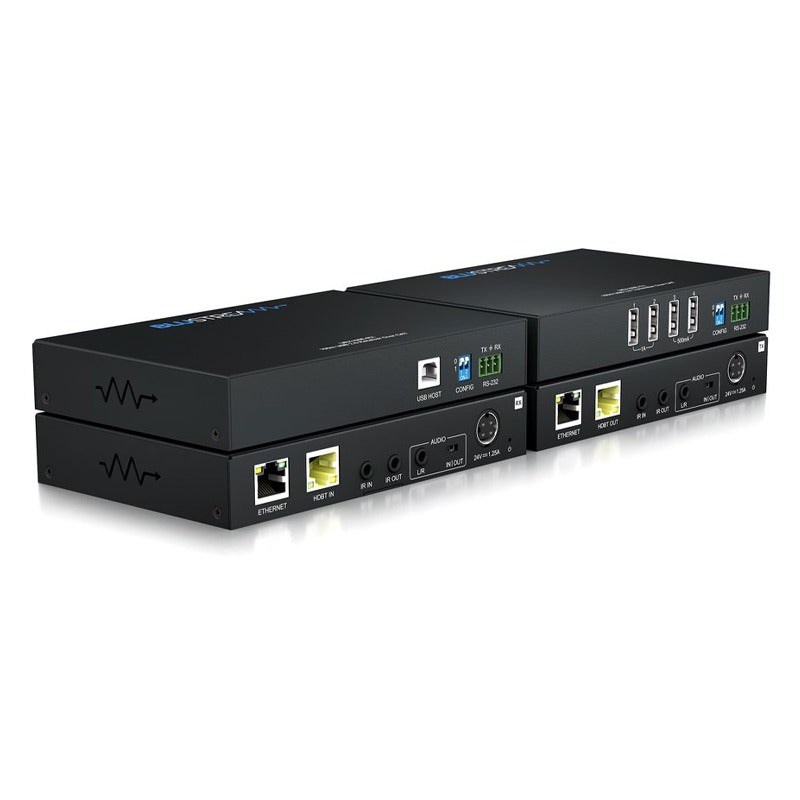

Key Features

• Extends USB up to a distance of 100m over a single CAT cable using HDBaseT™ technology*
• Supports USB 2.0 signal extension
• Backwards compatible with USB 1.1 devices
• Transmitted data bandwidth up to 480Mbps (combined)
• 1 x USB-B port on the receiver for connection to host device
• 4 x USB-A ports on transmitter for connection to devices
• USB-A ports 1-2 support 5V 1A, USB-A ports 3-4 support 5V 500mA
• Bi-directional Ethernet pass-through (100Mbps)
• Bi-directional IR & RS-232 pass through
• Supports 2ch PCM Analogue Audio pass through (direction selectable)
• Bi-directional PoC (Power over Cable) to power extenders from either the transmitter or receiver
• Simple plug and play, no driver installation or setup required*Signal distribution length subject to length of device / host USB cables and CAT cable type

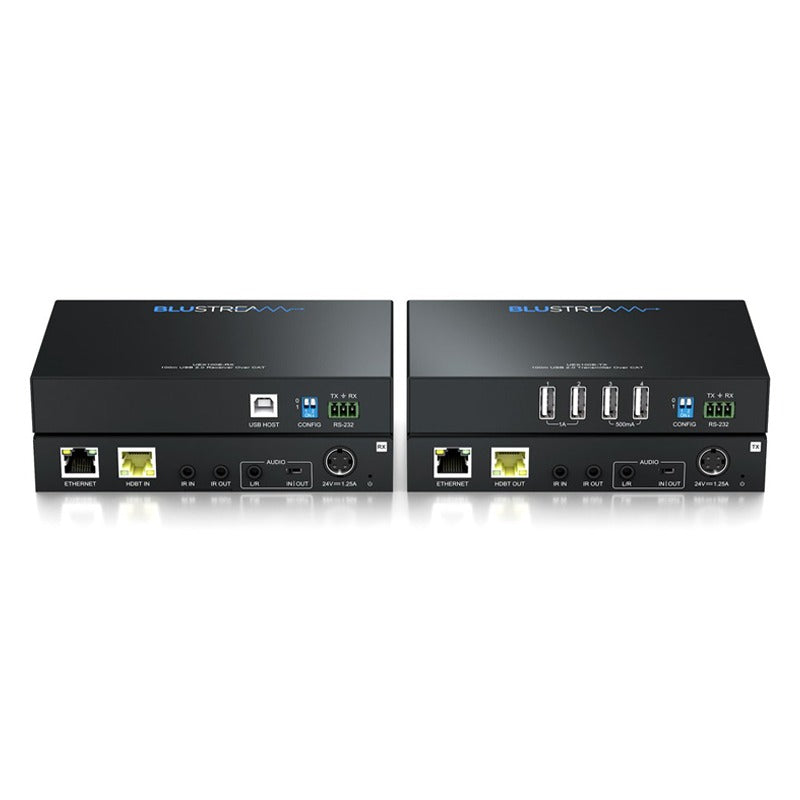

Specifications

UEX100E-RX

• CAT Connector: 1 x RJ45 connector, female
• USB Port: 1 x USB-Type B
• Audio Input/Output Connector: 1x Analogue L/R audio (3.5mm stereo jack)
• Ethernet Port: 1 x RJ45 connector, female
• RS-232 Serial Port: 1 x 3-pin Phoenix connector
• IR Input Ports: 1 x 3.5mm stereo jack
• IR Output Ports: 1 x 3.5mm mono jack
• Config Switch: 2-pin DIP switch

UEX100E-TX

• CAT Connectors: 1 x RJ45 connector, female
• USB Ports: 4 x USB-Type A
• Audio Input/Output Connector: 1x Analogue L/R audio (3.5mm stereo Jack)
• Ethernet Port: 1 x RJ45 connector, female
• RS-232 Serial Port: 1 x 3-pin Phoenix connector
• IR Input Ports: 1 x 3.5mm stereo jack
• IR Output Ports: 1 x 3.5mm mono jack
• Config Switch: 2-pin DIP switch

• Power Supply: 24V/1.25A DC
• Product Dimensions (W x D x H ): 150mm x 100mm x 25mm (TX/RX)
• Shipping Weight: 1.6kg
• Operating Temperature: 32°F to 104°F (-5°C to +55°C)
• Storage Temperature: -4°F to 140°F (-25°C to +70°C)

• 1 x UEX100E-TX
• 1 x UEX100E-RX
• 1 x USB-A to USB-B cable (1m)
• 1 x 24V/1.25A DC power supply
• 2 x Mounting kits
• 1 x Quick Reference Guide
