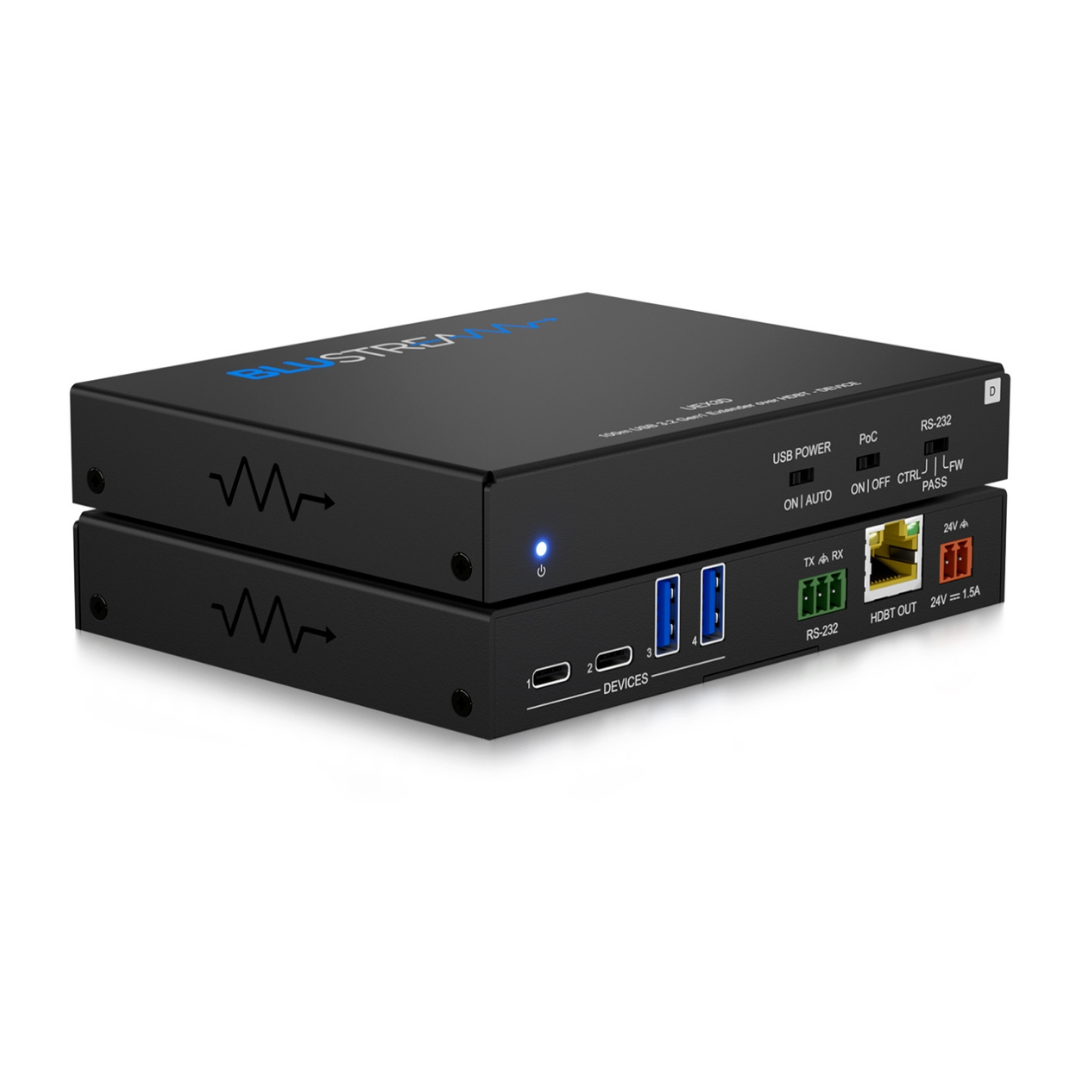

UEX3D- USB 3.2 Gen1 HDBaseT™ Extender - Device

Name: UEX3D- USB 3.2 Gen1 HDBaseT™ Extender - Device
Brand: Blustream
SKU: UEX3D
Price: 1289.76 AED
Availability: OutOfStock

Brand: Blustream

Categories: USB Cables & Extenders

SKU: UEX3D

The UEX3D is a USB Device solution utilises HDBaseT™ technology to allow for remote connectivity to a USB 3.2 Gen1 Host at distances of up to 100m over a single CAT6A cable. The UEX3D allows for 4 x USB Devices (2 x USB type A, and 2 x USB-C) to be connected to a compatible Blustream USB HDBaseT Receiver (Host) extender with support for a combined transmission data bandwidth of up to 5Gbps.

The UEX3D is backwards compatible with USB 2.0 and 1.1 devices, and utilises bi-directional Power over Cable (PoC) to power from either end of the HDBaseT link. The UEX3D is ideal for applications requiring extension of USB 3.2 Gen1 conferencing cameras, video capture devices, flash/hard drives, KVM devices, audio devices and other USB 3.2 Gen1 devices.

Product variants

Need Help:

Pairs well with

Technical Specifications

Description

Key Features

USB 3.2 Gen1 HDBaseT™ Extender supporting 2 x USB Host devices and 2 x local USB Devices
Supports USB 3.2 signal extension up to 100m over HDBaseT™ *
Backwards compatible with USB 2.0 & 1.1 devices
Combined USB3.2 Gen1 data transfer rate up to 5Gbps *
2 x USB-A & 2 x USB-C port for connection to local devices
Provides up to 3A combined power to USB devices (up to 1.7A per single USB port)
Configurable USB device power management via API commands
Bi-directional PoC (Power over Cable) to power extenders from either the host or device unit (supports 12-48V PoC)
Supports bi-directional RS-232 when used with compatible HDBaseT™ productsPoC function can be enabled/disabled via dipswitch
Simple plug and play, no driver installation or setup required

Specifications

CAT Connectors: 1 x RJ45 connector
USB Device Ports: 2 x USB Type C female, 2 x USB Type A female
Local power input: 1 x 2-Pin Phoenix connector
Firmware Upgrade: 1 x Micro-USB
RS-232: 1 x 3-Pin Phoenix connector
Power Supply: 24V/1.5A DC
Dimensions (W x D x H ): 133mm x 105mm x 22mm
Shipping Weight: 1.0kg
Operating Temperature: 32°F to 104°F (-5°C to +55°C)
Storage Temperature : -4°F to 140°F (-25°C to +70°C)

Box Contents

1 x UEX3D
1 x 24V/1.5A power supply
1 x RS-232 control cable (3-Pin to DB9)
1 x Quick Reference Card
