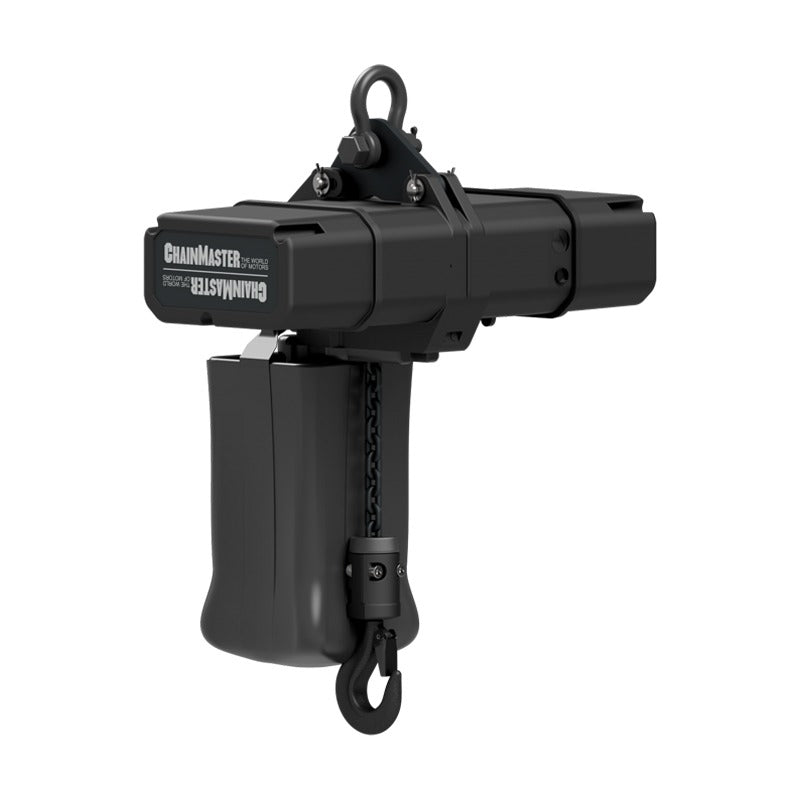

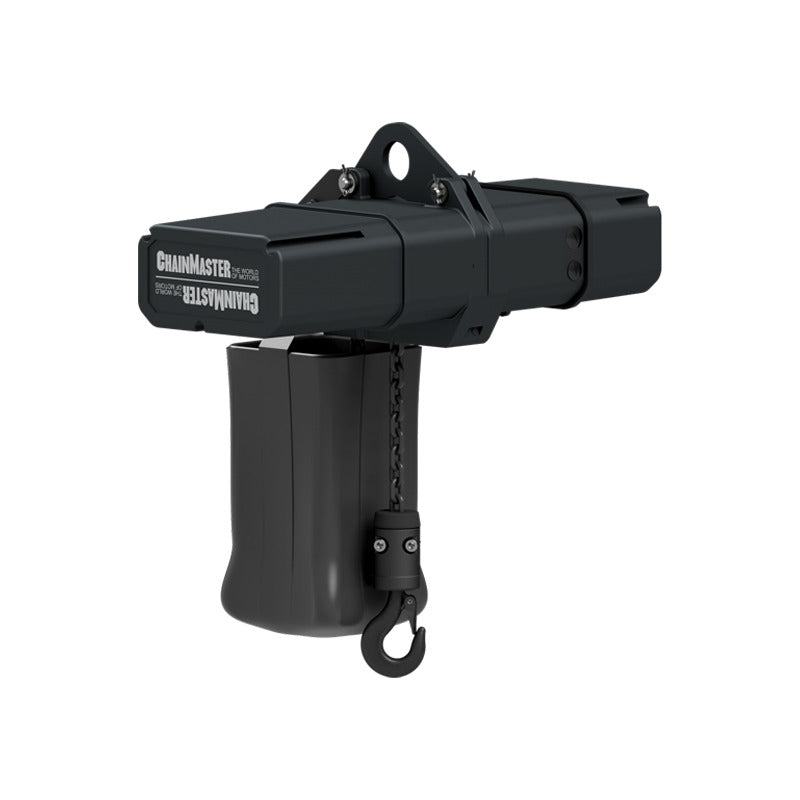

Vario-Lift – Electric Chain Hoists

SKU: CM-660500-14

Since it was first introduced in 1998 at the PLASA show in London after an eighteen-month development and testing phase, the CHAINMASTER VarioLift—at the time, the first device of its kind anywhere in the world has proved a global success. The VarioLift product series offers maximum precision at speeds of up to 42m/min and the highest degree of reproducibility of programmable motion sequences for complex stage runs in connection with our EN/IEC 61508 SIL3-certified XYZ control system. State-of-the-art closed-loop frequency converter technology, high-resolution position sensors and secure load assessment make the CHAINMASTER VarioLift a high-performance hoist.

Load Variation: 500

500
1250
2500

Chain Length: 14m

Product variants

On Demand

Need Help:

Pairs well with

Technical Specifications

Description

Programmable start and stop ramps, full torque when motionless for several minutes, change of direction without pausing, and software-programmable limit switches are just a few examples of the pioneering innovations that have shaped the market. For elaborate and complex installation or setting-up applications, we also offer a range of models with different load capacities and speeds complying with D8, D8plus and C1 to ensure reliable operation in such cases also, including use as a heavy-load hoist.

Product Features:

Capacity acc. C1
125 kg — 6000 kg
Variable Speed Control
Speed up to 42 m/min
Free progammable Start/Stop Ramps
EN 818–7 Load Chain
Low Noise Operation
5‑Pocket Chain Wheel
2 Independent DC Brakes
2 Absolute Encoders 24Bit
Integrated Load Cell
Real Closed-Loop Operation with min. IGR-8192 ppr.
Precise Chain Guide
Textil Chain Bag
Removeable Control Box
D8 / D8Plus Models on Request
Control Cabinets on Request
Integrable into Stage Control Systems
Colour black RAL 9005
